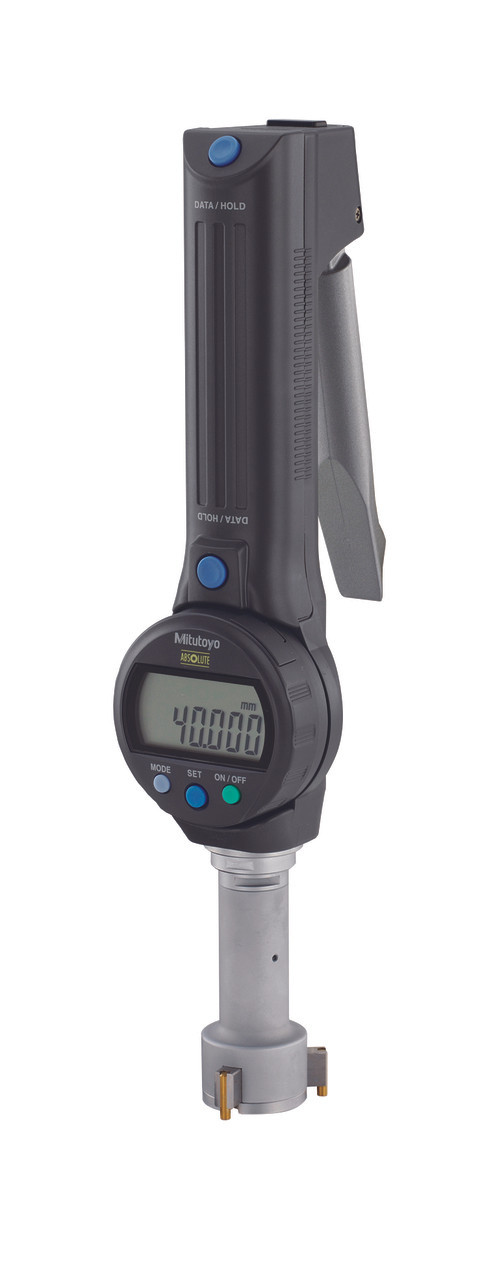

Mitutoyo 568-469 - ABSOLUTE Digimatic Snap-Open Bore Gages 1.6"

Mitutoyo 568-469 - ABSOLUTE Digimatic Snap-Open Bore Gages 1.6" - 2.0" SPC

Hover over image to zoom

Click to enlarge

Mitutoyo

RRP: ~~$2,130.00~~

$1,750.00 (You save $380.00)

SKU:

568-469

Product Description

Series 568 Features

The Borematic enables the operator to take measurements more accurately and more quickly than ever before. Once the origin point is set with the ORIGIN button, the Borematic retains the setting for the entire battery life. Therefore no longer repeated origin setting (presetting) is necessary.

TiN-coated measuring contact points provide excellent durability and impact resistance and allow the instrument to measure right to the bottom of a blind hole.
Large LCD digits of 8.5mm height for error-free reading.
330-degree rotatable display unit for easy reading at any angle.
GO/NO-GO judgment function.
The ABSOLUTE linear encoder eliminates the fear of over-speed errors.
With SPC data output.
Setting rings for origin point setting are optional.
Can measure deep holes by attaching an optional extension rod.
Measurement can be taken closer to the bottom of a blind bore.
Supplied in fitted wooden case.

Technical Data

Accuracy: Refer to the list of specifications
Resolution: 0.001mm or .00005"/0.001mm
Contact point: Carbide or titanium coating* (*over 12mm/.5" models)
Measuring method: Three-point method
Display: LCD
Battery: SR44 (1 pc.) (938882)
Battery life: Approx. 7,000 hours

Functions

Zero-Set, presetting, GO/NO-GO judgment, power on/off,
inch/mm conversion (inch/mm type only), SPC data output, data hold

Optional Accessories

905338: SPC cable (1m / 40”)
905409: SPC cable (2m / 80”)
952322: Extension rod 100mm / 3.94” For range 6-12mm / .275-.5” models
952621: Extension rod 150mm / 5.9” For range 12-20mm / .5" - .8” models
952622: Extension rod 150mm / 5.9” For range 20-50mm / .8" - 2” models
952623: Extension rod 150mm / 5.9” For range 50-300mm / 2"-12” models
