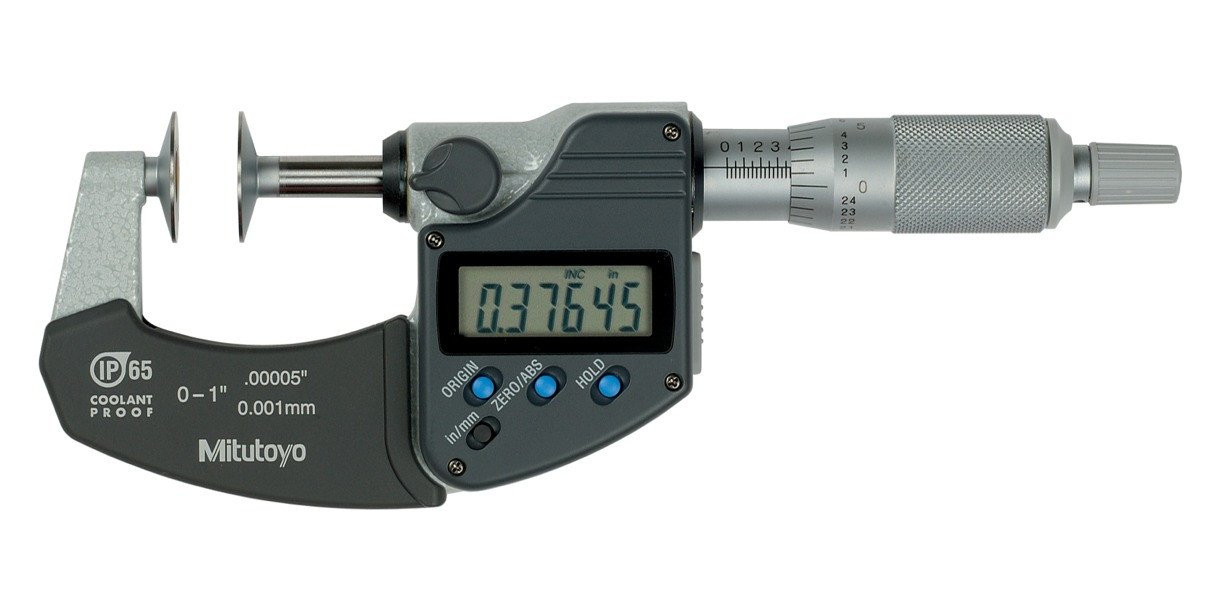

• Diameter of measuring disk: 20mm / .787”
• 0.7mm / .028” (1mm: models over 100mm) edge thickness to enter narrow recesses.
• With Ratchet Stop for constant force.
• With a standard bar except for 25mm / 0 - 1” model.
• With SPC output (Series 323).
• The Series 223 is provided with a mechanical digit counter for quick reading of measurements.
• Supplied in fitted plastic case. (Over 100mm models supplied wooden cases)



Technical Data
Accuracy: Refer to the list of specifications.
Resolution*:0.001mm or .00005"/0.001mm
Graduation**: 0.01mm or .001"
Flatness: 1µm / .00004” for models up to 100mm / 4”
1.6µm / .000063” for models over 100mm / 4“
Parallelism: 4µm / .00016” for models up to 50mm / 2”
.00024” for models up to 4”
(4+R/50)µmfor models up to 100mm
(5+R/75)µm for models over 100mm, R=max.
range (mm)
Measurable module: 0.5-6 (0.7-11: models over 100mm)
Display*: LCD
Battery*: SR44 (1 pc.), 938882
Battery life*: Approx. 1.2 years under normal use
*Digital models **Analog models

Function of Digital Model
Origin-set, Zero-setting, Data hold, Data output, inch/mm
conversion (inch/mm models)
Alarm: Low voltage, Counting value composition error

Optional Accessories for Digital Model
05CZA662: SPC cable with data switch (1m / 40”)
05CZA663: SPC cable with data switch (2m / 80”)
