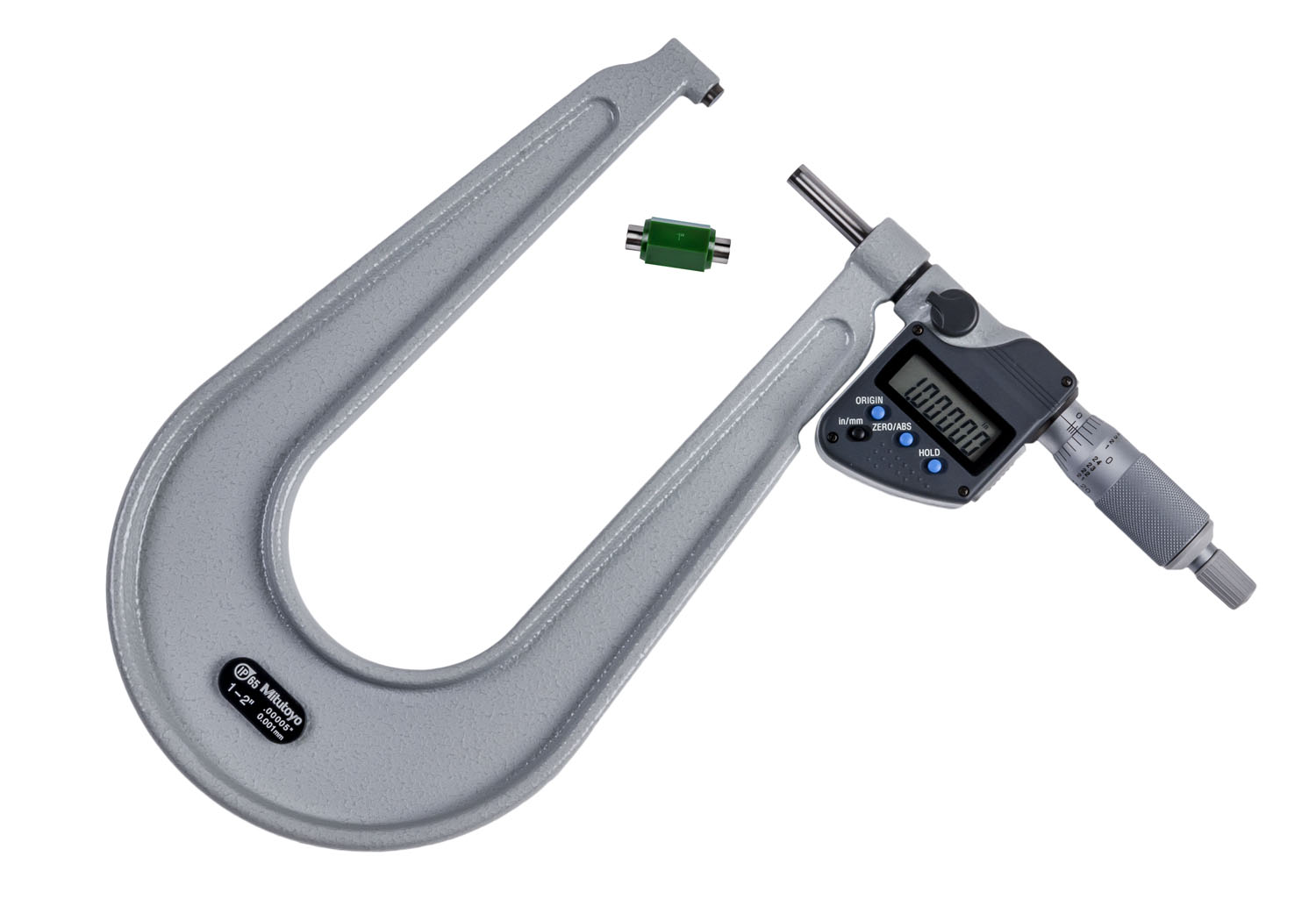

Mitutoyo - 2" Digimatic Sheet Metal Micrometers SPC IP65 389-352-30

Mitutoyo - 2" Digimatic Sheet Metal Micrometers SPC IP65 389-352-30

Hover over image to zoom

$617.00

 Product Description


Sheet Metal Micrometers-Series 389,119,118





Series 389
Features
  • Measures thickness of sheet metal, paper, plastic, and rubber parts.
  • With Ratchet Stop for constant force.
  • With a standard bar except for 0 - 25mm / 0 - 1” model.
  • IP65 water/dust protection (Series 389*). *Except for 389-513/389-713
  • Supplied in fitted plastic case.

Technical Data
Accuracy: Refer to the list of specifications.
Resolution*: 0.001mm or .00005"/0.001mm
Graduation**: 0.01mm, .001" or .0001"
Flatness: 0.6ìm / .000024” for models with 150mm / 6” throat
1ìm / .00004” for models with 300mm / 12” throat
Parallelism: 3ìm / .00012”
Measuring faces: Carbide tipped
Display*: LCD
Battery*: SR44 [1 pc. (2 pcs.: 389-513 and 389-713)],
938882
Battery life*: Approx. 1.2 years under normal use
(1.8 years: 389-513 and 389-713)
Dust/Water protection level*: IP65
*Digital models **Analog models

Function of Digital Model
Origin-set, Zero-setting, Data hold, Data output, inch/mm
conversion (inch/mm models)
Alarm: Low voltage, Counting value composition error

Optional Accessories for Digital Model
05CZA662: SPC cable with data switch (1m / 40”)
05CZA663: SPC cable with data switch (2m / 80”)
937387: SPC cable for 389-513/389-713 (1m / 40”)
965013: SPC cable for 389-513/389-713 (2m / 80”)


Parts Break Down





Inch Inch/Metric Metric
Order No Range Accur a/b Remarks
118-107 0-1in ±.00025 13in/1.38in -
118-112 1-2in ±.0002 6.5in/1.08in -
118-116 0-1in ±.0002 6.3in/1.08in Spherical anvil and flat spindle
118-120 0-1in ±.0002 6.3in/1.08in Spherical anvil and spherical spindle
118-129 0-1in ±.0002 6.3in/1.08in -
