Balax 12204-000 - 10-32 BXB PH4 Thredfloer Form Tap Plug USA **One Piece Price, Discount at 12 Ea**
Hover over image to zoom
)
Product Description

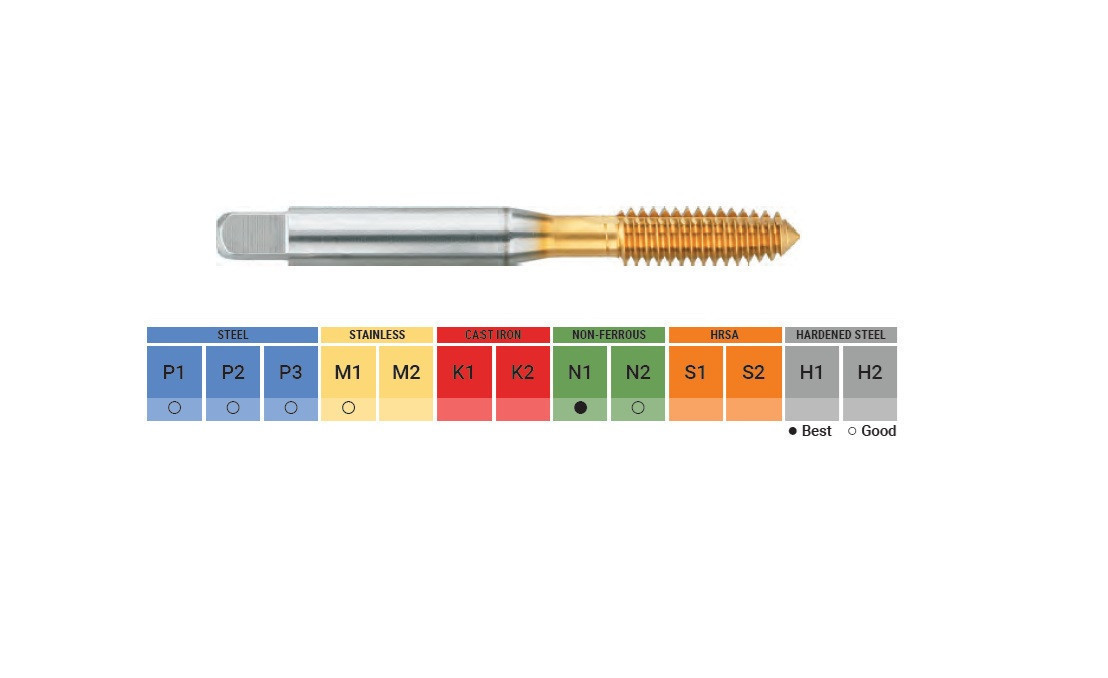

Balax 12204-000 - 10-32 BXB PH4 Thredfloer Form Tap Plug USA
BRIGHT FINISH
Specifications
| Category | Thredfloers |
| Series | PLUG |
| # of Grooves | 1 |
| Chamfer | 4 |
| Blank Name | ANSI CNC |
| Overall Length | 2-3/8 |
| Thread Length | .580 |
| Neck Length | 7/8 |
| Shank Diameter | .194 |
| Square | .152 |
| Square Length | 1/4 |
Pre-Tap Hole Sizes
| 55% Thread | 0.177 |
| 65% Thread | 0.176 |
| 75% Thread | 0.174 |
| 85% Thread | 0.173 |
Recommended Limits for 10-32 Thread
| CLASS 2B | H5, H6 |
| CLASS 3B | H3, H4 |
Possible Gage Members for 10-32 Thread
| 90160 | GO ELEMENT |
| 90162 | 2B NO GO ELEMENT |
| 90164 | 3B NO GO ELEMENT |
| 90166 | 2B SET |
| 90168 | 3B SET |
| 90590 | PRE-PLATE GO ELEMENT |
| 90591 | PRE-PLATE NO GO ELEMENT |
| 90990 | PRE-PLATE SET |
