| Order Number | Granite Base Size | Column Travel | Stem Hole | Remarks |
| 215-151-10 | 150 x 200 x 50mm | 250mm | ø8mm, ø9.53mm | With fine adjustment of 1mm range |
| 215-153-10 | 200 x 250 x 80mm | 260mm | ø8mm, ø9.53mm | With fine adjustment of 1mm range |
| 215-156-10 | 300 x 250 x 80mm | 275mm | ø8mm, ø9.53mm, ø20mm | With fine adjustment over the entire travel |
Loading... Please wait...- Questions? Call direct 715-542-1005
- Gift Certificates
- My Account
- Home
- Mitutoyo
- Stands, Mag stands & Holders etc
- Mitutoyo - Granite Comparator Stands With fine adjustment of 1mm range 215-156-10 Free Shipping
Categories
Related Products
Mitutoyo - Granite Comparator Stands With fine adjustment of 1mm range 215-156-10 Free Shipping
Hover over image to zoom
Product Description

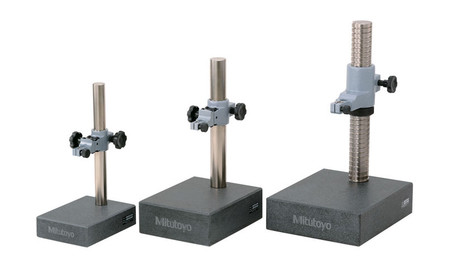

Granite Comparator Stands- Series 215
Series 215
Features
Mitutoyo's Granite Comparator Stands are basic building-blocks for the assembly of special-purpose, precision measuring equipment. By mounting precision measuring instruments such as Digimatic indicators, Mu-Checker Cartridge Heads, and Linear Gages onto the stands, it is possible to handle all manner of measuring applications. The rigid granite base is free from burrs, pileups, rust, and deterioration over time.
Optional Accessories
21JAA329:ø8mm bush
21JAA330:ø9.53mm bush
21JAA331:ø15mm bush
only available for 215-156-10
Optional Accessories
21JAA329:ø8mm bush
21JAA330:ø9.53mm bush
21JAA331:ø15mm bush
only available for 215-156-10
| Parts Break Down |
