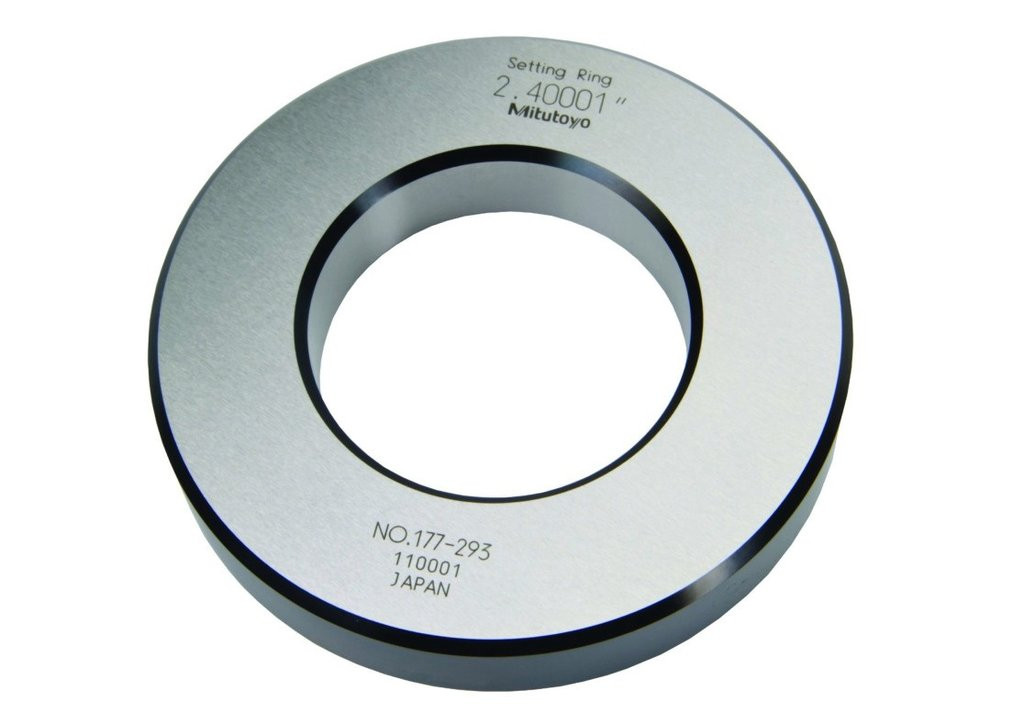

Mitutoyo - ACCESSORY: Setting Ring 2.4" 177-293

Mitutoyo - ACCESSORY: Setting Ring 2.4" 177-293
Image 1

Hover over image to zoom

Click to enlarge
$396.00

 Product Description










Setting Ring Series 177-Accessories for Inside Micrometers,Holtest and Dial Bore Gages

Series 177
Features
• Used for quick and accurate setting of dial bore gages, Holtest and inside micrometers.
• If a setting ring of an optimal size is prepared, it can be used for calibration.

Parts Break Down




line drawings

Inch Metric
Order No Size Accuracy Outside DIA Ring Width
177-179 .35in ±.00006in 1.26in .39in
177-180 .50in ±.00006in 1.26in .39in
177-181 .60in ±.00006in 1.5in .39in
177-182 .65in ±.00006in 1.77in .39in
177-183 .70in ±.00006in 1.77in .39in
177-184 1in ±.00006in 2.09in .59in
177-185 1.4in ±.00006in 2.8in .59in
177-186 1.8in ±.00006in 3.35in .59in
177-187 2in ±.00006in 3.35in .79in
177-188 2.8in ±.00006in 4.41in .79in
177-189 3.6in ±.00006in 5.51in .98in
177-206 .16in ±.00006in .98in .28in
177-207 .24in ±.00006in .98in .28in
177-209 .1in ±.00006in .98in .28in
177-281 .275in ±.00006in .98in .28in
177-283 .425in ±.00006in 1.26in .39in
177-287 .80in ±.00006in 1.77in .39in
177-289 1.2in ±.00006in 2.8in .59in
177-291 1.6in ±.00006in 2.8in .59in
177-293 2.4in ±.00006in 4.41in .79in
177-295 3.2in ±.00006in 4.92in .98in
177-297 4in ±.00006in 6.3in .98in
177-299 5in ±.00010in 8.27in 1.5in
177-301 6in ±.00010in 9.25in 1.5in
177-303 7in ±.00010in 10.24in 1.5in
177-305 8in ±.00010in 12.24in 1.5in
177-307 9in ±.00010in 13.27in 1.5in
177-309 10in ±.00010in 14.25in 1.5in
177-311 11in ±.00010in 16.26in 1.5in
177-313 12in ±.00010in 17.24in 1.5in
177-315 2.5in ±.00006in 4.41in .79in
177-317 3in ±.00006in 4.92in .98in
177-319 3.5in ±.00006in 5.51in .98in
Pages: 1
line drawings
