• IP65 water/dust protection(Series 326).
• 60 degree or 55 degree V-anvil andconicalspindle(interchangeable)are optional,which are made of high-grade steel,hardened and precision ground.
• With Ratchet Stop for constant force.
• With SPC output (Series 326)
• With a standard bar except 0-25mm
  0-1 in model

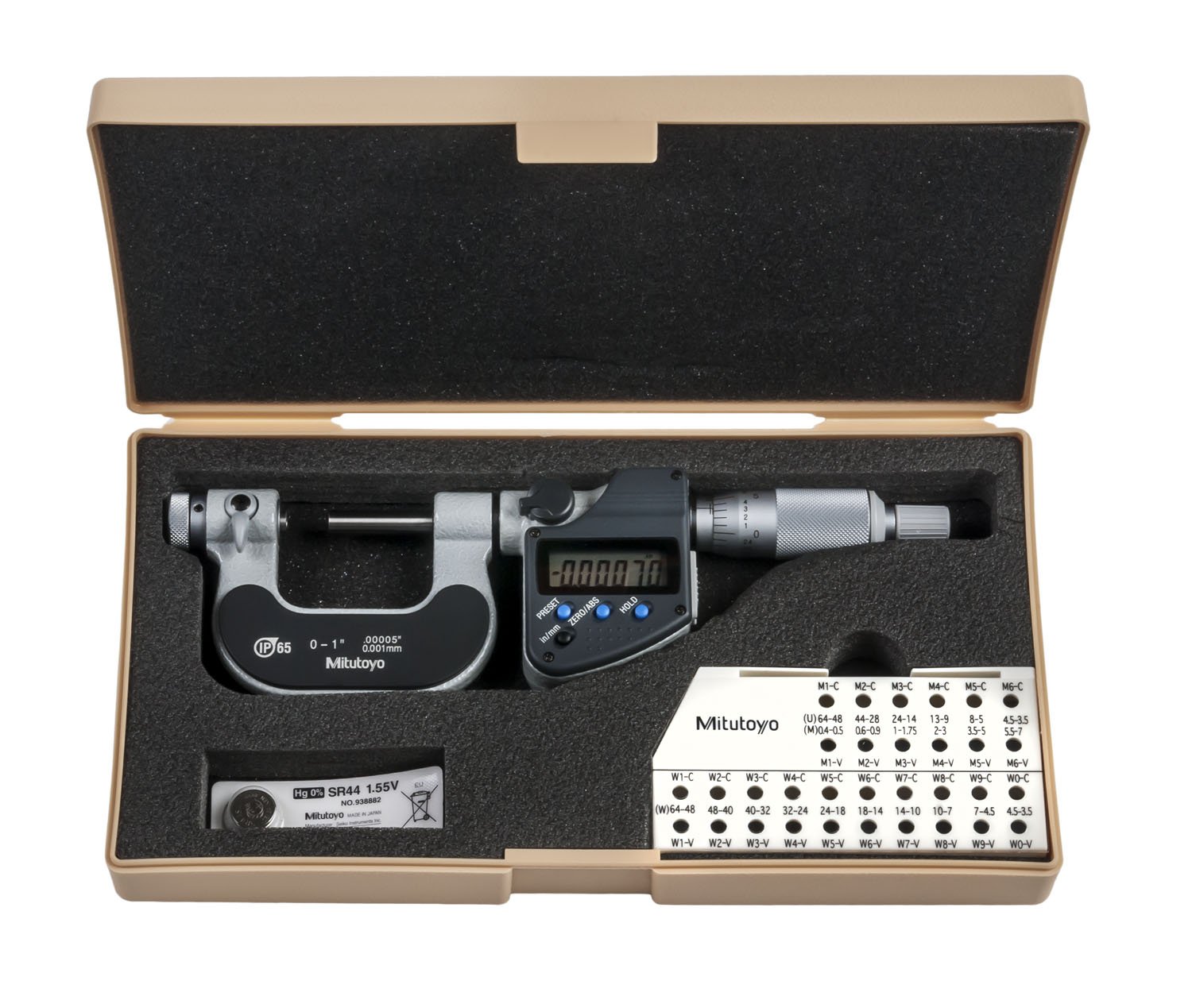

• Suplied in fitted plastic case.



Technical Data

Resolution*:0.001mm or .00005"/0.001mm
Graduation**:0.01mm or .001"
Spindle feed error: 3µm/.00012”
Display*: LCD
Battery*: SR44 (1 pc.), 938882
Battery life*: Approx. 1.2 years under normal use
Dust/Water protection level*: IP65
*Digital models **Analog models

---

Function of Digital Model
Zero-setting, Data hold, Data output, 2 Presets, Function lock.
inch/mm conversion (inch/mm models)
Alarm: Low voltage, Counting value composition error

---

Optional Accessories

05CZA662: SPC cable with data switch (1m/40”)*
05CZA663: SPC cable with data switch (2m/80”)*
*Only for digital models
