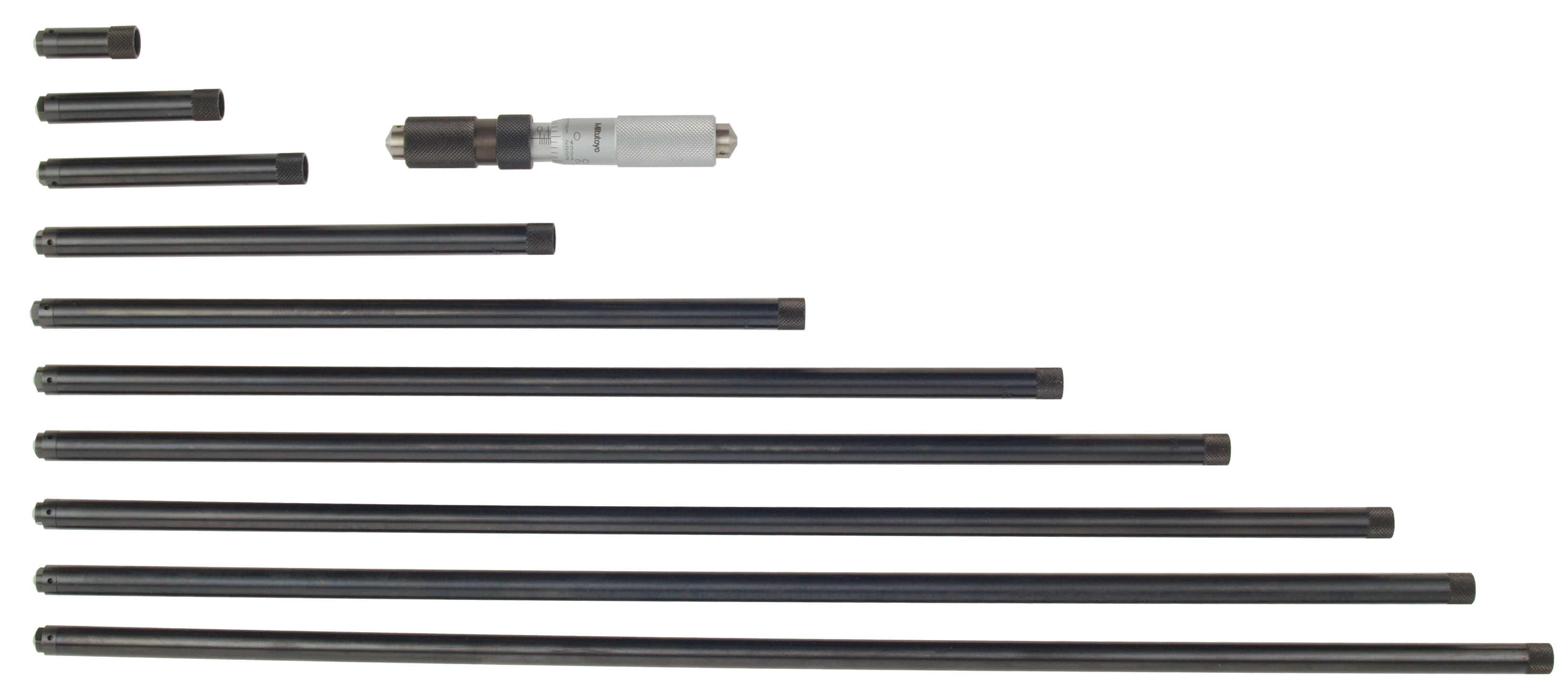

Mitutoyo - 4-40"/.001 Tubular Inside Micrometers Series 137 Extension Rods 139-202

Mitutoyo - 4-40"/.001 Tubular Inside Micrometers Series 137 Extension Rods 139-202
Image 1

Hover over image to zoom

Click to enlarge
RRP: $407.00
$359.00 (You save $48.00)

 Product Description

Tubular Inside Micrometers Series 137-Extension Rod Type,Series 139-Extension Pipe type,Series 140-Extension Pipe Type





Series 137
Features
  • Wide range of ID measurements by combining extension rods (pipes) and anvils with the micrometer head.
  • Carbide-tipped measuring faces are available. (series 137)
  • The 139 and 140 series use highly-durable/ large-diameter extension pipes.
  • Series 137 supplid in fitted plastic case except 1550mm/60in come in wooden case.
  • Series 139 supplied in fitted wooden case except 500mm/20in come in plastic case.
  • Series 140 supplied in fitted wooden case.


Technical Data
Accuracy:  ±(.00012+.00005n+(.00004×R/2))in
Graduation: 0.01mm or .001"
*with carbide tipped face

Parts Break Down



line drawings

Inch Metric
Order No Image Range Extension Rods Head Travel
137-012 137-012.jpg 2-2.5in - .5in
137-014* - 2-2.5in - .5in
137-211 137-211.jpg 2-6in .5,1,2 in .5in
137-212 137-212.jpg 2-12in .5,1,2 (2pcs.),4 in .5in
137-213 - 2-20in .5,1,2 (2pcs.),4,8 in .5in
137-214 - 2-40in .5,1,2 (2pcs.),4,8,(2pcs),12 in .5in
137-215 137-215.jpg 2-60in .5,1,2 (2pcs.),4,8,(3pcs),12(2pcs) in .5in
137-216* - 2-6in .5,1,2 in .5in
137-217* - 2-12in .5,1,2 (2pcs.),4 in .5in
137-218* 137-218_Partial.jpg 2-20in .5,1,2 (2pcs.),4,8 in .5in
137-219* 137-219_Partial.jpg 2-40in .5,1,2 (2pcs.),4,8,(2pcs),12 in .5in
137-220* 137-220.jpg 2-60in .5,1,2 (2pcs.),4,8,(3pcs),12(2pcs) in .5in
139-002 - 4-5in - 1in
139-178 139-178.jpg 4-20in 1,2,4,8 in 1in
139-179 139-179.jpg 4-36in 1,2,4,8,16 in 1in
139-180 139-180.jpg 4-52in 1,2,4,8,16 (2 pcs) in 1in
139-181 139-181.jpg 4-68in 1,2,4,8,16 (3 pcs) in 1in
139-182 139-182.jpg 4-84in 1,2,4,8,16 (4 pcs) in 1in
140-161 - 40-80in 2,4 (2pcs),8,20 in 2in
140-162 140-162_Box.jpg 40-120in 2,4, (2 pcs) 8,20,40 in 2in
140-163 - 40-160in 2,4, (2 pcs) 8,20,40 (2 pcs) in 2in
140-164 140-164_Box.jpg 40-200in 2,4, (2 pcs) 8,20,40 (3 pcs) in 2in
