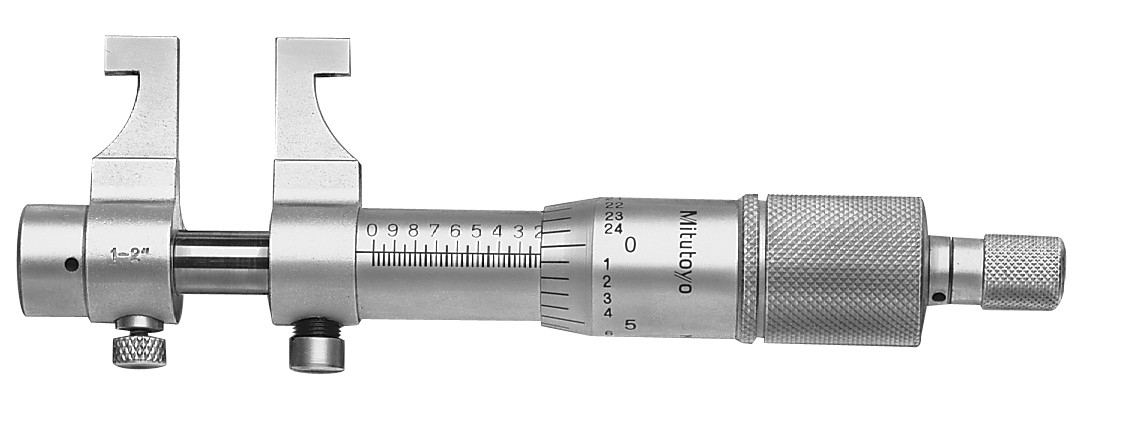

• Caliper type jaws are made of high-grade, tool steel.
• Locking clamp for positive locking of spindle.
• Satin-chrome finished.
• A special holder is available to be used with Mitutoyo Micrometer Stand.



Technical Data
Accuracy: Refer to the list of specifications.
(excluding quantizing error for digital models)
Resolution*: 0.01mm or .00005"/0.001mm
Graduation**: 0.01mm or .001"
Measuring faces: Carbide tipped
Display*: LCD
Battery*: SR44 (1 pc.),938882
Battery life*: Approx. 1.2 years under normal use
*Digital models **Analog models

---

Function of Digital Model

Origin-set, Zero-setting, Data hold, Data output, inch/mm conversion (inch/mm models)
Alarm: Low voltage, Counting value composition error
Function Lock
2 Presets

---

Optional Accessory
05CZA662: SPC cable with data switch (1m)
05CZA663: SPC cable with data switch (2m)
300401: Cap for stand holder
300400: Stand holder

---

Parts Break Down
