Mitutoyo 950-318- Digital Protractor Series 950 Series Pro 3600 SPC

Mitutoyo 950-318- Digital Protractor Series 950 Series Pro 3600 SPC

Hover over image to zoom

$447.75
SKU:
950-318

 Product Description

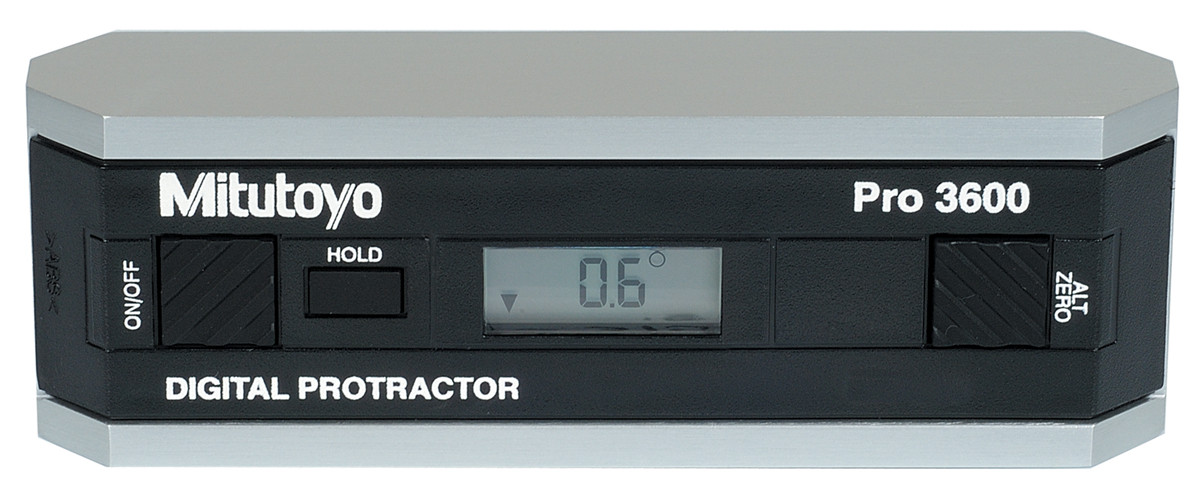

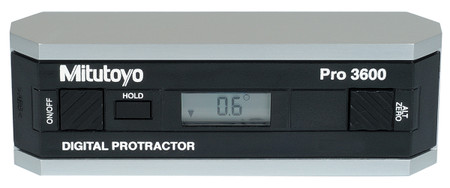

Digital Protractor Series 950 -Pro 360 Pro 3600

Series 950
Features
      These Digital Protractors present inclination values on an easy-to-read liquid crystal display. The measurements are generated by an electronic gravity sensor and processed by the latest low-power electronic circuit technology.

      Feature

  • Full 360° range (90° x 4).
  • Machined aluminum frame.
  • Alternate reference (zero).
  • Reading hold.
  • Simple calibration requiring no special fixtures.
  • Display remains upright to view at all angles.(950-317, Pro 360 Model).
  • RS232C output. (950-318 Pro 3600 Model).

Optional Accessories

50AAA983A RS-232C Output cable w/foot switch

Parts Break Down

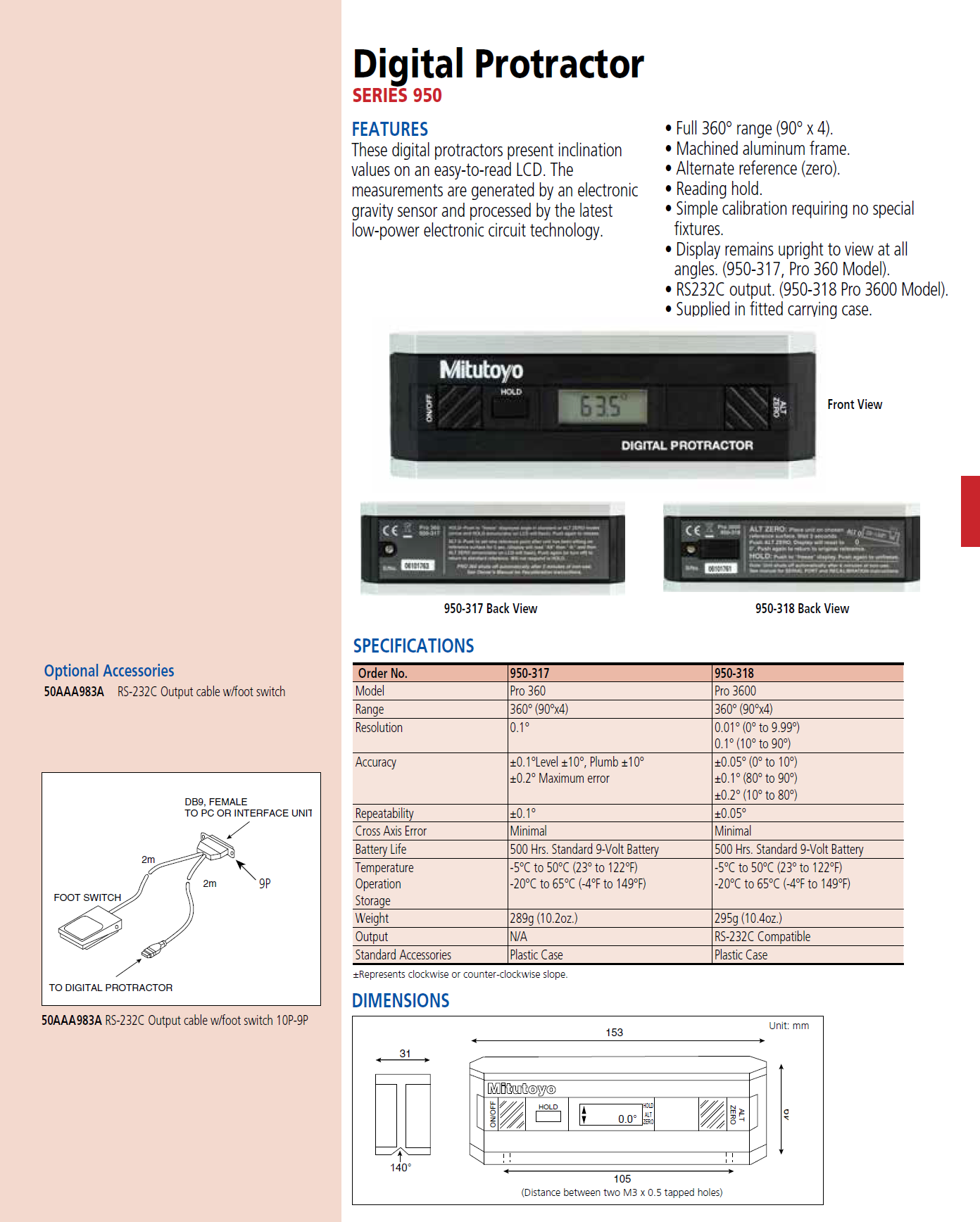

Specifications
Order No Model Accuracy Battery Life Cross Axis Error Output Repeatability Resolution Storage Temperature Weight Operating Temperature
950-317 Pro 360 ±0.1° Level ±10°, Plumb ±10°, ±0.2° Maximum error 500 Hrs. Standard 9-Volt Battery Minimal N/A ±0.1° 0.1° -20-65°C -4-149°F 289g 10.2oz -5-50°C 23-122°F
950-318 Pro 3600 0.05° (0° to 10°), 0.1° (80° to 90°), 0.2° (10° to 80°) 500 Hrs. Standard 9-Volt Battery Minimal RS-232C Compatible ±0.05° 0.01° (0° to 9.99°), 0.1° (10° to 90°)° -20-65°C -4-149°F 295g 10.4oz -5-50°C 23-122°F
