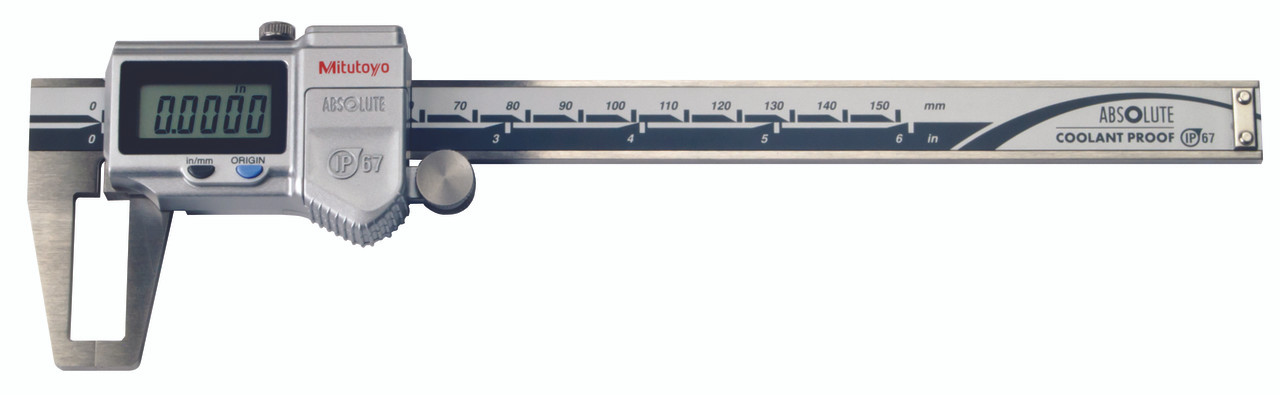

Series 573
Features
- Point jaw type can measure wall thickness inside bores and recesses.
- Flat jaw type can measure grooves and recesses.
- With SPC data output. (Series 573)
- Supplied in fitted plastic case.
Technical Data Accuracy: Refer to the list of specifications.
Resolution*: 0.01mm or .0005"/0.01mm
Graduation**: 0.05mm
Display*: LCD
Length standard*: ABSOLUTE electrostatic capacitance type linear encoder
Max. response speed*: Unlimited
Battery*: SR44 (1 pc.),
938882 Battery life*: Approx. 3.5 years under normal use
*Digital models **Analog models
Function of Digital Model Origin-set, Zero-setting, Power On/Off, Data output, inch/mm conversion (inch/mm models)
Alarm: Low voltage, Counting value composition error
Optional Accessories for Digital Model 05CZA624: SPC cable with data switch (40” / 1m)
05CZA625: SPC cable with data switch (80” / 2m)
