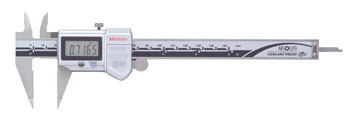

• Narrow tip jaws fit into very small grooves and tracks, making many previously difficult outside measurements far easier to obtain. With depth bar.
• With SPC data output. (Series 573)
• Supplied in fitted plastic case.

Technical Data

Accuracy: Refer to the list of specifications.
Resolution*: 0.01mm or .0005"/0.01mm
Graduation**: 0.05mm
Display*: LCD
Length standard*: ABSOLUTE electrostatic capacitance type linear encoder
Max. response speed*: Unlimited
Battery*: SR44 (1 pc.), 938882
Battery life*: Approx. 3.5 years under normal use
*Digital models **Analog models

---

Function of Digital Model

Origin-set, Zero-setting, Power On/Off, Data output, inch/mm conversion (inch/mm models)
Alarm: Low voltage, Counting value composition error

---

Optional Accessories for Digital Model
05CZA624: SPC cable with data switch (1m / 40”)
05CZA625: SPC cable with data switch (2m / 80”)
