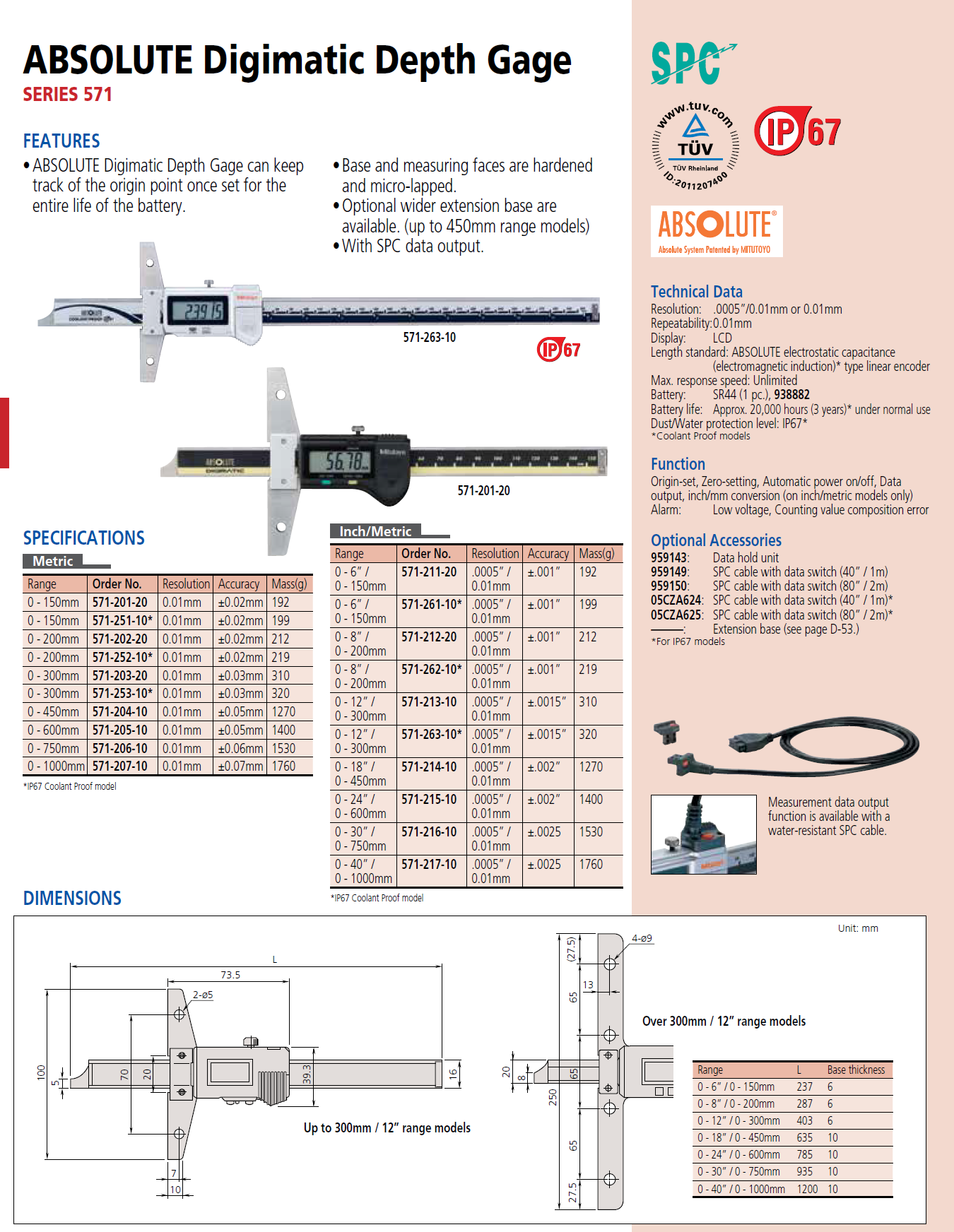

The Mitutoyo ABSOLUTE Digimatic hook end depth gage features a main scale with a hook-shaped end to measure the thickness of projections and lips in a hole or recess, as well as normal depth measurements. The depth gage is constructed of hardened stainless steel, and its measuring faces and base are micro-lapped for improved accuracy and wear resistance. The depth gage scale is IP67 rated for exceptional coolant-proof capabilities, making it ideal for use on the shop floor.

• Available in Inch/Metric models
• Optional wider extension bases are available (up to 450mm range models)
• Convenient mounting holes included on the base for repeatable accuracy
• Keeps track of the origin point for the life of the battery
• 20,000 Hour battery life under normal conditions
• SPC output function with optional water-resistant SPC cable allows for quick and easy data management in real time
• ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on; overspeed errors are also eliminated
• Functions include Origin Set, Zero Setting, Automatic Power On/Off and inch/mm conversion (on inch/metric models only)
• Alarm: Low Voltage, Counting Value Composition Error
• Constructed of hardened stainless steel for better durability and longevity
• IP67 protection eliminates dust ingress, protects against temporary water submersion; permits use in environments exposed to cutting oil, dust, etc.
• Unnecessary to wipe or clean the scale
• Supplied with a fitted plastic case
