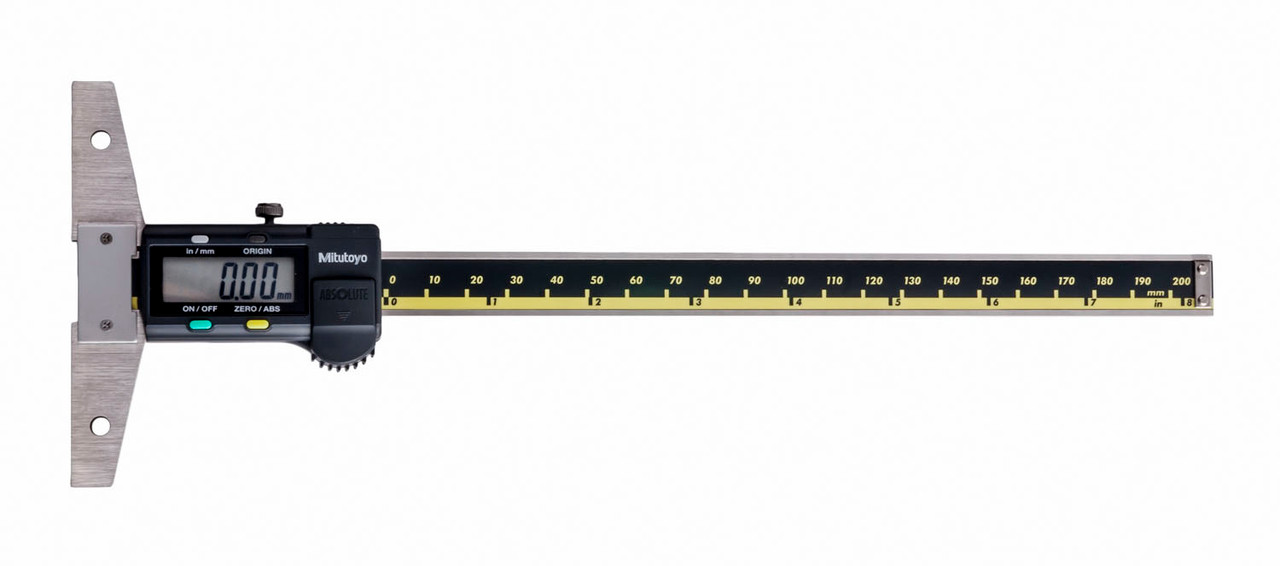

• ABSOLUTE Digimatic Depth Gage can keep track of the origin point once set for the entire life of the battery.
• Base and measuring faces are hardened and micro-lapped.
• Optional wider extension base are available. (up to 450mm range models)
• With SPC data output.

Technical Data
Resolution: 0.01mm or .0005"/0.01mm
Repeatability: 0.01mm
Display: LCD
Length standard: ABSOLUTE electrostatic capacitance
(electromagnetic induction)* type linear encoder
Max. response speed: Unlimited
Battery: SR44 (1 pc.), 938882
Battery life: Approx. 20,000 hours (3 years)* under normal use
Dust/Water protection level: IP67*
*Coolant Proof models

Function
Origin-set, Zero-setting, Automatic power on/off, Data output, inch/mm conversion (inch/mm models)
Alarm: Low voltage, Counting value composition error

Optional Accessories
959143: Data hold unit
959149: SPC cable with data switch (40” / 1m)
959150: SPC cable with data switch (80” / 2m)
05CZA624: SPC cable with data switch (40” / 1m)*
05CZA625: SPC cable with data switch (80” / 2m)*
