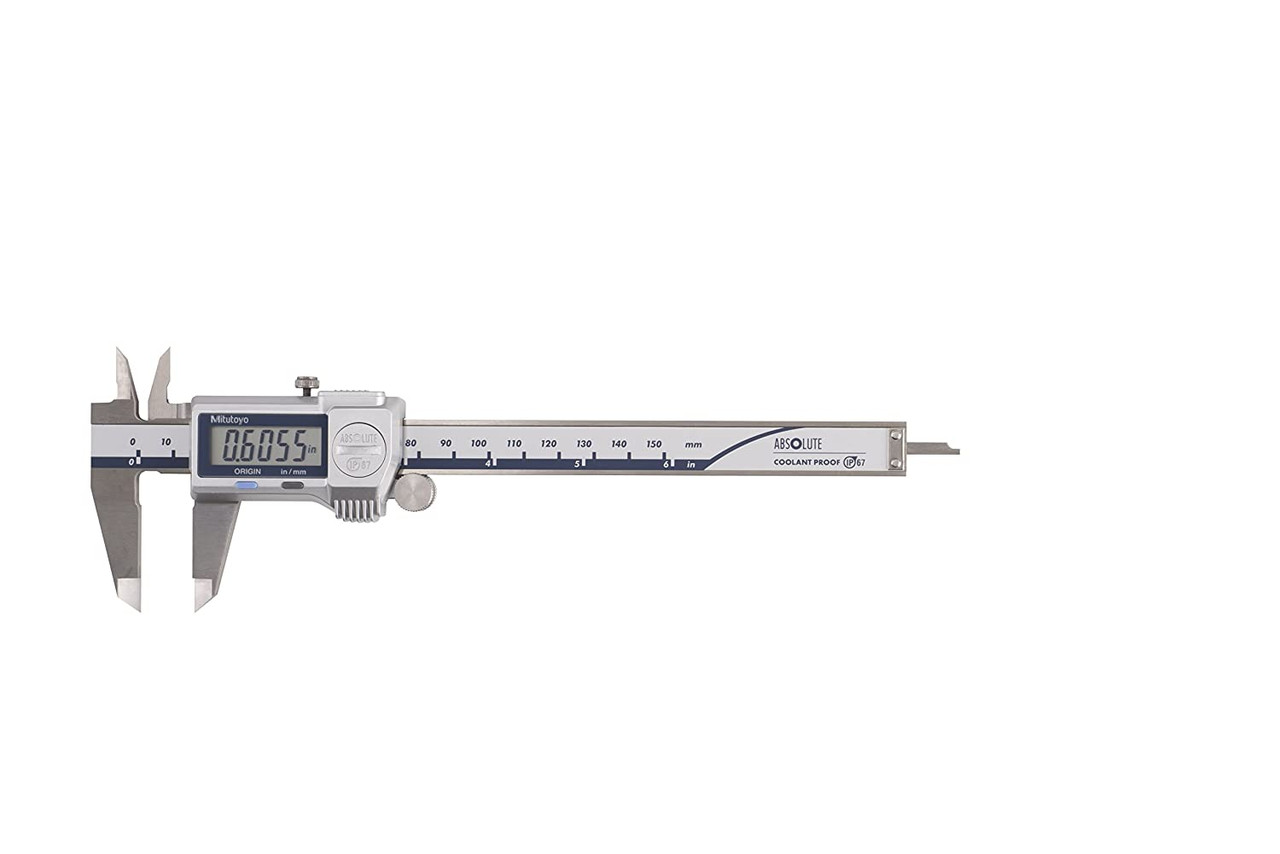

Mitutoyo 500-762-20 - 6" ABSOLUTE Digimatic Caliper w SPC, IP67 Coolant Proof

Mitutoyo 500-762-20 - 6" ABSOLUTE Digimatic Caliper w SPC, IP67 Coolant Proof
Image 1

Hover over image to zoom

Click to enlarge
$259.00
SKU:
500-762-20

 Product Description


Product image

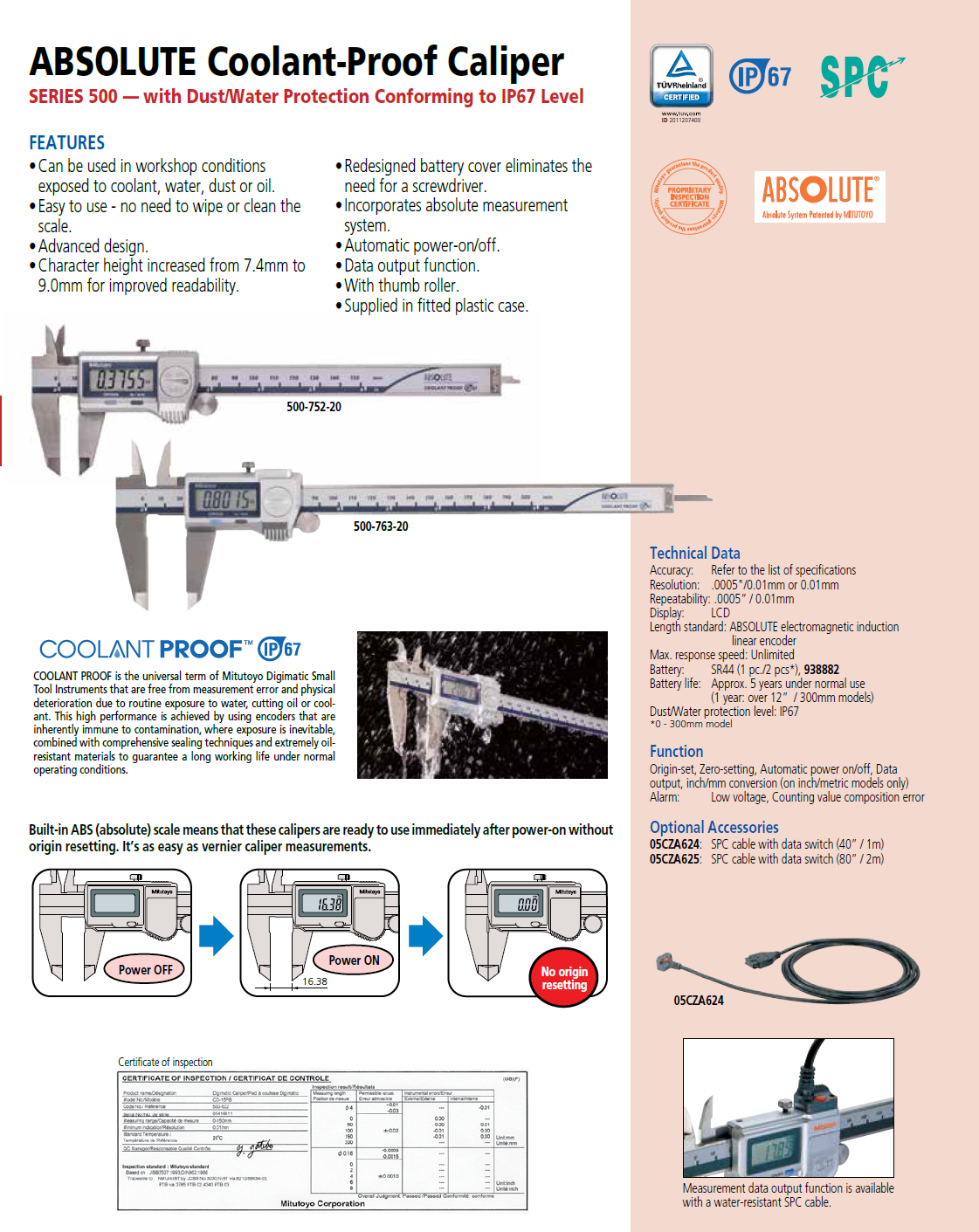

ABSOLUTE Coolant Proof Caliper Series 500 with Dust/Water Protection Conforming to IP67 Level





Series 500
Features
  • Can be used in workshop conditions exposed to coolant, water, dust or oil.
  • Easy to use - no need to wipe or clean the scale.
  • Advanced design styling.
  • Incorporates absolute measurement system.
  • Automatic power-on/off.
  • Data output function.
  • With thumb roller.
  • Supplied in fitted plastic case.
Technical Data
Resolution: 0.01mm or .0005"/0.01mm
Repeatability: 0.01mm / .0005”
Display: LCD
Length standard: ABSOLUTE electromagnetic induction
linear encoder
Max. response speed: Unlimited
Battery: SR44 (1 pc./2 pcs*), 938882
Battery life: Approx. 5 years under normal use
(1 year: over 300mm / 12” models)
Dust/Water protection level:IP67
0 - 300mm model

Function
Origin-set, Zero-setting, Automatic power on/off, Data
output, inch/mm conversion (inch/mm models)
Alarm: Low voltage, Counting value composition error

Optional Accessories
05CZA624: SPC cable with data switch (1m / 40”)
05CZA625: SPC cable with data switch (2m / 80”)

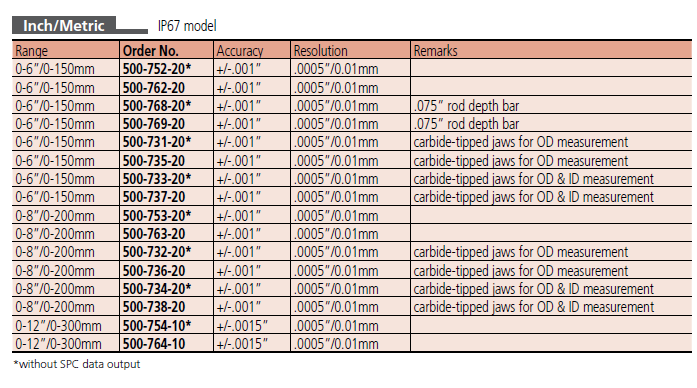

Parts Break Down

Inch/Metric Metric
Order No Image Range LCD Res Accuracy Type Remarks
500-752-20* 500-752-10.jpg 0-6in 0-150mm .0005in 0.01mm ±.001in IP67 model
without SPC data output		 -
500-762-20 500-762-10.jpg 0-6in 0-150mm .0005in 0.01mm ±.001in IP67 model -
500-768-20* 500-768-10.jpg 0-6in 0-150mm .0005in 0.01mm ±.001in IP67
without SPC data output		 .075in rod depth bar
500-769-20 500-769-10.jpg 0-6in 0-150mm .0005in 0.01mm ±.001in - .075in rod depth bar
500-731-20* 500-731-10.jpg 0-6in 0-150mm .0005in 0.01mm ±.001in IP67
without SPC data output		 carbide-tipped jaws for OD measurement
500-735-20 500-735-10.jpg 0-6in 0-150mm .0005in 0.01mm ±.001in - carbide-tipped jaws for OD measurement
500-733-20* 500-733-10.jpg 0-6in 0-150mm .0005in 0.01mm ±.001in IP67
without SPC data output		 Carbide-tipped jaws for OD & ID measurement
500-737-20 500-737-10.jpg 0-6in 0-150mm .0005in 0.01mm ±.001in - Carbide-tipped jaws for OD & ID measurement
500-753-20* 500-753-10.jpg 0-8in 0-200mm .0005in 0.01mm ±.001in IP67 model
without SPC data output		 -
500-763-20 500-763-10.jpg 0-8in 0-200mm .0005in 0.01mm ±.001in IP67 model -
500-732-20* 500-732-10.jpg 0-8in 0-200mm .0005in 0.01mm ±.001in IP67
without SPC data output		 carbide-tipped jaws for OD measurement
500-736-20 500-736-10.jpg 0-8in 0-200mm .0005in 0.01mm ±.001in - carbide-tipped jaws for OD measurement
500-734-20* 500-734-10.jpg 0-8in 0-200mm .0005in 0.01mm ±.001in IP67
without SPC data output		 Carbide-tipped jaws for OD & ID measurement
500-738-20 500-738-10.jpg 0-8in 0-200mm .0005in 0.01mm ±.001in - Carbide-tipped jaws for OD & ID measurement
500-754-10* 500-754-10.jpg 0-12in 0-300mm .0005in 0.01mm ±.0015in IP67 model
without SPC data output		 -
500-764-10 500-764-10.jpg 0-12in 0-300mm .0005in 0.01mm ±.0015in IP67 model with SPC output
