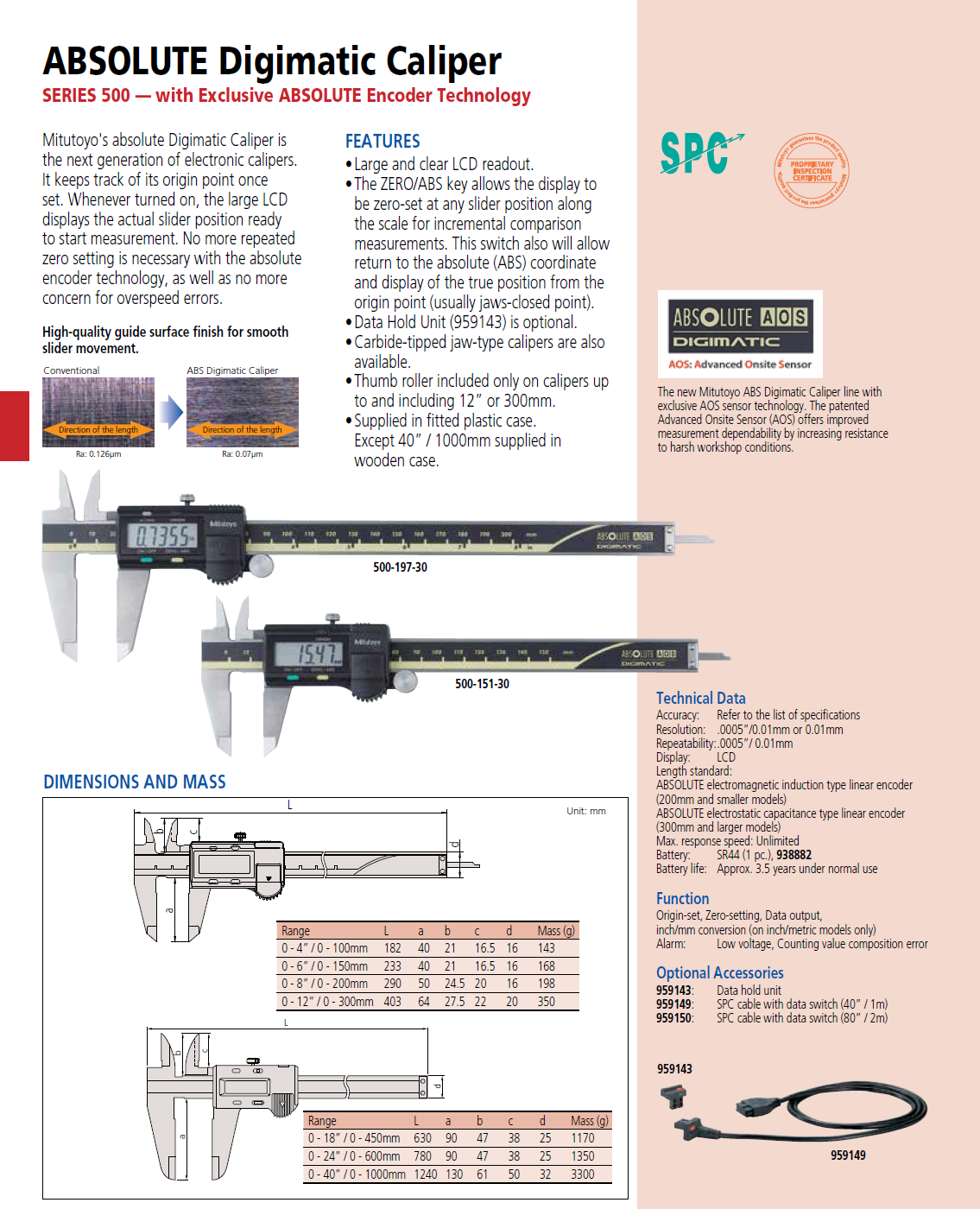

ABSOLUTE Digimatic Caliper Series 500-with Exclusive ABSOLUTE Encode Technology
Mitutoyo 500-196-30 - 6" ABSOLUTE AOS Digimatic Caliper CD-6ASX
Series 500 Features
Mitutoyo's absolute Digimatic Caliper is the next generation of electronic calipers. It keeps track of its origin point once set. Whenever turned on, the large LCD displays the actual slider position ready to start measurement. No more repeated zero setting is necessary with the absolute encoder technology, as well as no more concern for over speed errors.
Large and clear LCD readout.
The ZERO/ABS key allows the display to be Zero-Set at any slider position along the scale for incremental comparison measurements. This switch will also allow return to the absolute (ABS) coordinate and display of the true position from the origin point (usually jaws-closed point).
Data Hold Unit (959143) is optional.
Carbide-tipped jaw type calipers are also available.
With thumb roller. Except 500-500-10, 500-501-10,500-502-10.
Supplied in fitted plastic case. Except 1000mm / 40” supplied in wooden case.

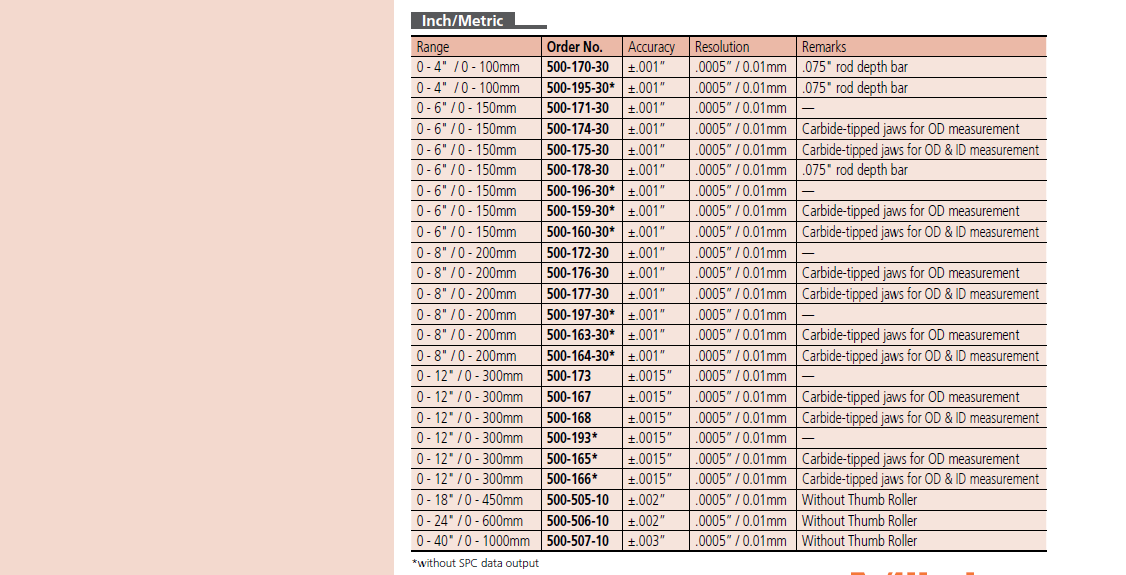

Accuracy: Refer to the list of specifications Resolution: 0.01mm or .0005"/0.01mm Repeatability: 0.01mm / .0005” Display: LCD Length standard: ABSOLUTE electrostatic capacitance type linear encoder Max. response speed: Unlimited Battery: SR44 (1 pc.), 938882 Battery life: Approx. 3.5 years under normal use
Function Origin-set, Zero-setting, Data output, inch/mm conversion (inch/mm models ONLY) Alarm: Low voltage, Counting value composition error Optional Accessories
959143: Data hold unit 959149: SPC cable with data switch (1m / 40”) 959150: SPC cable with data switch (2m / 80”) *without SPC data output
