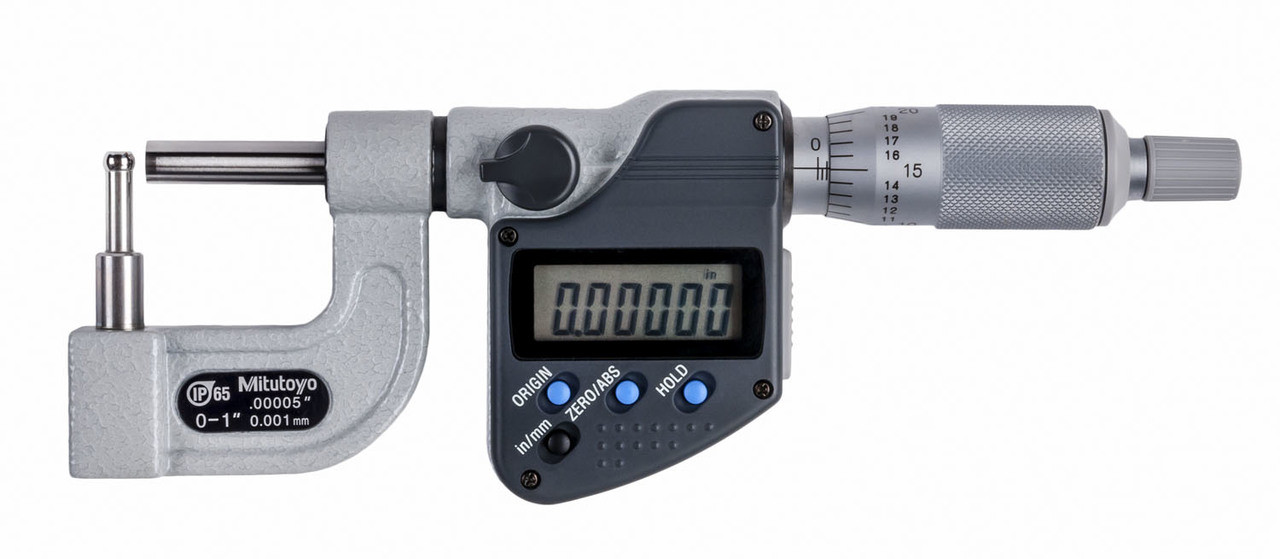

Mitutoyo 395-363-30 - 0-1" Digimatic Tube Micrometers, SPC IP65 w / Certification
Hover over image to zoom
![Pin It](http://pinterest.com/pin/create/button/?url=https://cuttingtoolsolutions.us/mitutoyo-395-363-30-0-1-digimatic-tube-micrometers-spc-ip65-w-certification/&media=https://cdn10.bigcommerce.com/s-xfwah5btob/products/29240/images/5909/395-363-30__34714.1553578749.1280.1280.JPG?c=2&description=Cutting Tool Solutions - Mitutoyo 395-363-30 - 0-1" Digimatic Tube Micrometers, SPC IP65 w / Certification, $470.00 (https://cuttingtoolsolutions.us/mitutoyo-395-363-30-0-1-digimatic-tube-micrometers-spc-ip65-w-certification/))
Product Description
Tube Micrometers - Series 395
Series 395
Features
- IP65 water/dust protection (Series 395).
- Designed to measure the wall thickness of various tubing.
- The Tube Micrometers have two combinations of measuring faces (carbidetipped): spherical-flat type.
- Cylindrical anvils (perpendicular) are also available.
- With Ratchet Stop for constant force.
- With SPC output (Series 395).
- With digit counter (Series 295).
- With a standard bar except 0-25mm and 0-1” model.
- Supplied in fitted plastic case.
Accuracy: Refer to the list of specifications.
Resolution*: 0.001mm or .00005"/0.001mm
Graduation**: 0.01mm, .001" or .0001"
Flatness: 0.6ìm / .000024”
Display*: LCD
Battery*: SR44 (1 pc.), 938882
Battery life*: Approx. 1.2 years under normal use
Dust/Water protection level*: IP65
*Digital models **Analog models
Function of Digital Model
Origin-set, Zero-setting, Data hold, Data output, inch/mm
conversion (inch/mm models)
Alarm: Low voltage, Counting value composition error
Optional Accessories for Digital Model
05CZA662: SPC cable with data switch (1m / 40”)
05CZA663: SPC cable with data switch (2m / 80”)
| Parts Break Down |
| Order No | Image | Range | Accuracy | Column1 | Remarks. | Mass |
| 395-362-30 | - | 0-1in 0-25.4 | ±.00015in | Type B | Digital model with cylindrical anvil | 270g |
| 395-363-30 |  |
0-1in 0-25.4 | ±.00015in | Type C | Digital model with cylindrical anvil | 310g |
| 395-364-30 |  |
0-1in 0-25.4 | ±.00015in | Type D | Digital model with cylindrical anvil | 310g |
