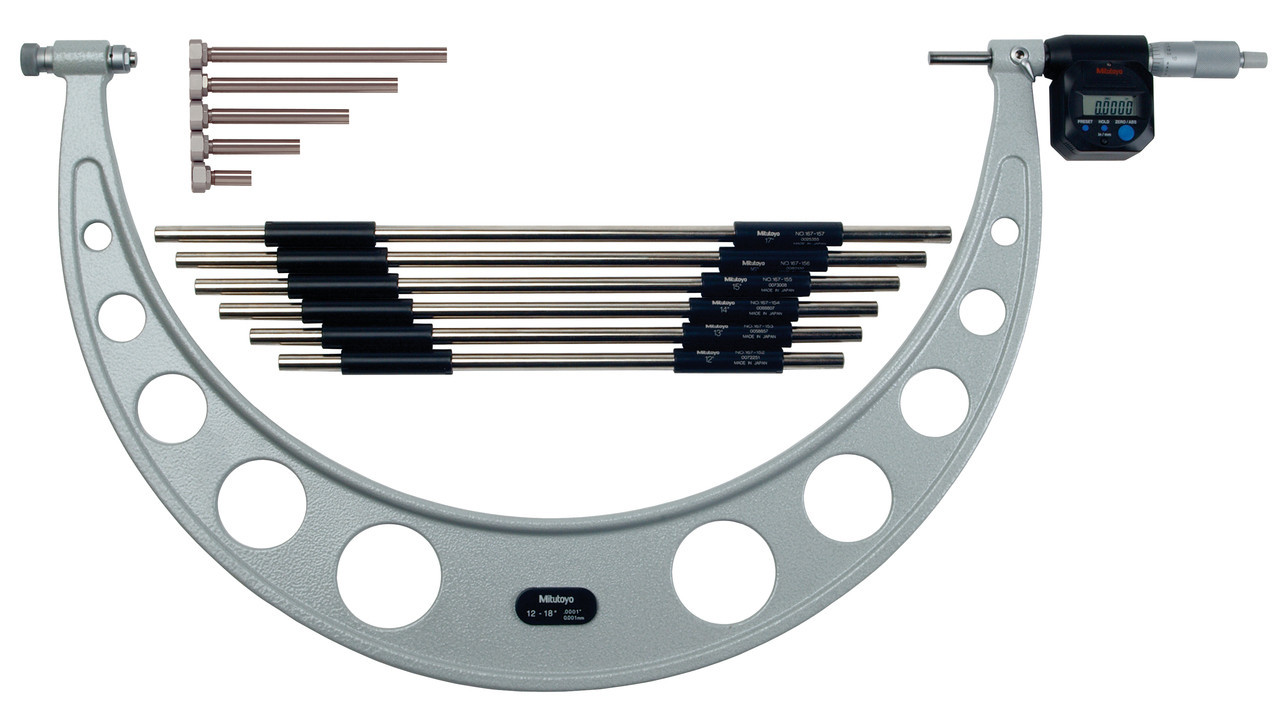

Mitutoyo 340-720 - 12-18"/ 304-457mm Digimatic Outside Micrometers with Interchangeable Anvils Range 12-18"/ 304-457mm IP65, SPC

Mitutoyo 340-720 - 12-18"/ 304-457mm Digimatic Outside Micrometers with Interchangeable Anvils Range 12-18"/ 304-457mm IP65, SPC

Hover over image to zoom

$1,084.00
SKU:
340-720

 Product Description



Outside Coolant Proof Micrometers-Series 340,104-with Interchangeable Anvils

Series 340
Features
  • IP65 water/dust protection 340 series models with a range up to 12in/300mm.
  • Wide measuring range with interchangeable anvils.
  • With a Ratchet Stop for constant force.
  • Supplied with zero-setting standards bar for each range.
  • With SPC output (Series 340).
  • Supplied in fitted wooden case.

Technical Data

Accuracy: ±(4+R/75)ìm, R=max. range (mm)
[.00016” ±.00004 (L/3)”] L = Max Range (Inch)
Resolution*: 0.001mm or .0001"/0.001mm
(340-351-10: .00005"/0.001mm)
Graduation**: 0.01mm
Flatness: 0.6µm/.000024” for models up to 300mm/12”
1µm/.00004” for models over 300mm/12”
Parallelism: 2µm/.00008” for models up to 75mm/3”
3µm/.00012” for models up to 150mm/6”
(2+R/100)µm for models over 150mm, R=max.
range (mm)
[.00008” ± .00004 (L/4)”] L= Max range (inch)
Measuring faces: Carbide tipped
Display*: LCD
Battery*: SR44 (1 pc.), 938882
Battery life*: Approx. 1.2 years under normal use
Dust/Water protection level*: IP65
*Digital models **Analog models


Function of Digital Model
Zero-setting, Data hold, Preset, Data output, inch/mm
conversion (inch/mm models)
Alarm: Low voltage, Counting value composition error
***Function Lock
***2 Presets
***100-300mm/4-12”


Optional Accessories for Digital Model
05CZA662: SPC cable with data switch (1m / 40”)
05CZA663: SPC cable with data switch (2m / 80”)
