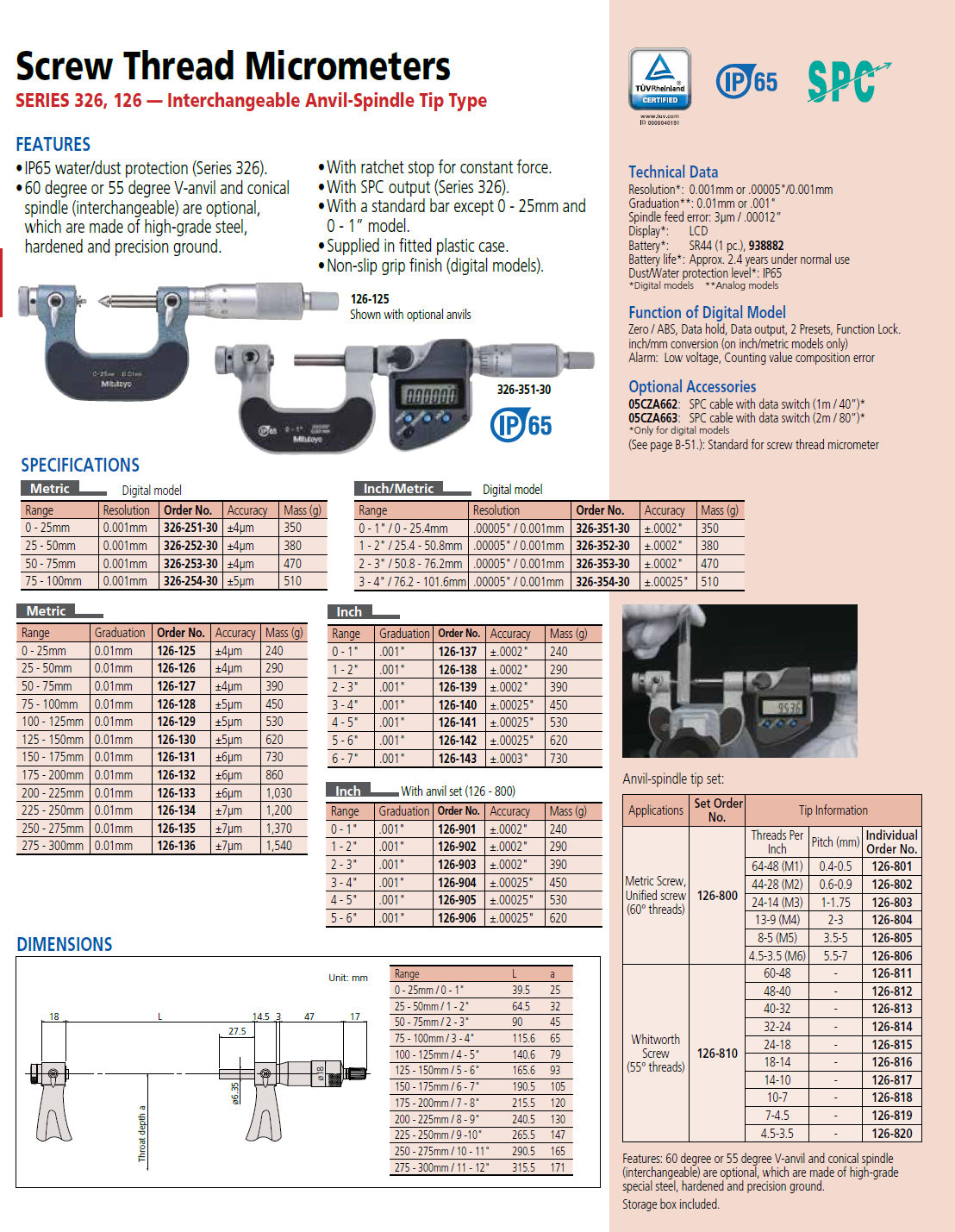

Screw Thread Micrometers - Series 326,126-Interchangeable Anvil-Spindle Tip Type
Series 326
Features
IP65 water/dust protection(Series 326).
60 degree or 55 degree V-anvil andconicalspindle(interchangeable)are optional,which are made of high-grade steel,hardened and precision ground.
With Ratchet Stop for constant force.
With SPC output (Series 326)
With a standard bar except 0-25mm 0-1 in model

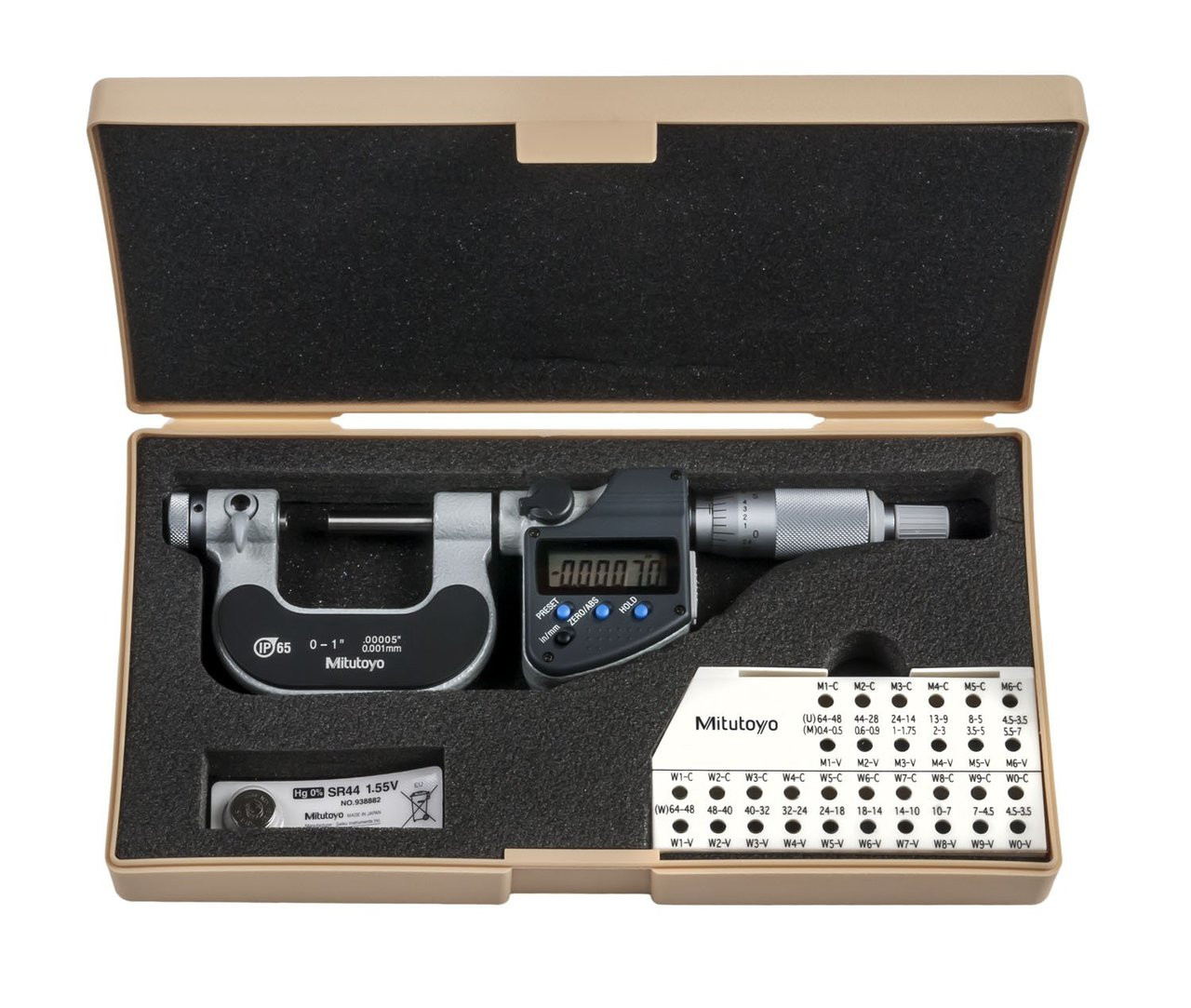

Suplied in fitted plastic case.
Technical Data
Resolution*:0.001mm or .00005"/0.001mm Graduation**:0.01mm or .001" Spindle feed error: 3µm/.00012” Display*: LCD Battery*: SR44 (1 pc.), 938882 Battery life*: Approx. 1.2 years under normal use Dust/Water protection level*: IP65 *Digital models **Analog models Function of Digital Model Zero-setting, Data hold, Data output, 2 Presets, Function lock. inch/mm conversion (inch/mm models) Alarm: Low voltage, Counting value composition error Optional Accessories
05CZA662: SPC cable with data switch (1m/40”)* 05CZA663: SPC cable with data switch (2m/80”)* *Only for digital models
