- Mitutoyo 293-357-30 - Digimatic Micrometer Range 11"-12" .0001"/0.001mm SPC RA IP65
Categories
Related Products
Mitutoyo 293-357-30 - Digimatic Micrometer Range 11"-12" .0001"/0.001mm SPC RA IP65
Hover over image to zoom
![Pin It](http://pinterest.com/pin/create/button/?url=https://cuttingtoolsolutions.us/mitutoyo-293-357-30-digimatic-micrometer-range-11-12-0001-0-001mm-spc-ra-ip65/&media=https://cdn10.bigcommerce.com/s-xfwah5btob/products/29145/images/5738/293-351-30__07638.1553507368.1280.1280.jpg?c=2&description=Cutting Tool Solutions - Mitutoyo 293-357-30 - Digimatic Micrometer Range 11"-12" .0001"/0.001mm SPC RA IP65 , $610.00 (https://cuttingtoolsolutions.us/mitutoyo-293-357-30-digimatic-micrometer-range-11-12-0001-0-001mm-spc-ra-ip65/))
Product Description

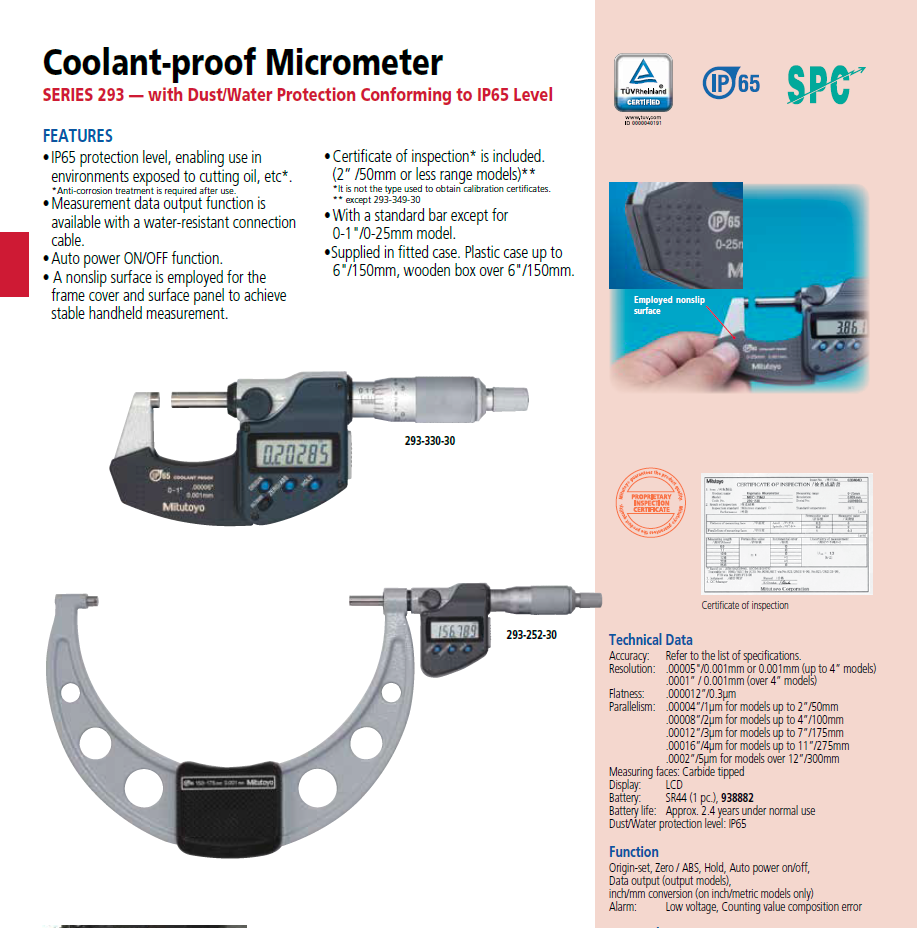

Coolant Proof Micrometer Series 293-with Dust/Water Protection Conforming to IP65 Level
Series 293
Features
Coolant Proof Micrometers MDC-MX SeriesTwice as Long Battery Life as before and Drastic Improvement in Measurement Efficiency
- IP65 protection level, enabling use in environments exposed to cutting oil, etc*.
*Anti-corrosion treatment is required after use. - Measurement data output function is available with a water-resistant connection cable.
- Auto power ON/OFF function. • Certificate of inspection* is included.
(50mm/2” or less range models) *It is not the type used to obtain
calibration certificates. - With a standard bar except for 0-25mm/0-1" model.

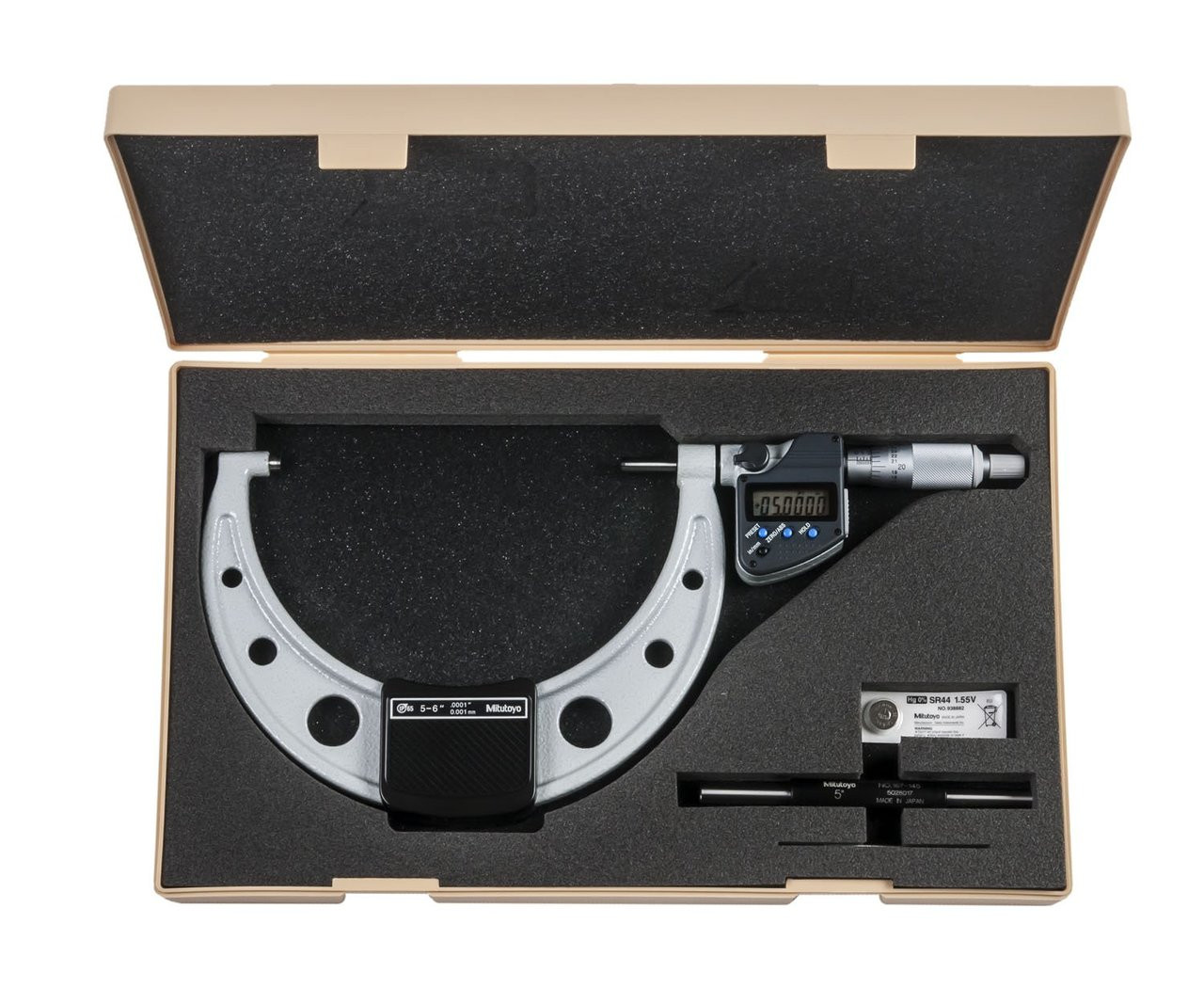

- Supplied in fitted case. Plastic case up to 150mm/6",
Wooden box over 150mm/6"

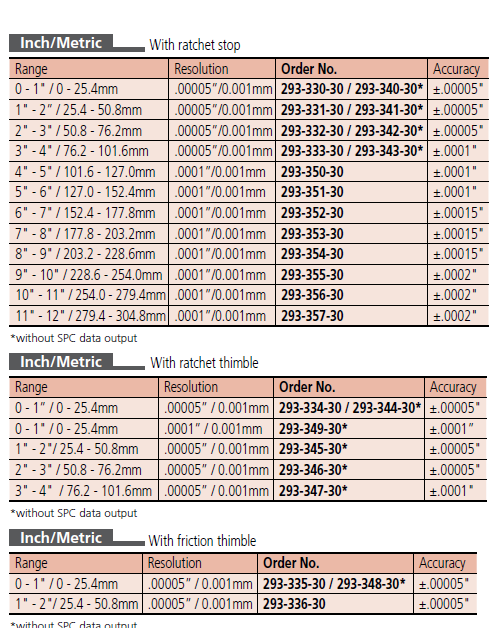

Accuracy: Refer to the list of specifications.
Resolution: 0.001mm or .00005"/0.001mm
Flatness: 0.3µm/.000012”
Parallelism: 1µm/.00004” for models up to 50mm/2”
2µm/.00008” for models up to 100mm/4”
3µm/.00012” for models up to 175mm/7”
4µm/.00016” for models up to 275mm/11”
5µm/.0002” for models over 300mm/12”
Measuring faces: Carbide tipped
Display: LCD
Battery: SR44 (1 pc.), 938882
Battery life: Approx. 1.2 years under normal use
(8 months: over 100mm models)
Dust/Water protection level: IP65
Function
Origin-set, Zero-setting, Automatic power on/off, Data hold,
Data output, inch/mm conversion
(inch/mm models)
Alarm: Low voltage, Counting value composition error
Optional Accessories
05CZA662: SPC cable with data switch (1m/40”)
05CZA663: SPC cable with data switch (2m/80”)
