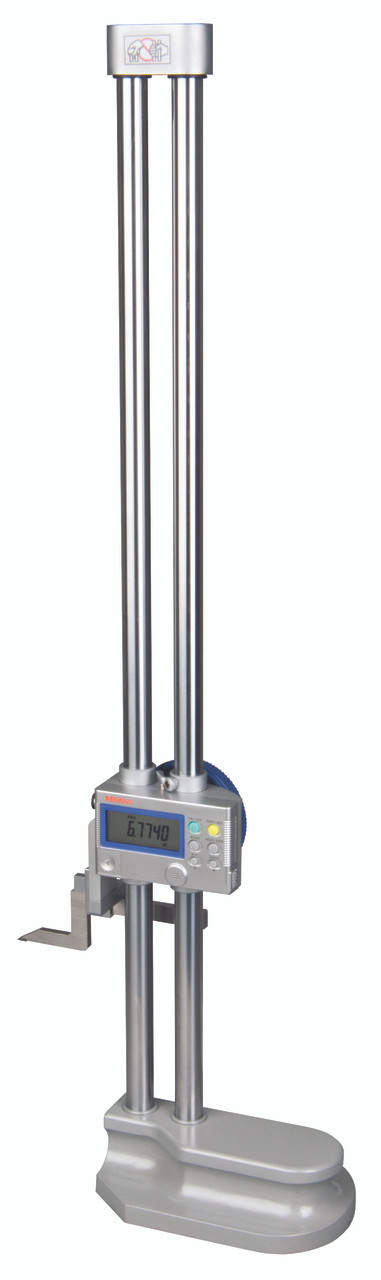

Mitutoyo 192-672-10 - LCD Digimatic Height Gauge, SPC Output, 0-24" Range, 0.0005" Resolution, +/-0015" Accuracy

Mitutoyo 192-672-10 - LCD Digimatic Height Gauge, SPC Output, 0-24" Range, 0.0005" Resolution, +/-0015" Accuracy
Image 1

Hover over image to zoom

Click to enlarge
$2,850.00
SKU:
192-672-10

 Product Description

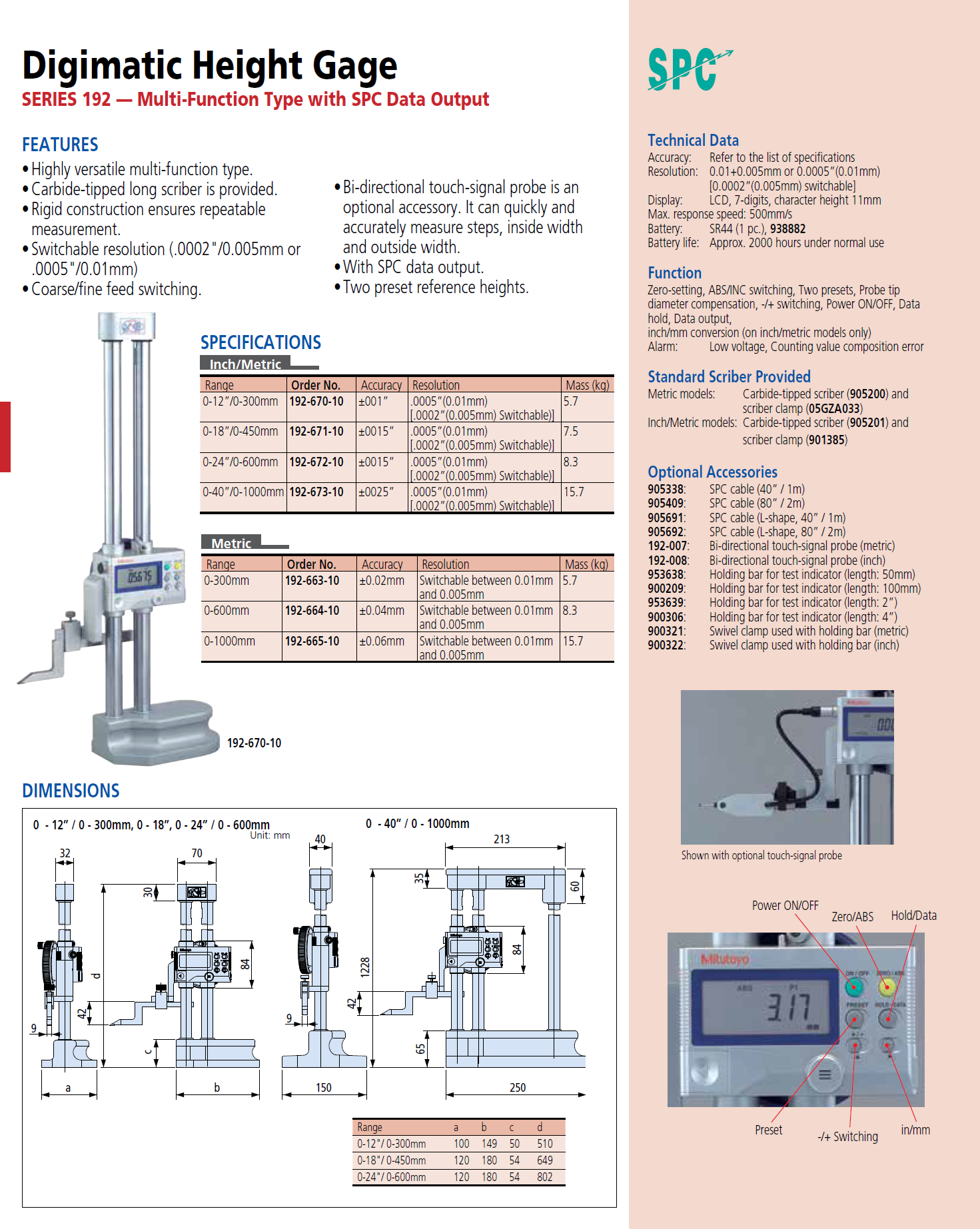

Digimatic Height Gage Series 192-Multi-Function Type with SPC Data Output



Series 192 Features

  • Highly versatile multi-function type.
  • Carbide-tipped long scriber is provided.
  • Rigid construction ensures repeatable measurement.
  • Coarse/fine feed switching.
  • Bi-directional touch-signal probe is an optional accessory. It can quickly and accurately measure steps, inside width, and outside width.
  • With SPC data output.
Technical Data

Accuracy: Refer to the list of specifications.
Resolution: 0.01mm or .0005"/0.01mm
Display: LCD, 7-digit
Max. response speed: 500mm/s
Battery: SR44(1pc.), 938882
Battery life: Approx. 2000 hours under normal use

Function

Zero-setting, ABS/INC switching, Presetting, Two presets, Probe tip diameter compensation, -/+ switching, Power ON/OFF, Data hold,
Data output, inch/mm conversion (inch/mm models only)
Alarm: Low voltage, Counting value composition error
Standard Scriber Provided

Metric models: Carbide-tipped scriber (905200) and scriber clamp (05GZA033)
Inch/Metric models: Carbide-tipped scriber (905201) and scriber clamp (901385)

Optional Accessories

905338: SPC cable (40” / 1m)
905409: SPC cable (80” / 2m)
905691: SPC cable (L-shape, 40” / 1m)
905692: SPC cable (L-shape, 80” / 2m)
192-007: Bi-directional touch-signal probe (metric)
192-008: Bi-directional touch-signal probe (inch)
953638: Holding bar for test indicator (length: 50mm)
900209: Holding bar for test indicator (length: 100mm)
953639 Holding bar for test indicator (length: 2”)
900306: Holding bar for test indicator (length: 4”)
900321: Swivel clamp used with holding bar (metric)
900322: Swivel clamp used with holding bar (inch)
Mitutoyo 192-672-10 LCD Digimatic Height Gauge, SPC Output, 0-24" Range, 0.0005" Resolution, +/-0015" Accuracy
