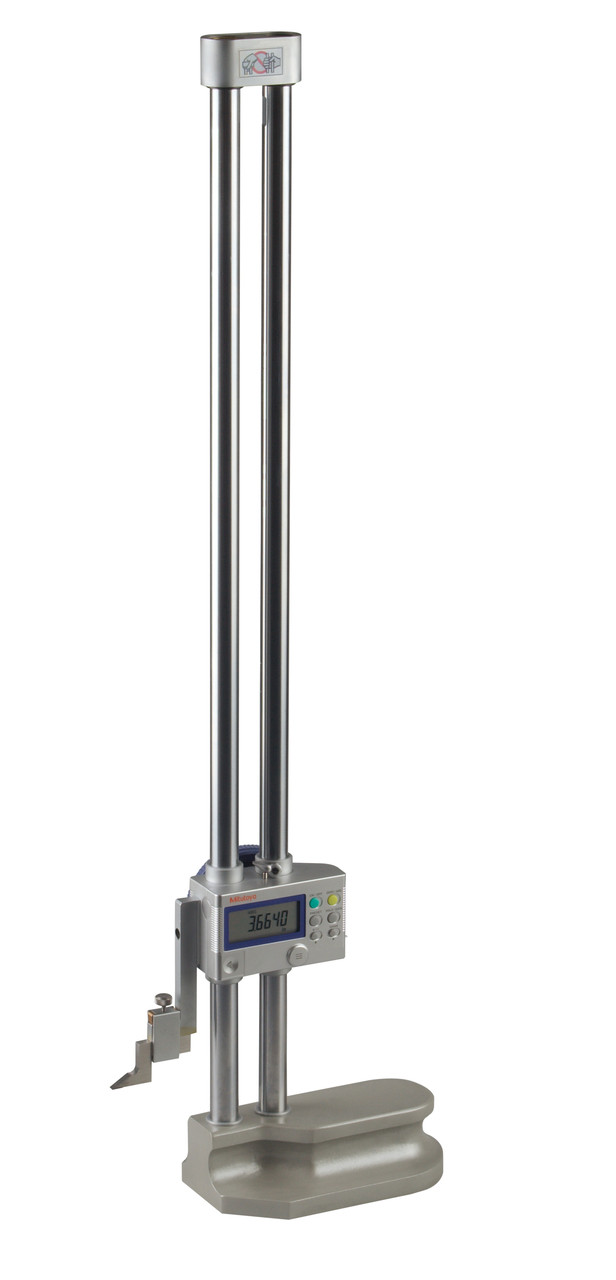

Series 192 Features
• Switchable resolution (.0002”/0.005mm or.0005”/0.01mm)
• Easy-to-use standard type.
• Carbide-tipped scriber is provided.
• Double-column structure ensures high measuring accuracy.
• Coarse/fine feed switching.
• Two preset reference heights.
Technical Data Accuracy: Refer to the list of specifications. Resolution: 0.01mm or .0005"/0.01mm Display: LCD, 7-digit charter height 11mm Max. response speed: 500mm/s Battery: SR44(1pc.), 938882 Battery life: Approx. 2000 hours under normal use
Function Zero-setting, ABS/INC switching, Two presets,Probe tip diameter compensation-/+ switching, Power ON/OFF, Data hold, inch/mm conversion (on inch/mm models only) Alarm: Low voltage, Counting value composition error
Standard Scriber Provided Metric models: Carbide-tipped scriber (07GZA000) and scriber clamp ( 05GZA033) Inch/Metric models: Carbide-tipped scriber (07GZA000) and scriber clamp (05GZA033) and scriber clamp901385)
Optional Accessories 953638: Holding bar for test indicator (length: 50mm) 900209: Holding bar for test indicator (length: 100mm) 953639: Holding bar for test indicator (length: 2”) 900306: Holding bar for test indicator (length: 4”) 900321: Swivel clamp used with holding bar (metric) 900322: Swivel clamp used with holding bar (inch) 905338:SPC Cable (CD TYPE) 1M 905409:SPC Cable (CD TYPE) 2M 905691:905691 CD/Connecting Cable L-Type 1M RIG 905692:CD/Connecting Cable-L-Type 2M RIG
