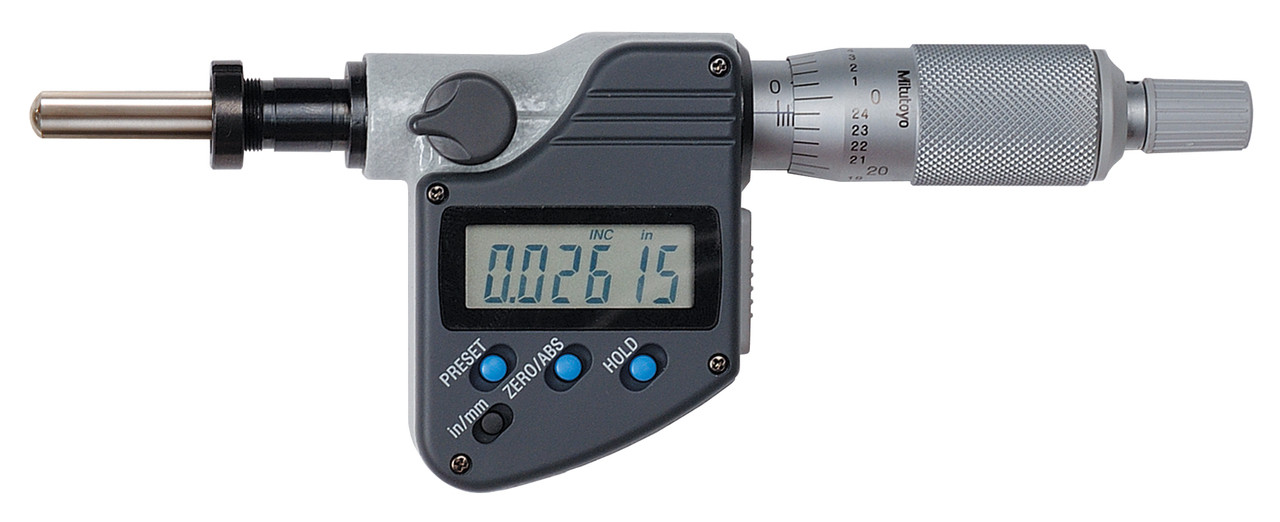

Mitutoyo - 1 - 2" . 00005" Digimatic Replacement Micrometer Head w/clamp nut, 3/8 Stem SPC IP65 350-352-30 Free Shipping

Mitutoyo - 1 - 2" . 00005" Digimatic Replacement Micrometer Head w/clamp nut, 3/8 Stem SPC IP65 350-352-30 Free Shipping
Image 1

Hover over image to zoom

Click to enlarge
$333.00
SKU:
350-352-30

 Product Description


Digimatic Micrometer Heads Series 350





Series 350
Features
  • Non-rotating device
    350-261-30,350-361-30
The non-rotating device provides no radial torsion on the workpiece surface so that workpiece wear and deformation are minimized.


Technical Data
Accuracy* ±2ìm Metric model
± .0001" Inch / Metric model
* Excluding quantizing error
Resolution: 0.001mm or .00005"/0.001mm
Display: LCD
Battery: SR44 (1 pc) 938882
Battery life: Approx. 3 years under normal use
Dust/Water protection level: IP65
350-281-30, 350-382-30, 350-283-30, 350-284-30, 350-261-30
350-381-30, 350-382-30, 350-383-30, 350-384-30, 350-361-30
Function
Preset, inch/mm conversion (inch/mm models)
Alarm: Low voltage, Counting value composition error
Function Lock
2 Presets
Optional Accessories
05CZA662: SPC cable with data switch (1m / 40")
05CZA663: SPC cable with data switch (2m / 80")


Parts Break Down




line drawings

Inch/Metric Metric
Order No Range Stem/Spindle face Stem dia. Remarks
350-351-30 0-1in 0-25.4mm Plain/Flat(carbide tip) .375in -
350-352-30 0-1in 0-25.4mm w/clamp nut/Flat(carbide tip) .375in -
350-353-30 0-1in 0-25.4mm Plain/Spherical(SR4) .375in -
350-354-30 0-1in 0-25.4mm w/clamp nut/Spherical(SR4) .375in -
350-361-30 0-1in 0-25.4mm Plain/Flat .5in IP65
350-381-30 0-1in 0-25.4mm Plain/Flat(carbide tip) .5in IP65
350-382-30 0-1in 0-25.4mm w/clamp nut/Flat(carbide tip) .5in IP65
350-383-30 0-1in 0-25.4mm Plain/Spherical(SR4) .5in IP65
350-384-30 0-1in 0-25.4mm w/clamp nut/Spherical(SR4) .5in IP65
