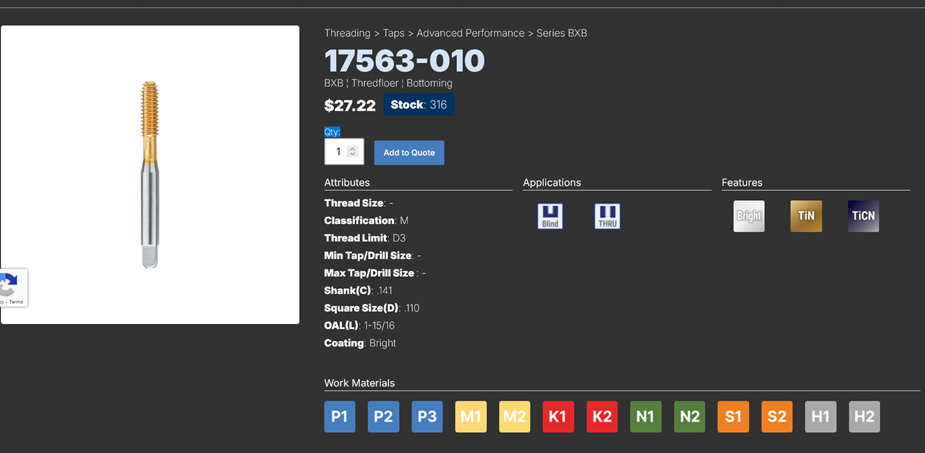

Balax 17563-010 - M3 x 0.5 4H BD3 Thredfloer Tap Bottom Bright USA Mfg - Pkg 12 ea
Hover over image to zoom
)
Product Description
Balax 17563-010 - M3 x 0.5 4H BD3 Thredfloer Tap Bottom USA Mfg - Pkg 12 ea
Pre-Tap Hole Sizes
| 55% Thread | 0.110 |
| 65% Thread | 0.109 |
| 75% Thread | 0.108 |
| 85% Thread | 0.108 |
Recommended Limits for M3 x 0.5 Thread
| CLASS 4H | D3 |
| CLASS 6H | D6 |
| CLASS 6G | D8 |
Possible Gage Members for M3 x 0.5 Thread
| 90410 | GO ELEMENT |
| 90412 | 6H NO GO ELEMENT |
| 90414 | 4H NO GO ELEMENT |
| 90416 | 6H SET |
| 90418 | 4H SET |
| 90602 | PRE-PLATE GO ELEMENT |
| 90603 | PRE-PLATE NO GO ELEMENT |
| 90902 | PRE-PLATE SET |
