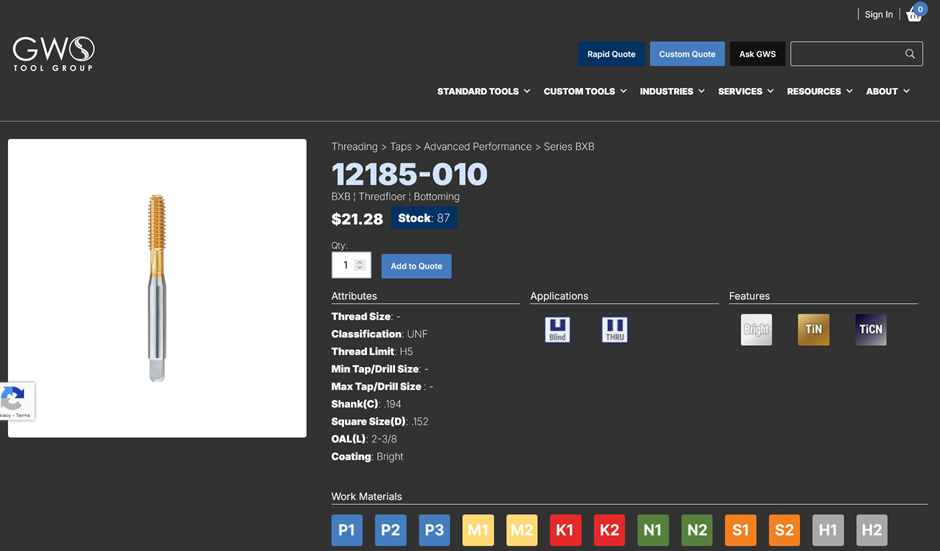

Balax 12185-010 - 10-32 BH5 Form Tap Bottom USA Mfg - Pkg 12 ea
Hover over image to zoom
)
Product Description
Balax 12185-010 - 10-32 BH5 Form Tap Bottom USA Mfg - Pkg 12 ea
Pre-Tap Hole Sizes
| 55% Thread | 0.178 |
| 65% Thread | 0.176 |
| 75% Thread | 0.175 |
| 85% Thread | 0.174 |
Recommended Limits for 10-32 Thread
| CLASS 2B | H5, H6 |
| CLASS 3B | H3, H4 |
Possible Gage Members for 10-32 Thread
| 90160 | GO ELEMENT |
| 90162 | 2B NO GO ELEMENT |
| 90164 | 3B NO GO ELEMENT |
| 90166 | 2B SET |
| 90168 | 3B SET |
| 90590 | PRE-PLATE GO ELEMENT |
| 90591 | PRE-PLATE NO GO ELEMENT |
| 90990 | PRE-PLATE SET |
