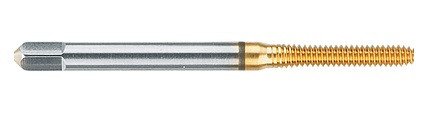

Balax - 11963-01T - 10-24 BH3 Form Tap Bottom Tincoat USA Mfg - Pkg 12 ea
Hover over image to zoom
)
Product Description
EDP#: 11963 - 000
10-24 BH3 THREDFLOER
TINCOAT
Specifications
| Category | Thredfloers |
| Series | BOTTOM |
| # of Grooves | 1 |
| Chamfer | 2.5 |
| Blank Name | ANSI CNC |
| Overall Length | 2-3/8 |
| Thread Length | .580 |
| Neck Length | 7/8 |
| Shank Diameter | .194 |
| Square | .152 |
| Square Length | 1/4 |
Additional Information
| Catalog Page | View Catalog Page |
| Speed and Feed Info | Speed & Feed Info |
Pre-Tap Hole Sizes
| 55% Thread | 0.172 |
| 65% Thread | 0.170 |
| 75% Thread | 0.168 |
| 85% Thread | 0.166 |
Recommended Limits for 10-24 Thread
| CLASS 2B | H5, H6, H7 |
| CLASS 3B | H4, H5 |
Possible Gage Members for 10-24 Thread
| 90150 | GO ELEMENT |
| 90152 | 2B NO GO ELEMENT |
| 90154 | 3B NO GO ELEMENT |
| 90156 | 2B SET |
| 90158 | 3B SET |
| 90588 | PRE-PLATE GO ELEMENT |
| 90589 | PRE-PLATE NO GO ELEMENT |
| 90988 | PRE-PLATE SET |
Inventory
| EDP# | In Stock | Description |
|---|---|---|
| EDP# 11963-010 | 1 | FT. PT. REMOVED |
| EDP# 11963-01T | 56 | FT. PT. REMOVED, TIN |
| EDP# 11963-01U | 59 | FT. PT. REMOVED |
