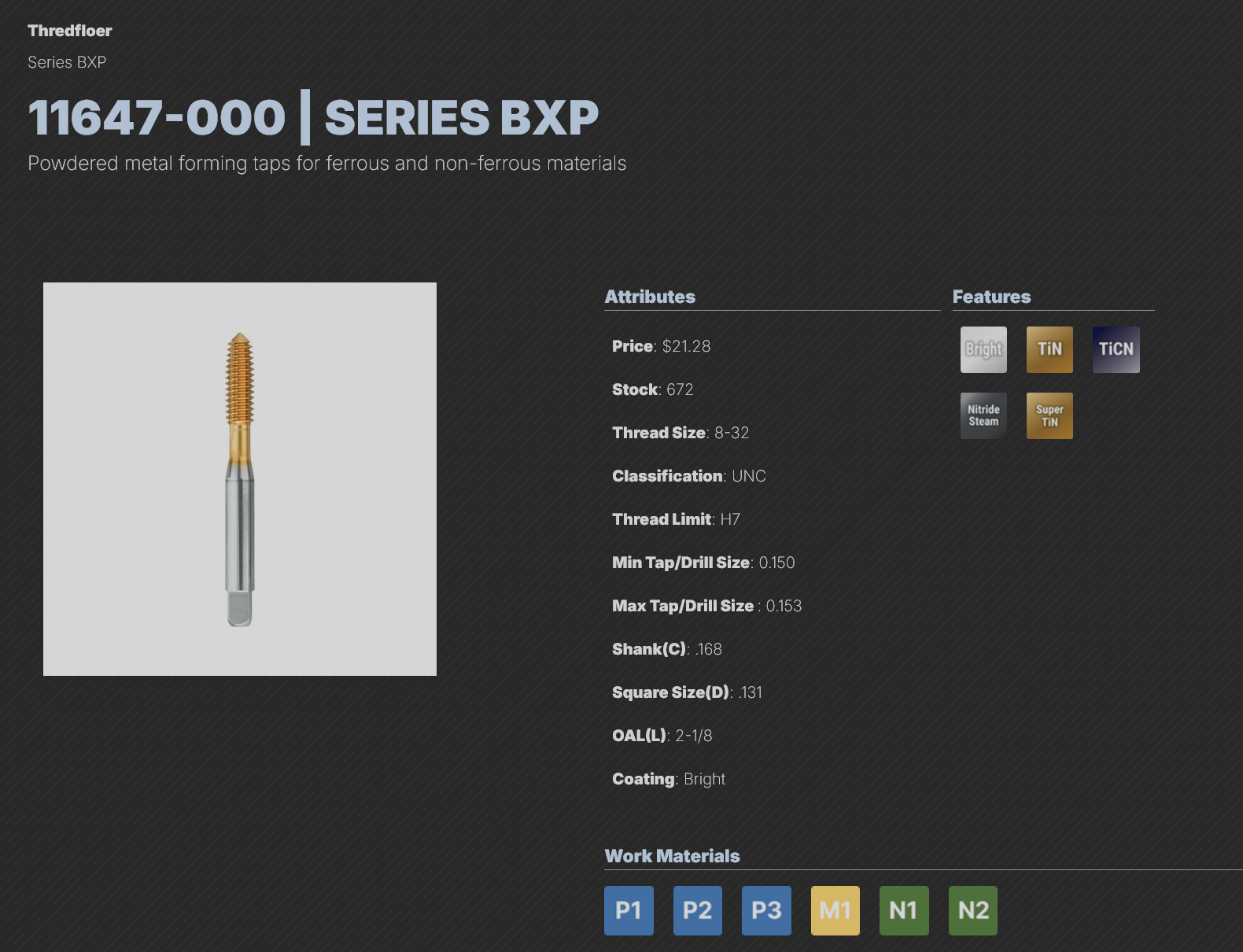

Balax 11647-000 - 8-32 PH7 Thredfloer Form Tap Plug USA - Pkg 12 ea
Hover over image to zoom
)
Product Description
Pre-Tap Hole Sizes
| 55% Thread | 0.152 |
| 65% Thread | 0.151 |
| 75% Thread | 0.149 |
| 85% Thread | 0.148 |
Recommended Limits for 8-32 Thread
| CLASS 2B | H5, H6 |
| CLASS 3B | H3, H4 |
Possible Gage Members for 8-32 Thread
| 90130 | GO ELEMENT |
| 90132 | 2B NO GO ELEMENT |
| 90134 | 3B NO GO ELEMENT |
| 90136 | 2B SET |
| 90138 | 3B SET |
| 90586 | PRE-PLATE GO ELEMENT |
| 90587 | PRE-PLATE NO GO ELEMENT |
| 90986 | PRE-PLATE SET |
