Balax - 11627-01T - 8-32 BH6 Form Tap Bottom Tincoat USA Mfg - Pkg 12 ea

Balax - 11627-01T - 8-32 BH6 Form Tap Bottom Tincoat USA Mfg - Pkg 12 ea

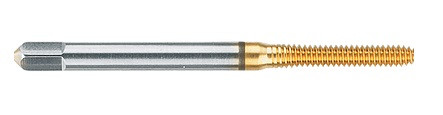

Image 1

Hover over image to zoom

Click to enlarge
$13.50
SKU:
11627-01T
Minimum Purchase:
12 unit(s)

 Product Description

 Product image

11627-01T

8-32 BH7 Thredfloer

TINCOAT

  • Specifications

    • Category:          Thredfloers
    • Product Type:    Forming
    • Series:                BXB
    • Thread Size:       8-32
    • Thread Limit:      H7
    • Chamfer:            2.5
    • Coating:             Tincoat
    • Blank Name:      ANSI CNC
    • Overall Length:  2-1/8"
    • Thread Length:  .450"
    • Neck Length:     3/4"
    • Shank Dia.:        .168"
    • Square:              .131"
    • Square Length: 1/4"
    • Package Qty:    12

  • Pre-Tap Hole Sizes

    • 55% Thread:   0.153"
    • 65% Thread:   0.151"
    • 75% Thread:   0.150"
    • 85% Thread:   0.149"

    Inventory Options:

    Title
    Modified
    Available
    11627-01T
    TiN
    109
    11627-01U
    Super TiN
    24
    11627-416
    4 Grooves,Nitride/Steam
    18

    Balax Logo.png


EDP#: 11627 - 000

8-32 BH7 THREDFLOER

BRIGHT FINISH



Specifications

Category Thredfloers
Series BOTTOM
# of Grooves 1
Chamfer 2.5
Blank Name ANSI CNC
Overall Length 2-1/8
Thread Length .450
Neck Length 3/4
Shank Diameter .168
Square .131
Square Length 1/4

Additional Information

Catalog Page View Catalog Page
Speed and Feed Info Speed & Feed Info

Pre-Tap Hole Sizes

55% Thread 0.153
65% Thread 0.151
75% Thread 0.150
85% Thread 0.149

Recommended Limits for 8-32 Thread

CLASS 2B H5, H6
CLASS 3B H3, H4

Possible Gage Members for 8-32 Thread

90130 GO ELEMENT
90132 2B NO GO ELEMENT
90134 3B NO GO ELEMENT
90136 2B SET
90138 3B SET
90586 PRE-PLATE GO ELEMENT
90587 PRE-PLATE NO GO ELEMENT
90986 PRE-PLATE SET

Inventory

EDP#In StockDescription
EDP# 11627-010 129 FT. PT. REMOVED, BRIGHT FINISH
EDP# 11627-016 2 FT. PT. REMOVED, NITRIDE & STEAM OXIDE
EDP# 11627-01T 33 FT. PT. REMOVED, TIN
EDP# 11627-01U 23 FT. PT. REMOVED
EDP# 11627-416 18 4 GROOVES, FT. PT. REMOVED, NITRIDE & STEAM OXIDE
