Balax 11623-01T - 8-32 BXB BH3 Form Tap Bottom Tincoat USA - Pkg 12 ea
Hover over image to zoom
)
Product Description
Balax 11623-01T - 8-32 BXB BH3 Form Tap Bottom Tincoat USA
Specifications
| Category | Thredfloers |
| Series | BOTTOM |
| # of Grooves | 1 |
| Chamfer | 2.5 |
| Blank Name | ANSI CNC |
| Overall Length | 2-1/8 |
| Thread Length | .450 |
| Neck Length | 3/4 |
| Shank Diameter | .168 |
| Square | .131 |
| Square Length | 1/4 |

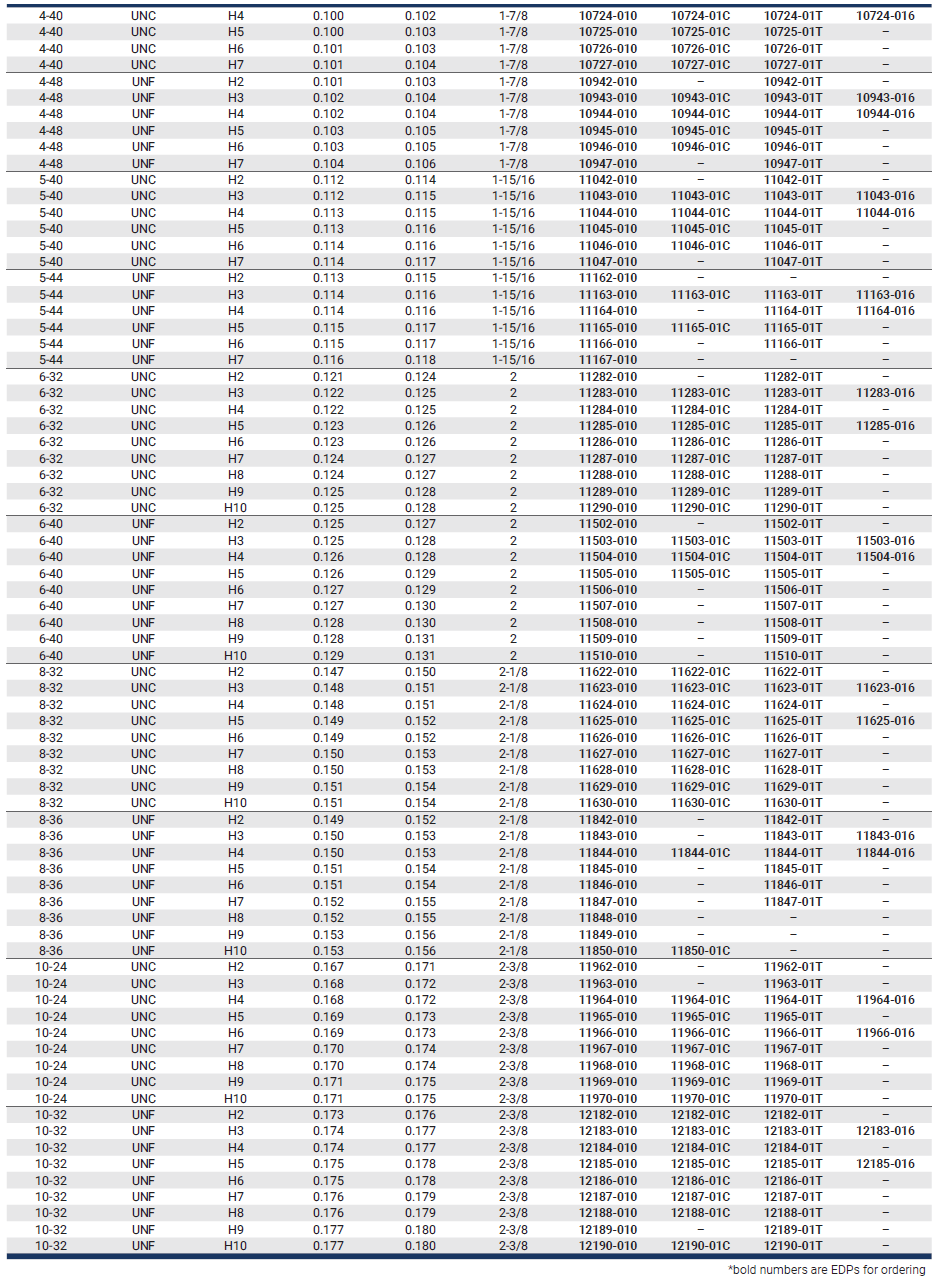

Pre-Tap Hole Sizes
| 55% Thread | 0.151 |
| 65% Thread | 0.149 |
| 75% Thread | 0.148 |
| 85% Thread | 0.147 |
Recommended Limits for 8-32 Thread
| CLASS 2B | H5, H6 |
| CLASS 3B | H3, H4 |
Possible Gage Members for 8-32 Thread
| 90130 | GO ELEMENT |
| 90132 | 2B NO GO ELEMENT |
| 90134 | 3B NO GO ELEMENT |
| 90136 | 2B SET |
| 90138 | 3B SET |
| 90586 | PRE-PLATE GO ELEMENT |
| 90587 | PRE-PLATE NO GO ELEMENT |
| 90986 | PRE-PLATE SET |
