- Balax - 11623-01T - 8-32 BH3 Form Tap Bottom Tincoat USA Mfg - Pkg 12 ea
Categories
Related Products

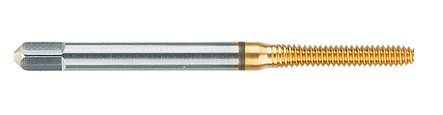

Balax - 11623-01T - 8-32 BH3 Form Tap Bottom Tincoat USA Mfg - Pkg 12 ea
Hover over image to zoom
)
Product Description
EDP#: 11623 - 01T
8-32 BH3 THREDFLOER
BRIGHT FINISH
Specifications
| Category | Thredfloers |
| Series | BOTTOM |
| # of Grooves | 1 |
| Chamfer | 2.5 |
| Blank Name | ANSI CNC |
| Overall Length | 2-1/8 |
| Thread Length | .450 |
| Neck Length | 3/4 |
| Shank Diameter | .168 |
| Square | .131 |
| Square Length | 1/4 |
Additional Information
| Catalog Page | View Catalog Page |
| Speed and Feed Info | Speed & Feed Info |
Pre-Tap Hole Sizes
| 55% Thread | 0.151 |
| 65% Thread | 0.149 |
| 75% Thread | 0.148 |
| 85% Thread | 0.147 |
Recommended Limits for 8-32 Thread
| CLASS 2B | H5, H6 |
| CLASS 3B | H3, H4 |
Possible Gage Members for 8-32 Thread
| 90130 | GO ELEMENT |
| 90132 | 2B NO GO ELEMENT |
| 90134 | 3B NO GO ELEMENT |
| 90136 | 2B SET |
| 90138 | 3B SET |
| 90586 | PRE-PLATE GO ELEMENT |
| 90587 | PRE-PLATE NO GO ELEMENT |
| 90986 | PRE-PLATE SET |
Inventory
| EDP# | In Stock | Description |
|---|---|---|
| EDP# 11623-010 | 150 | FT. PT. REMOVED, BRIGHT FINISH |
| EDP# 11623-012 | 2 | FT. PT. REMOVED, STEAM OXIDE |
| EDP# 11623-016 | 14 | FT. PT. REMOVED, NITRIDE & STEAM OXIDE |
| EDP# 11623-01C | 9 | FT. PT. REMOVED, TICN |
| EDP# 11623-01T | 150 | FT. PT. REMOVED, TIN |
| EDP# 11623-01U | 12 | FT. PT. REMOVED |
