Balax 11504-010 - 6-40 BXB BH4 Form Tap Bottom Bright USA - Pkg 12 ea
Hover over image to zoom
)

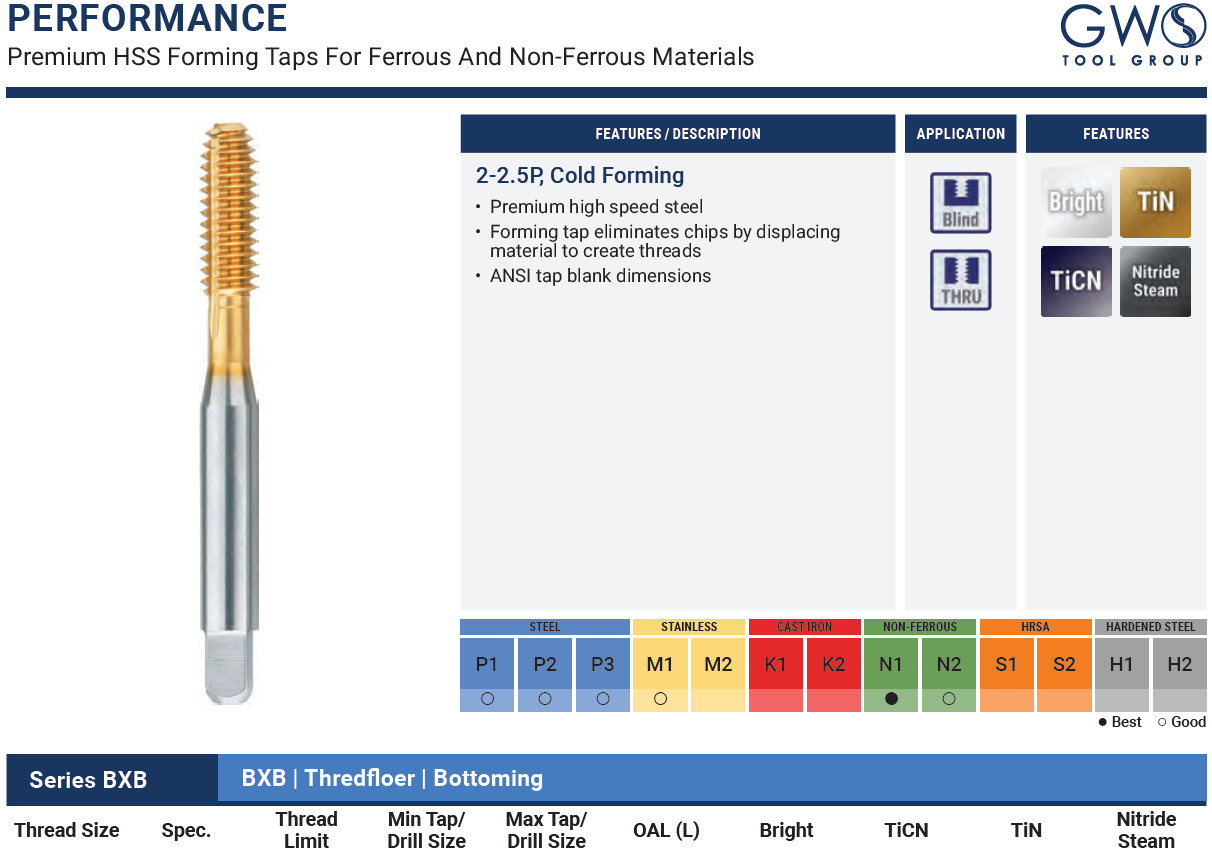

Product Description
Balax 11504-010 - 6-40 BXB BH4 Form Tap Bottom Bright USA
Specifications
| Category | Thredfloers |
| Series | BOTTOM |
| # of Grooves | 1 |
| Chamfer | 2.5 |
| Blank Name | ANSI CNC |
| Overall Length | 2 |
| Thread Length | .435 |
| Neck Length | 11/16 |
| Shank Diameter | .141 |
| Square | .110 |
| Square Length | 3/16 |
Pre-Tap Hole Sizes
| 55% Thread | 0.128 |
| 65% Thread | 0.127 |
| 75% Thread | 0.126 |
| 85% Thread | 0.125 |
Recommended Limits for 6-40 Thread
| CLASS 2B | H4, H5 |
| CLASS 3B | H3, H4 |
Possible Gage Members for 6-40 Thread
| 90120 | GO ELEMENT |
| 90122 | 2B NO GO ELEMENT |
| 90124 | 3B NO GO ELEMENT |
| 90126 | 2B SET |
| 90128 | 3B SET |
