Balax 11402-010 - 6-32 BX STI BH2 Form Tap Bottom Bright - Pkg 12 Ea
Hover over image to zoom
)
Product Description

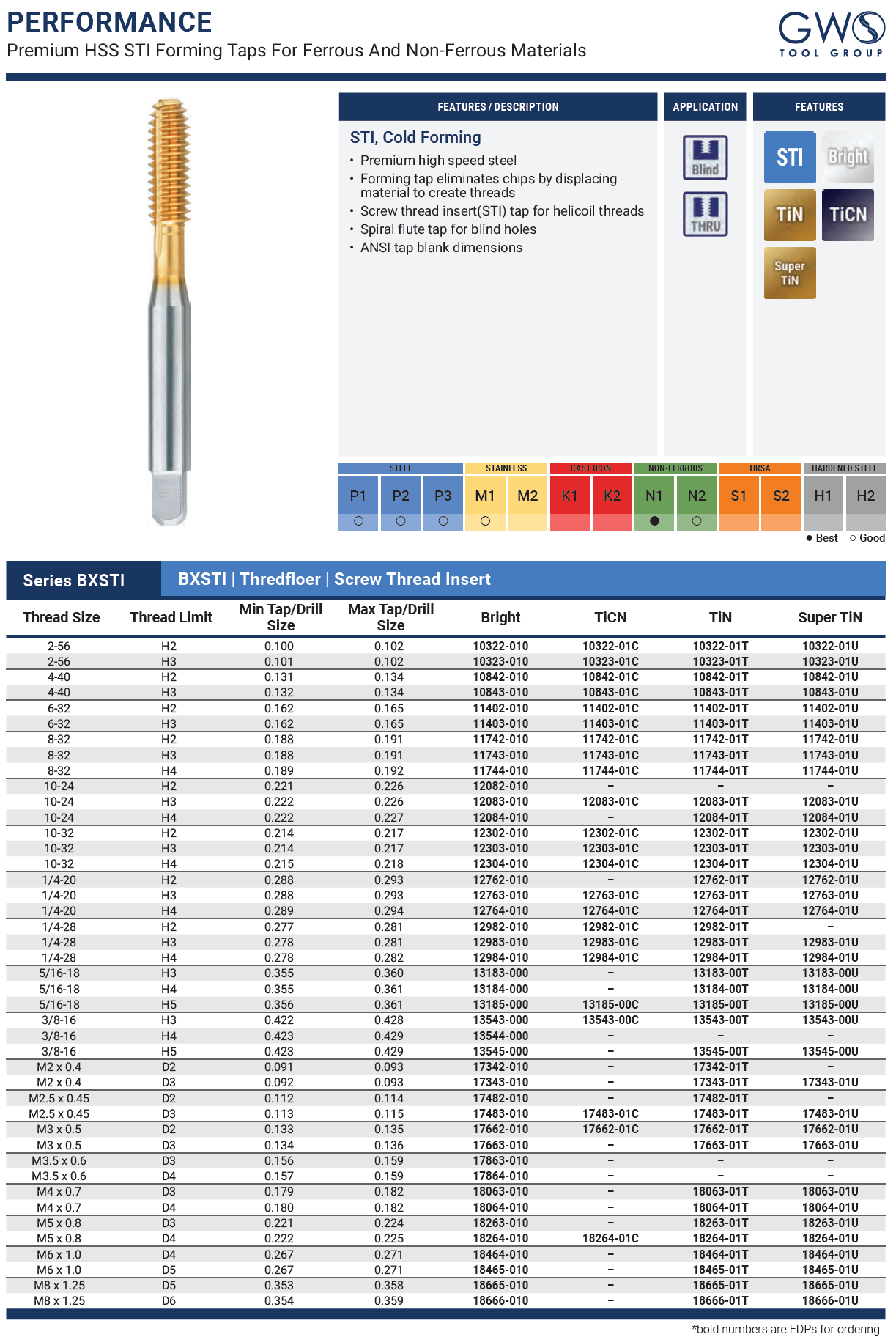

Balax 11402-010 - 6-32 BX OTL BH2 STI Form Tap Bright
Specifications
| Category | Thredfloers |
| Series | STI |
| # of Grooves | 1 |
| Chamfer | 2.5 |
| Blank Name | #10 ANSI CNC |
| Overall Length | 2-3/8 |
| Thread Length | .580 |
| Neck Length | 7/8 |
| Shank Diameter | .194 |
| Square | .152 |
| Square Length | 1/4 |
Pre-Tap Hole Sizes
| 55% Thread | 0.165 |
| 65% Thread | 0.163 |
| 75% Thread | 0.162 |
| 85% Thread | 0.161 |
Recommended Limits for 6-32 Thread
| CLASS 2B STI | H2, H3 |
| CLASS 3B STI | H2 |
Possible Gage Members for 6-32 Thread
| 90492 | STI GO ELEMENT |
| 90494 | STI 2B NO GO ELEMENT |
| 90495 | STI 3B NO GO ELEMENT |
| 90496 | STI 2B SET |
| 90497 | STI 3B SET |
