Balax 11345-010 - 6-32 BX3 BH5 3" Ext Form Taps Bottom Bright USA **Limited Stock 1 Pc Price**
Hover over image to zoom
![Pin It](http://pinterest.com/pin/create/button/?url=https://cuttingtoolsolutions.us/balax-11345-010-6-32-bx3-bh5-3-ext-form-taps-bottom-bright-usa-limited-stock-1-pc-price/&media=https://cdn10.bigcommerce.com/s-xfwah5btob/products/30985/images/17796/Balax11345-010-cuttingtoolsolutions.us__08178__13347.1773456016.1280.1280.png?c=2&description=Cutting Tool Solutions - Balax 11345-010 - 6-32 BX3 BH5 3" Ext Form Taps Bottom Bright USA **Limited Stock 1 Pc Price**, $54.70 (https://cuttingtoolsolutions.us/balax-11345-010-6-32-bx3-bh5-3-ext-form-taps-bottom-bright-usa-limited-stock-1-pc-price/))
Product Description

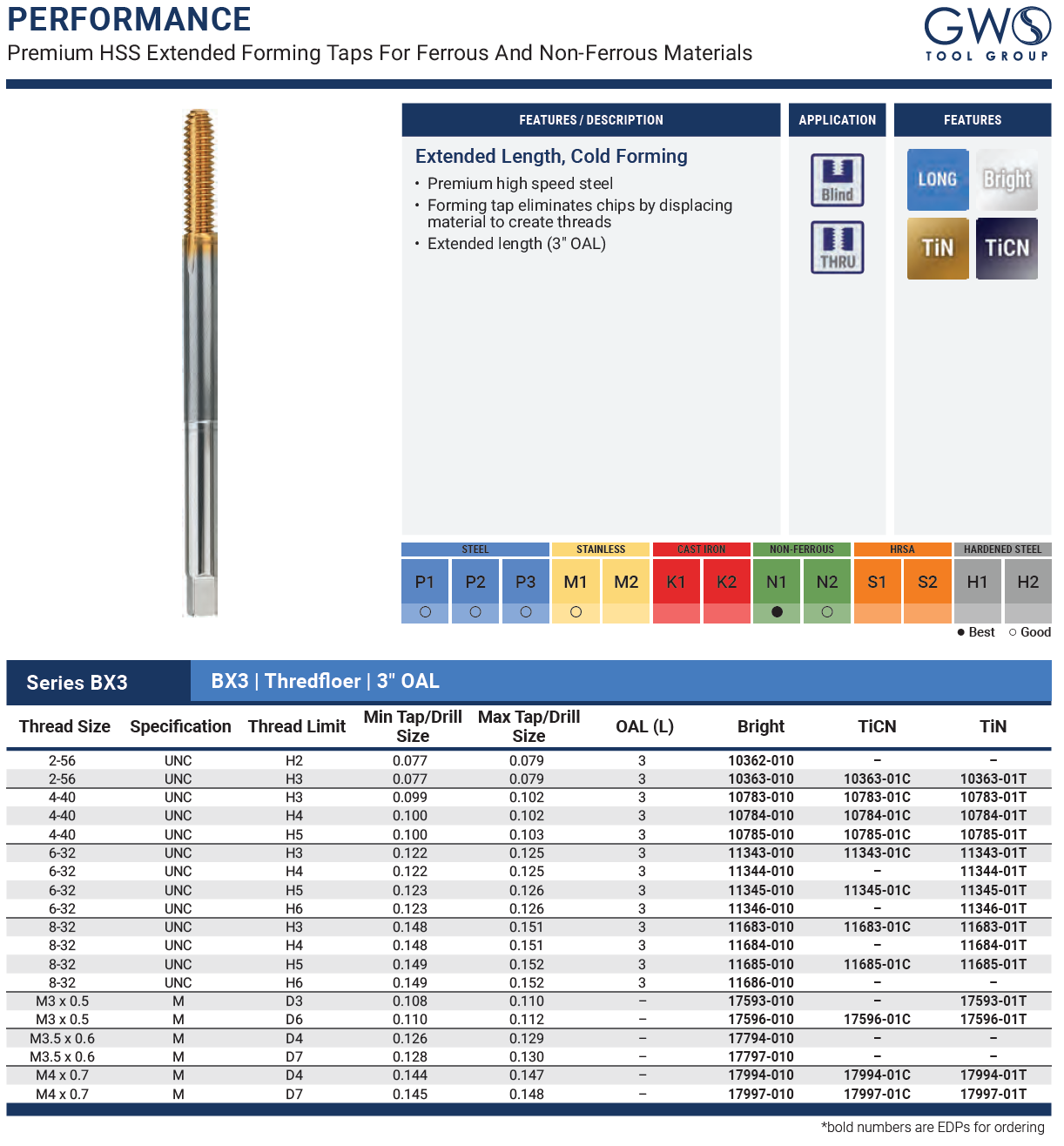

Balax 11345-010 - 6-32 BX3 BH5 3" Ext Form Taps Bottom Bright USA
Specifications
| Category | Thredfloers |
| Series | 3" OAL |
| # of Grooves | 1 |
| Chamfer | 2.5 |
| Blank Name | 3" OAL |
| Overall Length | 3 |
| Thread Length | .6875 |
| Neck Length | 0 |
| Shank Diameter | .141 |
| Square | .110 |
| Square Length | 3/16 |
Pre-Tap Hole Sizes
| 55% Thread | 0.126 |
| 65% Thread | 0.124 |
| 75% Thread | 0.123 |
| 85% Thread | 0.122 |
Recommended Limits for 6-32 Thread
| CLASS 2B | H5, H6 |
| CLASS 3B | H3, H4 |
Possible Gage Members for 6-32 Thread
| 90110 | GO ELEMENT |
| 90112 | 2B NO GO ELEMENT |
| 90114 | 3B NO GO ELEMENT |
| 90116 | 2B SET |
| 90118 | 3B SET |
| 90584 | PRE-PLATE GO ELEMENT |
| 90585 | PRE-PLATE NO GO ELEMENT |
| 90984 | PRE-PLATE SET |
