Balax 11325-010 - 6-32 BX OTL BH5 Form Tap Bottom Bright USA - **Single Piece price, Discount starts at 12 Ea **
Hover over image to zoom
)
Product Description

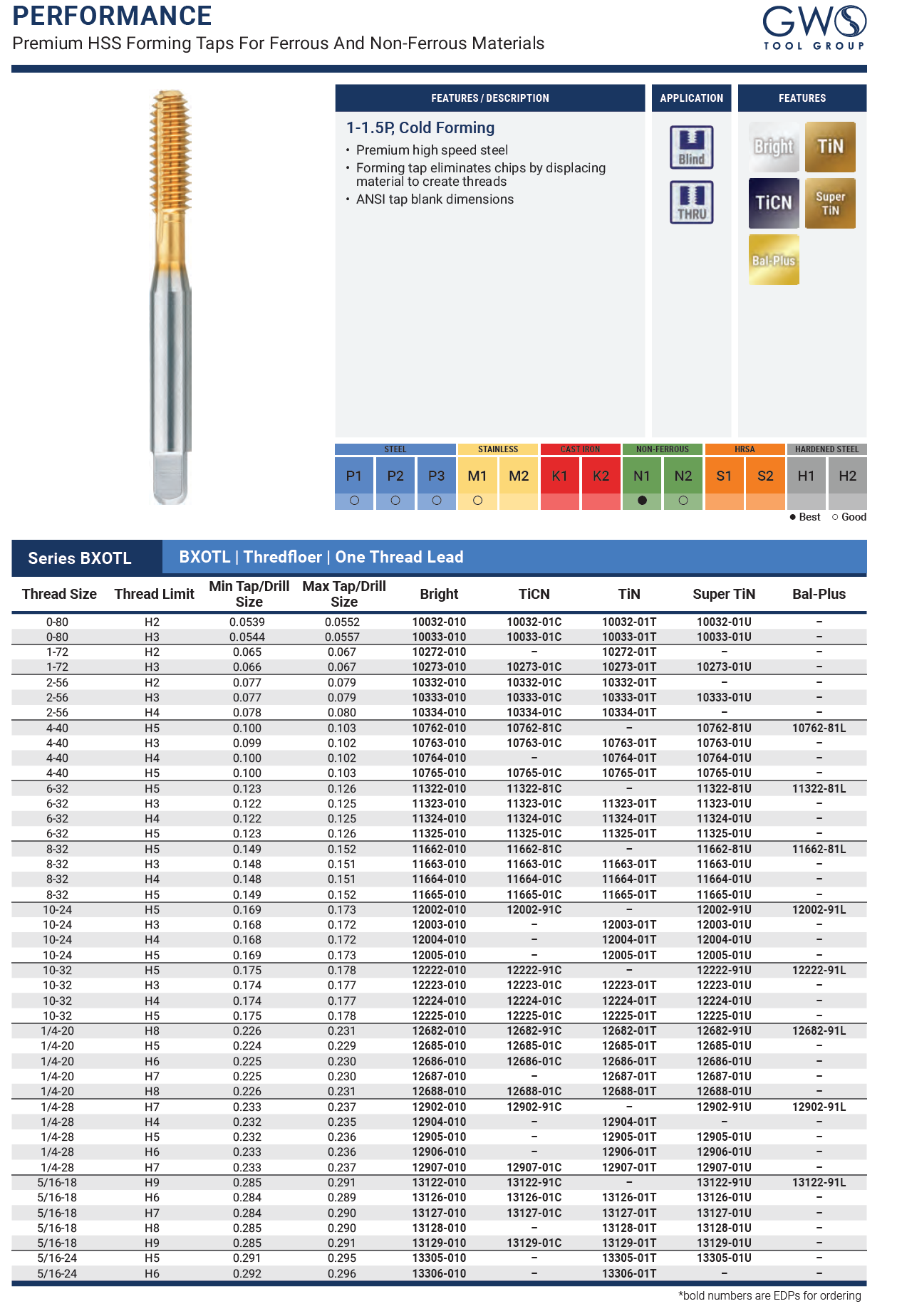

Balax 11325-010 - 6-32 BH5 BX OTL Form Tap Bottom Bright USA
Specifications
| Category | Thredfloers |
| Series | OTL |
| # of Grooves | 1 |
| Chamfer | 1.5 |
| Blank Name | ANSI CNC |
| Overall Length | 2 |
| Thread Length | .435 |
| Neck Length | 11/16 |
| Shank Diameter | .141 |
| Square | .110 |
| Square Length | 3/16 |
Pre-Tap Hole Sizes
| 55% Thread | 0.126 |
| 65% Thread | 0.124 |
| 75% Thread | 0.123 |
| 85% Thread | 0.122 |
Recommended Limits for 6-32 Thread
| CLASS 2B | H5, H6 |
| CLASS 3B | H3, H4 |
Possible Gage Members for 6-32 Thread
| 90110 | GO ELEMENT |
| 90112 | 2B NO GO ELEMENT |
| 90114 | 3B NO GO ELEMENT |
| 90116 | 2B SET |
| 90118 | 3B SET |
| 90584 | PRE-PLATE GO ELEMENT |
| 90585 | PRE-PLATE NO GO ELEMENT |
| 90984 | PRE-PLATE SET |
