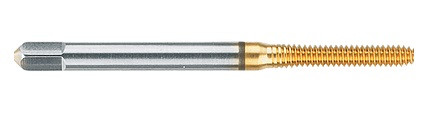

Balax - 11283-01T- 6-32 BH3 Tin Bott Form Tap USA Mfg - Pkg 12 Ea
Hover over image to zoom
)
Product Description
EDP#: 11283 - 01T
6-32 BH3 THREDFLOER
TINCOAT
Specifications
| Category | Thredfloers |
| Series | BOTTOM |
| # of Grooves | 1 |
| Chamfer | 2.5 |
| Blank Name | ANSI CNC |
| Overall Length | 2 |
| Thread Length | .435 |
| Neck Length | 11/16 |
| Shank Diameter | .141 |
| Square | .110 |
| Square Length | 3/16 |
Additional Information
| Catalog Page | View Catalog Page |
| Speed and Feed Info | Speed & Feed Info |
Pre-Tap Hole Sizes
| 55% Thread | 0.125 |
| 65% Thread | 0.123 |
| 75% Thread | 0.122 |
| 85% Thread | 0.121 |
Recommended Limits for 6-32 Thread
| CLASS 2B | H5, H6 |
| CLASS 3B | H3, H4 |
Possible Gage Members for 6-32 Thread
| 90110 | GO ELEMENT |
| 90112 | 2B NO GO ELEMENT |
| 90114 | 3B NO GO ELEMENT |
| 90116 | 2B SET |
| 90118 | 3B SET |
| 90584 | PRE-PLATE GO ELEMENT |
| 90585 | PRE-PLATE NO GO ELEMENT |
| 90984 | PRE-PLATE SET |
Inventory
| EDP# | In Stock | Description |
|---|---|---|
| EDP# 11283-010 | 150 | FT. PT. REMOVED, BRIGHT FINISH |
| EDP# 11283-011 | 80 | FT. PT. REMOVED, NIRIDE |
| EDP# 11283-013 | 6 | FT. PT. REMOVED, CHROME |
| EDP# 11283-01C | 19 | FT. PT. REMOVED, TICN |
