Balax 11045-01T - 5-40 BXB BH5 Form Tap Bottom Tincoat USA ** 1 Pc Price, Discounts start at 12 Ea**
Hover over image to zoom
)
Product Description

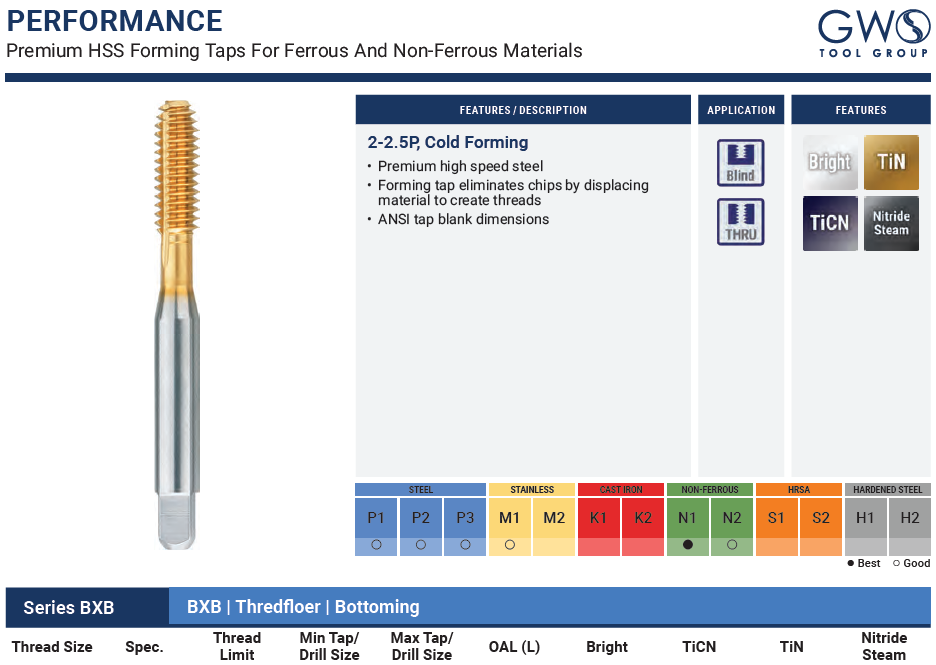

Balax 11045-01T - 5-40 BXB BH5 Form Tap Bottom Tincoat USA
Specifications
| Category | Thredfloers |
| Series | BOTTOM |
| # of Grooves | 0 |
| Chamfer | 2.5 |
| Blank Name | ANSI |
| Overall Length | 1-15/16 |
| Thread Length | .626 |
| Neck Length | 0 |
| Shank Diameter | .141 |
| Square | .110 |
| Square Length | 3/16 |

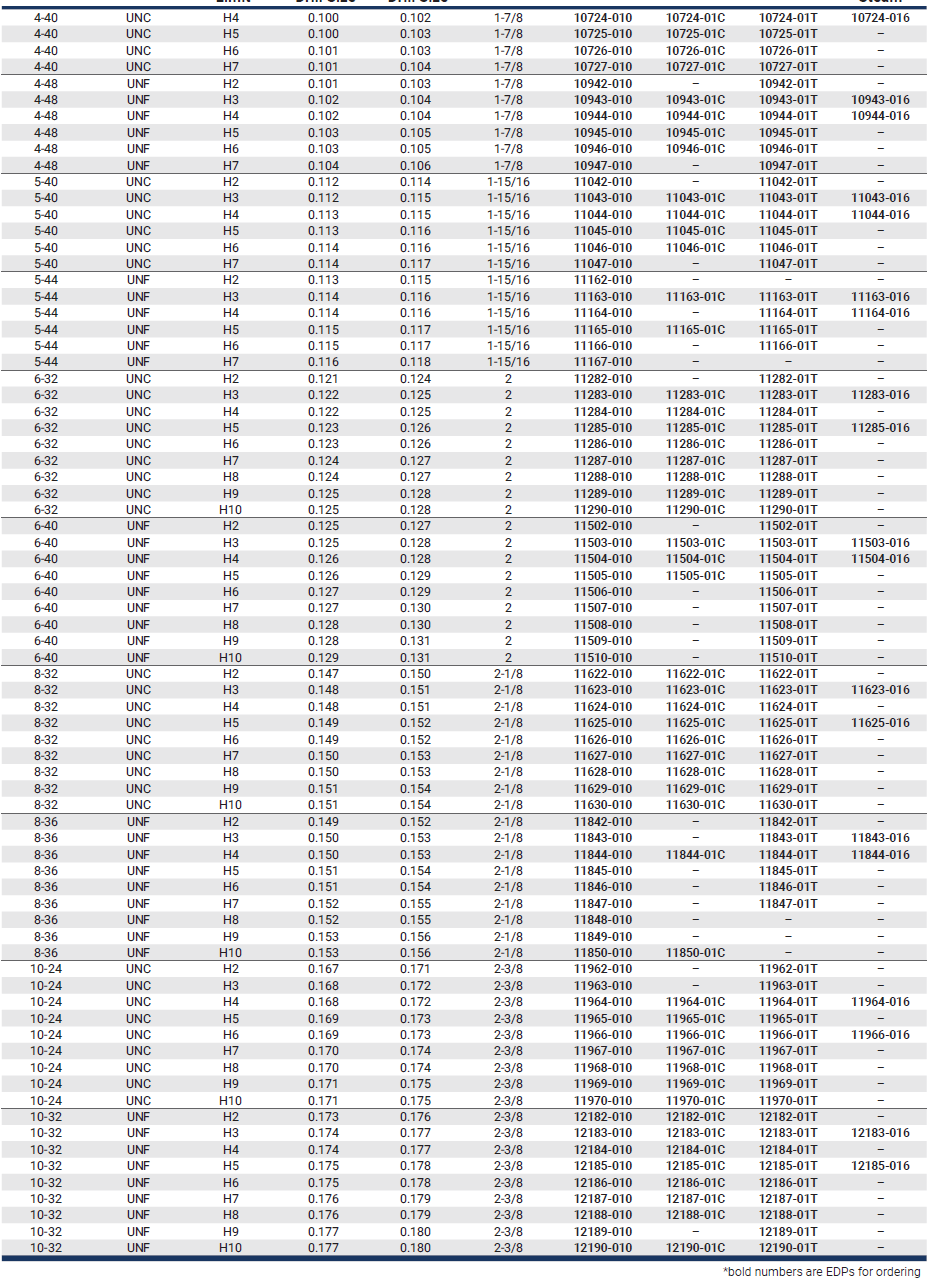

Pre-Tap Hole Sizes
| 55% Thread | 0.116 |
| 65% Thread | 0.115 |
| 75% Thread | 0.113 |
| 85% Thread | 0.113 |
Recommended Limits for 5-40 Thread
| CLASS 2B | H4, H5 |
| CLASS 3B | H3, H4 |
Possible Gage Members for 5-40 Thread
| 90090 | GO ELEMENT |
| 90092 | 2B NO GO ELEMENT |
| 90094 | 3B NO GO ELEMENT |
| 90096 | 2B SET |
| 90098 | 3B SET |
