Product Description

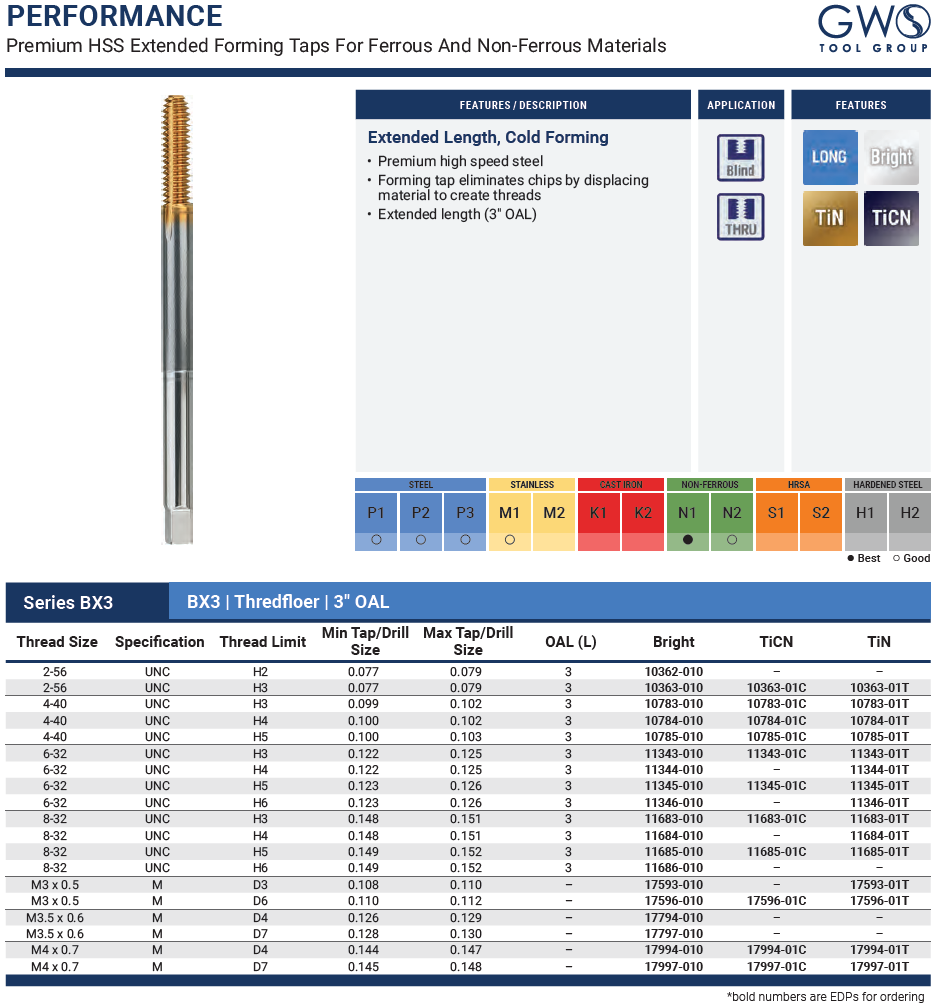

Balax 10783-010 - 4-40 BH3 BX3 Form Tap 3" OAL USA - 1 ea
Specifications
| Category | Thredfloers |
| Series | 3" OAL |
| # of Grooves | 0 |
| Chamfer | 2.5 |
| Blank Name | 3" OAL |
| Overall Length | 3 |
| Thread Length | .563 |
| Neck Length | 0 |
| Shank Diameter | .141 |
| Square | .110 |
| Square Length | 3/16 |
Pre-Tap Hole Sizes
| 55% Thread | 0.102 |
| 65% Thread | 0.101 |
| 75% Thread | 0.099 |
| 85% Thread | 0.099 |
Recommended Limits for 4-40 Thread
| CLASS 2B | H4, H5 |
| CLASS 3B | H3, H4 |
Possible Gage Members for 4-40 Thread
| 90070 | GO ELEMENT |
| 90072 | 2B NO GO ELEMENT |
| 90074 | 3B NO GO ELEMENT |
| 90076 | 2B SET |
| 90078 | 3B SET |
| 90582 | PRE-PLATE GO ELEMENT |
| 90583 | PRE-PLATE NO GO ELEMENT |
| 90982 | PRE-PLATE SET |
