Balax 10363-010 - 2-56 BH3 BX3 Form Tap Bottom 3" OAL Bright USA 1 Ea. *Discount at 10 Ea*
Hover over image to zoom
![Pin It](http://pinterest.com/pin/create/button/?url=https://cuttingtoolsolutions.us/balax-10363-010-2-56-bh3-bx3-form-tap-bottom-3-oal-bright-usa-1-ea-discount-at-10-ea/&media=https://cdn10.bigcommerce.com/s-xfwah5btob/products/3304/images/17702/Balax10363-010-cuttingtoolsolutions.us__67157.1771862064.1280.1280.png?c=2&description=Cutting Tool Solutions - Balax 10363-010 - 2-56 BH3 BX3 Form Tap Bottom 3" OAL Bright USA 1 Ea. *Discount at 10 Ea*, $79.75 (https://cuttingtoolsolutions.us/balax-10363-010-2-56-bh3-bx3-form-tap-bottom-3-oal-bright-usa-1-ea-discount-at-10-ea/))
Product Description

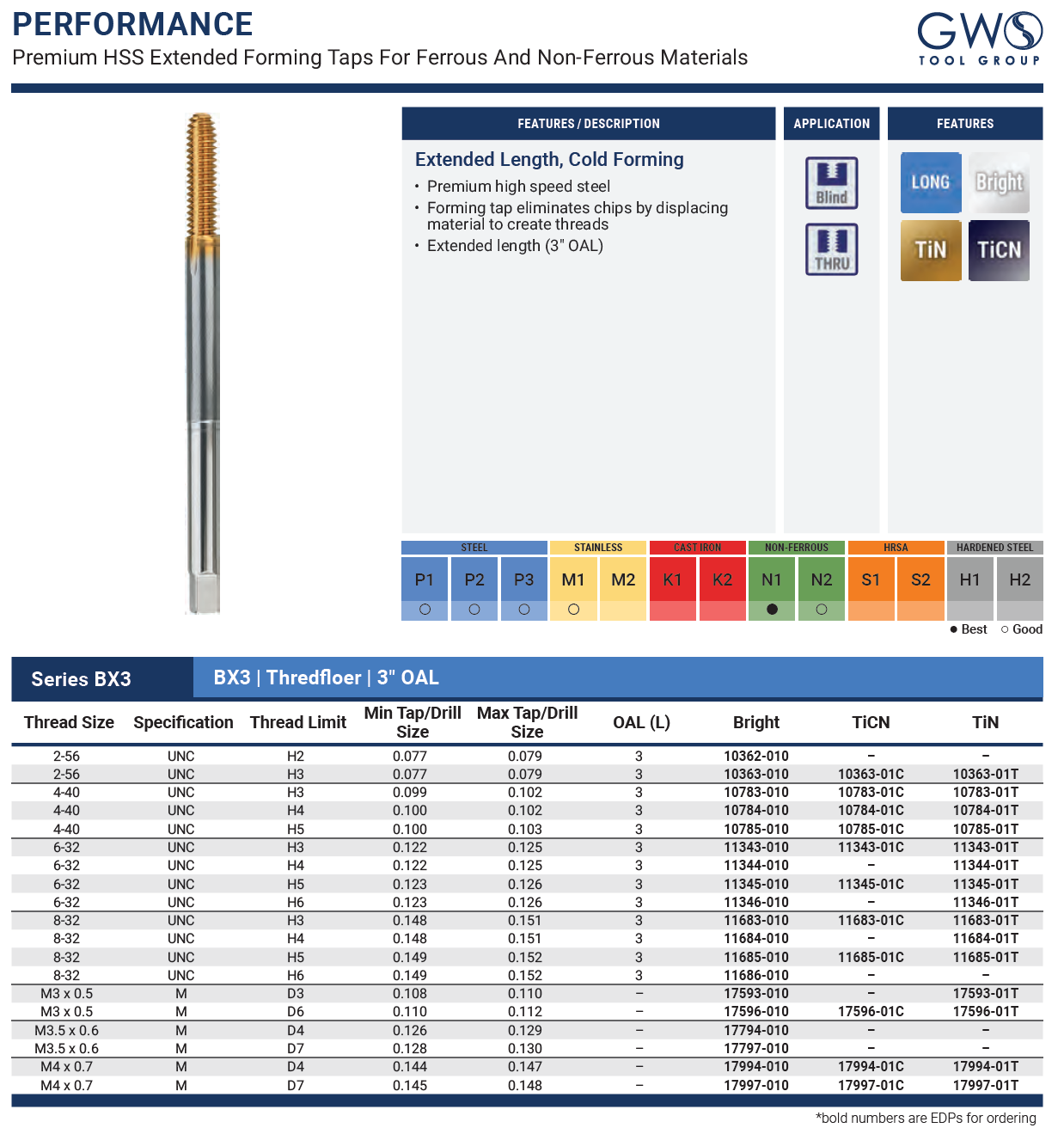

Balax 10363-010 - 2-56 BH3 BX3 Form Tap Bottom 3" OAL Bright USA 1 Ea. *Discount at 10 Ea*
BRIGHT FINISH
Specifications
| Category | Thredfloers |
| Series | 3" OAL |
| # of Grooves | 0 |
| Chamfer | 2.5 |
| Blank Name | 3" OAL |
| Overall Length | 3 |
| Thread Length | .438 |
| Neck Length | 0 |
| Shank Diameter | .141 |
| Square | .110 |
| Square Length | 3/16 |
Pre-Tap Hole Sizes
| 55% Thread | 0.079 |
| 65% Thread | 0.078 |
| 75% Thread | 0.077 |
| 85% Thread | 0.077 |
Recommended Limits for 2-56 Thread
| CLASS 2B | H3, H4 |
| CLASS 3B | H2, H3 |
Possible Gage Members for 2-56 Thread
| 90030 | GO ELEMENT |
| 90032 | 2B NO GO ELEMENT |
| 90034 | 3B NO GO ELEMENT |
| 90036 | 2B SET |
| 90038 | 3B SET |
| 90580 | PRE-PLATE GO ELEMENT |
| 90581 | PRE-PLATE NO GO ELEMENT |
| 90980 | PRE-PLATE SET |
