Balax 10127-010 - 1-64 BH7 BXB Form Tap Bottom Bright USA - Pkg 12 Ea
Hover over image to zoom
)
Product Description

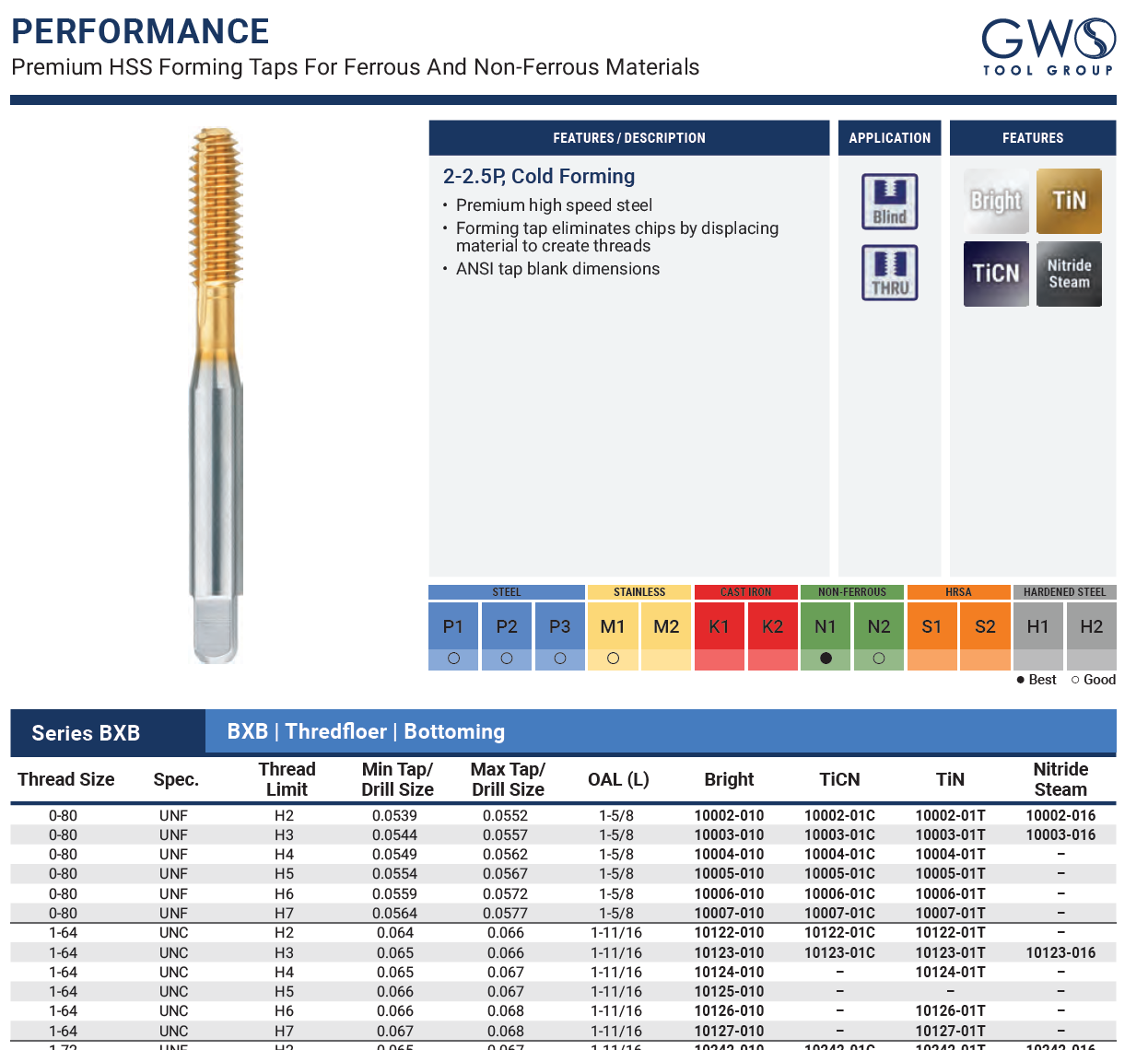

Balax 10127-010 - 1-64 BH7 BXB Form Tap Bottom Bright USA
Specifications
| Category | Thredfloers |
| Series | BOTTOM |
| # of Grooves | 0 |
| Chamfer | 2.5 |
| Blank Name | ANSI |
| Overall Length | 1-11/16 |
| Thread Length | .375 |
| Neck Length | 0 |
| Shank Diameter | .141 |
| Square | .110 |
| Square Length | 3/16 |
Pre-Tap Hole Sizes
| 55% Thread | 0.068 |
| 65% Thread | 0.067 |
| 75% Thread | 0.067 |
| 85% Thread | 0.066 |
Recommended Limits for 1-64 Thread
| CLASS 2B | H3, H4 |
| CLASS 3B | H2, H3 |
Possible Gage Members for 1-64 Thread
| 90010 | GO ELEMENT |
| 90012 | 2B NO GO ELEMENT |
| 90014 | 3B NO GO ELEMENT |
| 90016 | 2B SET |
| 90018 | 3B SET |
