Balax 01202-010 - 1.1mm x 0.25 BH2 BXM Miniature Form Tap Bright USA Pkg 12 Ea
Hover over image to zoom
)
Product Description

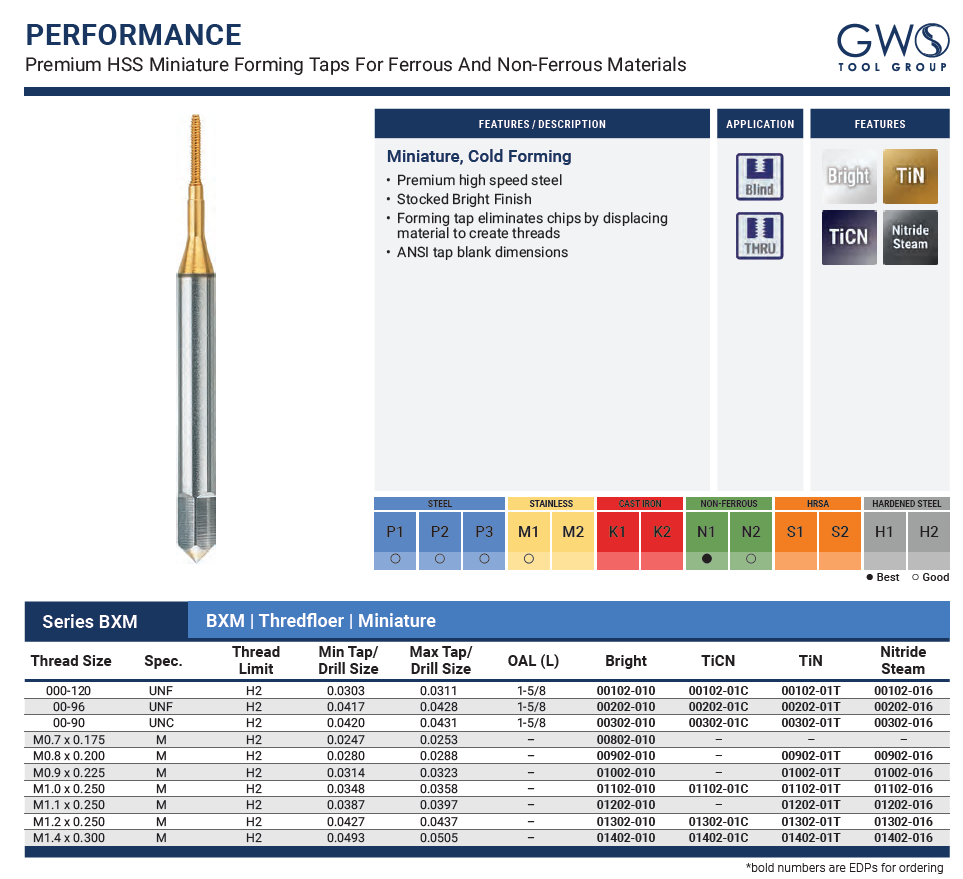

Balax 01202-010 - 1.1mm x 0.25 BH2 BXM Miniature Form Tap Bright USA Pkg 12 Ea
BRIGHT FINISH
In Stock
Specifications
| Category | Thredfloers |
| Series | MINIATURE |
| # of Grooves | 0 |
| Chamfer | 2.5 |
| Blank Name | ANSI |
| Overall Length | 1-5/8 |
| Thread Length | .250 |
| Neck Length | 0 |
| Shank Diameter | .141 |
| Square | .110 |
| Square Length | 3/16 |
Pre-Tap Hole Sizes
| 55% Thread | 0.0397 |
| 65% Thread | 0.0392 |
| 75% Thread | 0.0387 |
| 85% Thread | 0.0384 |
Recommended Limits for 1.1MMx.250 Thread
| CLASS UNM | H2 |
Possible Gage Members for 1.1MMx.250 Thread
| 90540 | MINIATURE GO ELEMENT |
| 90542 | MINIATURE NO GO ELEMENT |
| 90544 | MINIATURE SET |
