Balax - 13104-000 - 5/16-18 PH4 Thredfloer Form Tap Plug USA Mfg - Pkg 12 ea

Balax - 13104-000 - 5/16-18 PH4 Thredfloer Form Tap Plug USA Mfg - Pkg 12 ea

Hover over image to zoom

$21.00
SKU:
13104-000
Minimum Purchase:
12 unit(s)

 Product Description

 Product image

EDP#: 13104-000

5/16-18 PH2 THREDFLOER

BRIGHT FINISH

Specifications

Category Thredfloers
Series PLUG
# of Grooves 1
Chamfer 4
Blank Name ANSI CNC
Overall Length 2-23/32
Thread Length .830
Neck Length 1-1/8
Shank Diameter .318
Square .238
Square Length 3/8

Additional Information

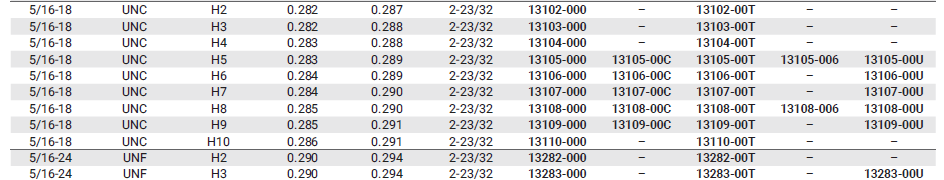

Catalog Page View Catalog Page
Speed and Feed Info Speed & Feed Info

Pre-Tap Hole Sizes

55% Thread 0.288
65% Thread 0.286
75% Thread 0.283
85% Thread 0.281

Recommended Limits for 5/16-18 Thread

CLASS 2B H7, H8, H9
CLASS 3B H5, H6

Possible Gage Members for 5/16-18 Thread

90190 GO ELEMENT
90192 2B NO GO ELEMENT
90194 3B NO GO ELEMENT
90196 2B SET
90198 3B SET

Inventory

EDP#In StockDescription
EDP# 13104-000 12 BRIGHT FINISH
