Balax - 12304-010 - 10-32 BH4 STI Form Tap USA Mfg - Pkg 12 ea

Balax - 12304-010 - 10-32 BH4 STI Form Tap USA Mfg - Pkg 12 ea

Hover over image to zoom

$24.75
SKU:
12304-010
Minimum Purchase:
12 unit(s)

 Product Description

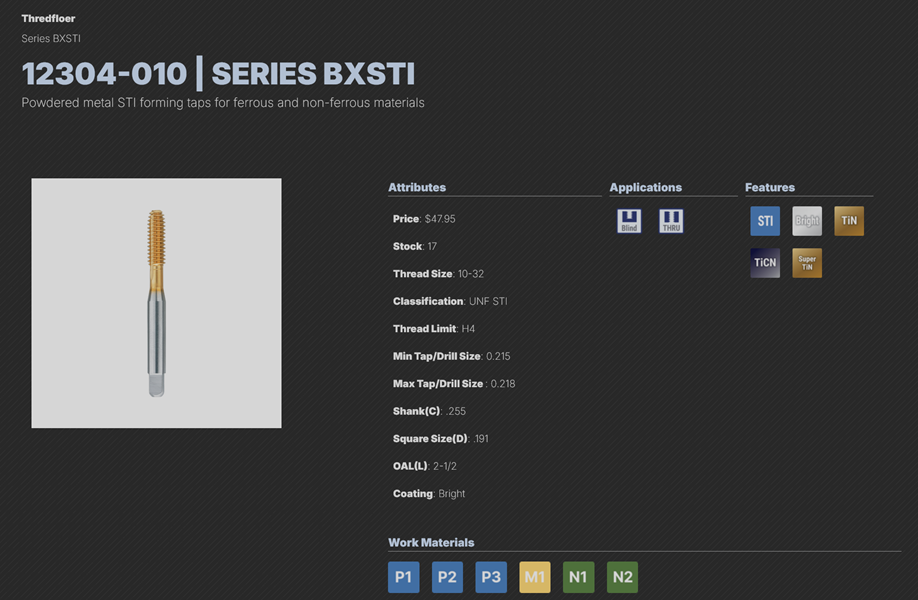

 Product image

EDP#: 12304 - 010

10-32 BH4 STI THREDFLOER

BRIGHT FINISH

Specifications

Category Thredfloers
Series STI
# of Grooves 1
Chamfer 2.5
Blank Name 1/4" ANSI CNC
Overall Length 2-1/2
Thread Length .750
Neck Length 1.0
Shank Diameter .255
Square .191
Square Length 5/16

Additional Information

Catalog Page View Catalog Page
Speed and Feed Info Speed & Feed Info

Pre-Tap Hole Sizes

55% Thread 0.218
65% Thread 0.216
75% Thread 0.215
85% Thread 0.214

Recommended Limits for 10-32 Thread

CLASS 2B STI H3, H4
CLASS 3B STI H2, H3

Possible Gage Members for 10-32 Thread

90510 STI GO ELEMENT
90512 STI 2B NO GO ELEMENT
90513 STI 3B NO GO ELEMENT
90514 STI 2B SET
90515 STI 3B SET

Inventory

EDP#In StockDescription
EDP# 12304-000 1 BRIGHT FINISH
EDP# 12304-010 150 FT. PT. REMOVED, BRIGHT FINISH
EDP# 12304-01C 2 FT. PT. REMOVED, TICN
EDP# 12304-01T 1 FT. PT. REMOVED, TIN
EDP# 12304-01U 12 FT. PT. REMOVED

Balax Logo.png

 Find Similar Products by Tag

 Find Similar Products by Category

 Product Reviews

This product hasn't received any reviews yet. Be the first to review this product!
