• IP65 water/dust protection (Series 395).

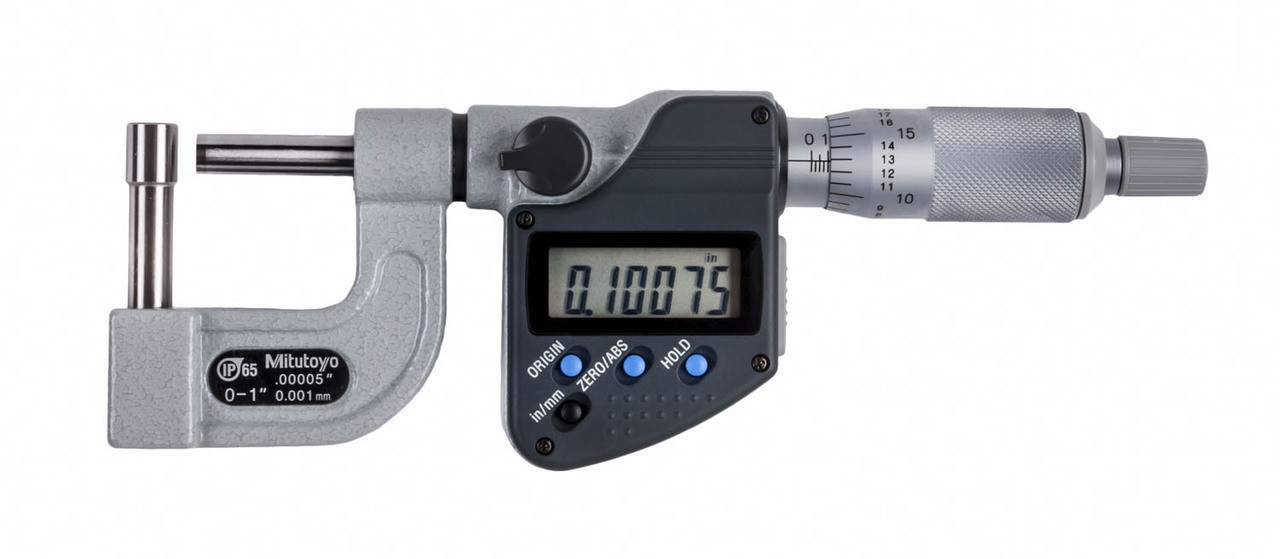

• Designed to measure the wall thickness of various tubing.
• The Tube Micrometers have two combinations of measuring faces (carbidetipped): spherical-flat type.
• Cylindrical anvils (perpendicular) are also available.
• With Ratchet Stop for constant force.
• With SPC output (Series 395).
• With digit counter (Series 295).
• With a standard bar except 0-25mm and 0-1” model.
• Supplied in fitted plastic case.



Technical Data

Accuracy: Refer to the list of specifications.
Resolution*: 0.001mm or .00005"/0.001mm
Graduation**: 0.01mm, .001" or .0001"
Flatness: 0.6ìm / .000024”
Display*: LCD
Battery*: SR44 (1 pc.), 938882
Battery life*: Approx. 1.2 years under normal use
Dust/Water protection level*: IP65
*Digital models **Analog models
Function of Digital Model
Origin-set, Zero-setting, Data hold, Data output, inch/mm
conversion (inch/mm models)
Alarm: Low voltage, Counting value composition error
Optional Accessories for Digital Model
05CZA662: SPC cable with data switch (1m / 40”)
05CZA663: SPC cable with data switch (2m / 80”)

Parts Break Down
