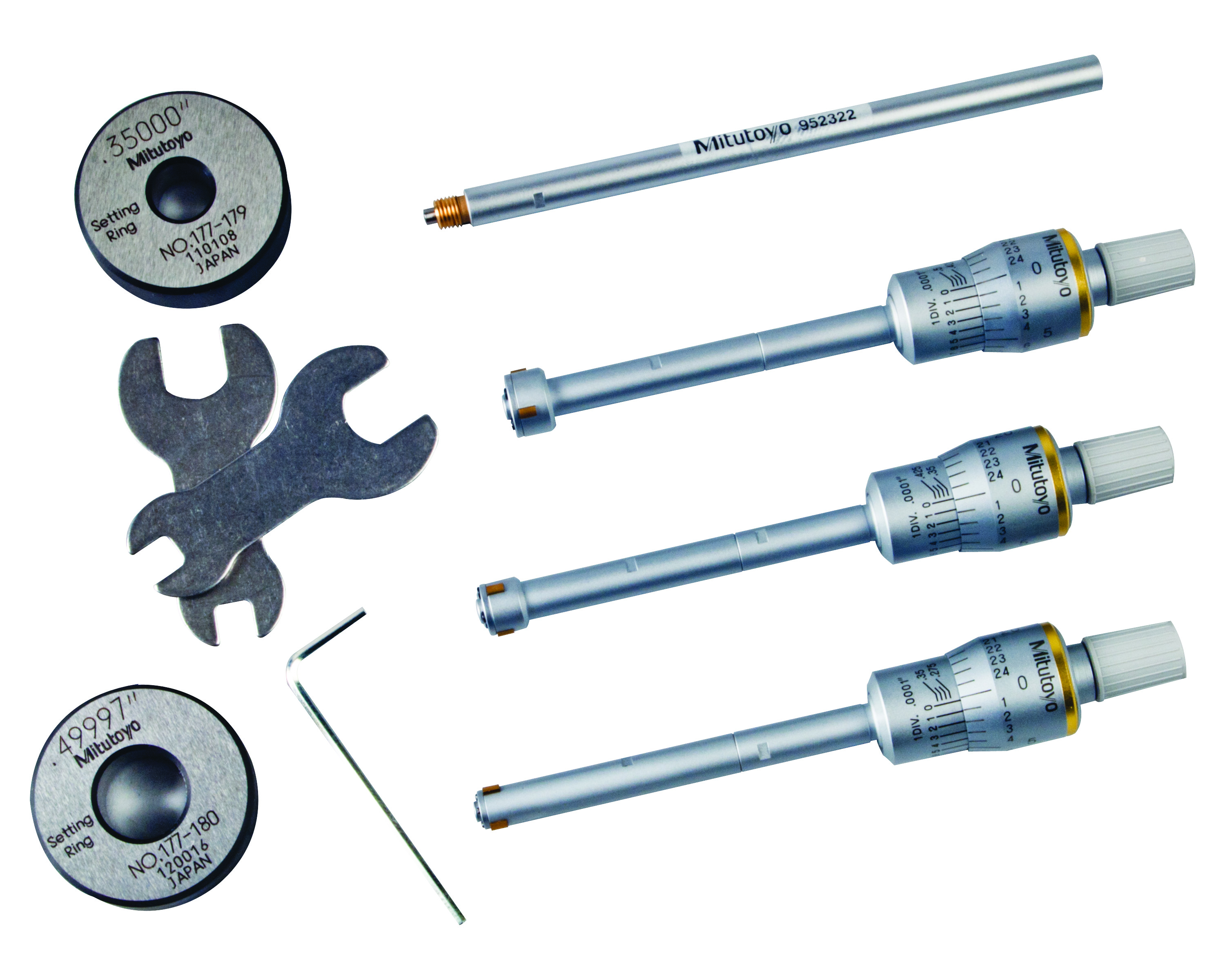

Mitutoyo - .275-.5" Holtest 8 PC Internal Micrometer Set w Tin coated Carb. Cont. Pts. 368-916 Free Shipping

Mitutoyo - .275-.5" Holtest 8 PC Internal Micrometer Set w Tin coated Carb. Cont. Pts. 368-916 Free Shipping

Hover over image to zoom

$2,149.00

 Product Description


Holtests - Series 368-Three Point/Two-Point Internal Micrometers





Series 368
Features
These Holtests are versatile, self-centering three-point internal micrometers for the accurate and efficient direct-measurement of internal diameters. Three anvils, evenly spaced at 120° apart, contact the internal wall surfaces and find true alignment with the axis of the bore for accurate ID measurement.

  • TiN-coated measuring contact points(over 6mm/.275" range models) provide excellent durability and impact resistance and allow the instrument to measure right to the bottom of a blind hole.
  • Highly durable because of carbide-tipped contact points (anvils).
  • Measurement can be taken closer to the bottom of the blind bore.
  • Can measure deep holes using an Extension rod (optional) which is available on models over 6mm (.275") measuring range.
  • With Ratchet Stop for constant force.
  • Setting Rings for zero point adjustment are optional.
  • Supplied in fitted plastic case up to 100mm / 4”. Over 100mm / 4” supplied in wooden case.
Technical Data

Graduation: 0.001mm, 0.005mm*,
.0001" or .0002"* (*over 12mm or .5” models)


Optional Accessories
952322: Extension rod 100mm / 3.94” For range 6-12mm / .275-.5” models
952621: Extension rod 150mm / 5.9” For range 12-20mm / .5" - .8” models
952622: Extension rod 150mm / 5.9” For range 20-50mm / .8" - 2” models
952623: Extension rod 150mm / 5.9” For range 50-300mm / 2"-12” models



Parts Break Down





Order No Range Ind Range Setting Rings Incld Remarks
368-916 .275-.5in .275-.35 in,.35-.425 in,.425-.5 in .35in DIA., .5in DIA. with extension rod
368-917 .5-.8in .5-.65 in,.65-.8 in .65in DIA. with extension rod/titanium coated contact points
368-918 .8-2in .8-1 in,1-1.2 in,1.2-1.6 in,1.6-2 in 1in DIA., 1.6in DIA. with extension rod/titanium coated contact points
368-919 2-4in 2-2.5 in,2.5-3 in,3-3.5 in,3.5-4 in 2.5in DIA., 3.5in DIA. with extension rod/titanium coated contact points
368-920 4-8in 4-5 in,5-6 in,6-7 in,7-8 in 5in DIA., 7in DIA. with extension rod/titanium coated contact points
368-926 .08-.12in .08-1 in,.1-.12 in .1in DIA. -
368-927 .12-.28in .12-.16 in,.16-.2 in,.2-.24 in,.24-.28 in .16in DIA., .24im DIA. -
Pages: 1
Inch Individual Inch Set Metric Individual Metric Set
