EXN06 - Non Coolant

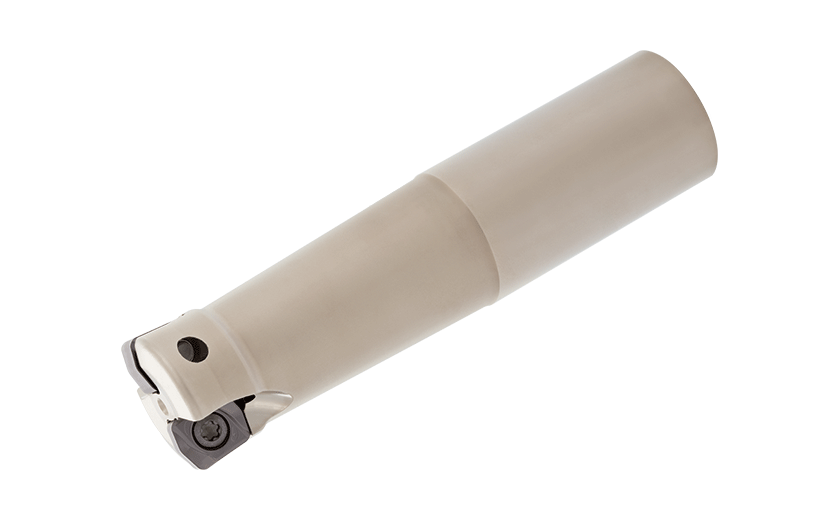

EXN06 : Super high feed milling endmills with double sided inserts with 4 edges
 |
 |

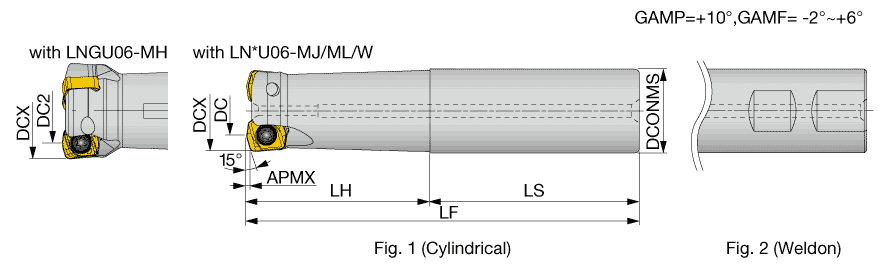

| GAMP: Rake angle axial , GAMF: Rake angle radial |
       |
 |
| Designation | Stock | CICT | APMX | DC | DC_2 | DCX | DCONMS | LS | LF | LH | KAPR | WT (lb) | MIID | MIID_2 | Air hole |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EXN06R125U0125W02 | Available | 2 | .059 | .7660 | .745 | 1.2500 | 1.250 | 2.281 | 5.281 | 3.000 | 15.0 | 1.54 | LNMU06X5ZER-MJ | LNGU06X5ZER-MH | with |
| EXN06R125U0125-02L | Available | 2 | .059 | .7660 | .745 | 1.2500 | 1.250 | 3.000 | 8.000 | 5.000 | 15.0 | 2.36 | LNMU06X5ZER-MJ | LNGU06X5ZER-MH | with |
| EXN06R150U0125W03 | Available | 3 | .059 | 1.0140 | .989 | 1.5000 | 1.250 | 2.281 | 5.781 | 3.500 | 15.0 | 1.83 | LNMU06X5ZER-MJ | LNGU06X5ZER-MH | with |
| EXN06R150U0125-03L | Available | 3 | .059 | 1.0140 | .989 | 1.5000 | 1.250 | 8.000 | 10.000 | 2.000 | 15.0 | 3.31 | LNMU06X5ZER-MJ | LNGU06X5ZER-MH | with |
