EXN03 - Coolant Through

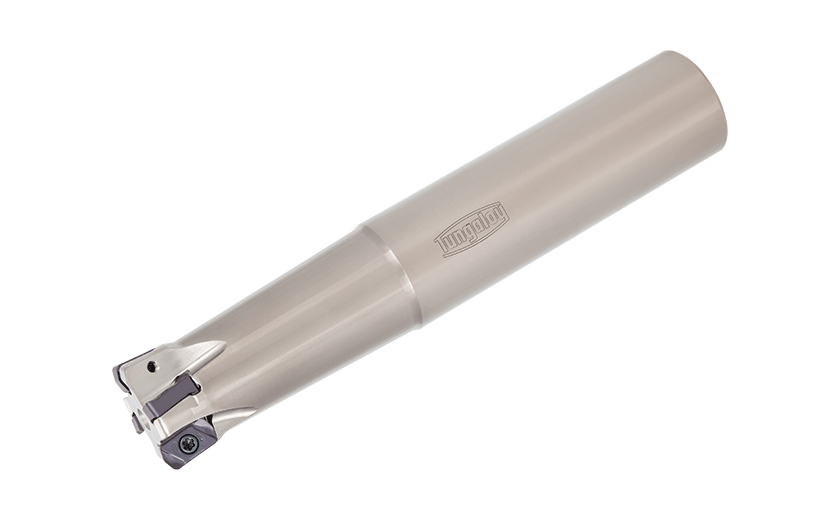

EXN03 : Super high feed milling endmills with double sided inserts with 4 edges (Center-through coolant)
 |
 |

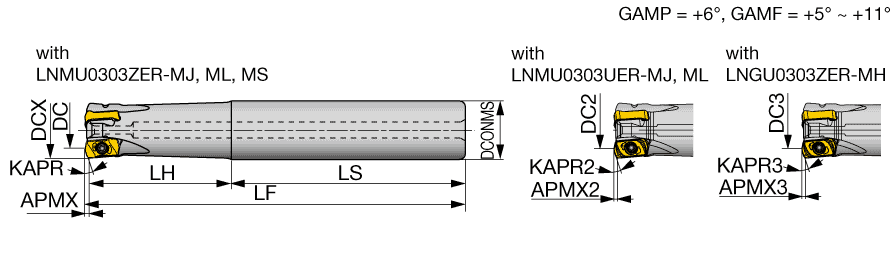

| GAMP: Rake angle axial , GAMF: Rake angle radial |
       |
 |
| Designation | Stock | CICT | APMX | DC | DC_2 | DCX | DCONMS | LS | LF | LH | KAPR | WT (lb) | MIID | MIID_2 | Air hole |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EXN03R062U0062-02 | Available | 2 | .039 | .3720 | .381 | .6250 | .625 | 2.750 | 4.000 | 1.250 | 15.0 | .31 | LNMU0303ZER-MJ | LNGU0303ZER-MH | with |
| EXN03R062U0062-02L | Available | 2 | .039 | .3720 | .381 | .6250 | .625 | 4.000 | 6.000 | 2.000 | 15.0 | .46 | LNMU0303ZER-MJ | LNGU0303ZER-MH | with |
| EXN03R068U0062-02 | Available | 2 | .039 | .4340 | .436 | .6880 | .625 | 2.750 | 4.000 | 1.250 | 17.0 | .31 | LNMU0303ZER-MJ | LNGU0303ZER-MH | with |
| EXN03R068U0062-02L | Available | 2 | .039 | .4340 | .436 | .6880 | .625 | 5.000 | 6.000 | 1.000 | 17.0 | .49 | LNMU0303ZER-MJ | LNGU0303ZER-MH | with |
| EXN03R075U0075-02 | Available | 2 | .039 | .4950 | .498 | .7500 | .750 | 3.000 | 5.000 | 2.000 | 17.0 | .55 | LNMU0303ZER-MJ | LNGU0303ZER-MH | with |
| EXN03R075U0075-03 | Available | 3 | .039 | .4950 | .498 | .7500 | .750 | 3.000 | 5.000 | 2.000 | 17.0 | .55 | LNMU0303ZER-MJ | LNGU0303ZER-MH | with |
| EXN03R075U0075-03L | Available | 3 | .039 | .4950 | .498 | .7500 | .750 | 3.000 | 6.500 | 3.500 | 17.0 | .71 | LNMU0303ZER-MJ | LNGU0303ZER-MH | with |
| EXN03R087U0075-02 | Available | 2 | .039 | .6210 | .623 | .8750 | .750 | 3.000 | 5.000 | 2.000 | 17.0 | .57 | LNMU0303ZER-MJ | LNGU0303ZER-MH | with |
| EXN03R087U0075-03 | Available | 3 | .039 | .6210 | .623 | .8750 | .750 | 3.000 | 5.000 | 2.000 | 17.0 | .57 | LNMU0303ZER-MJ | LNGU0303ZER-MH | with |
| EXN03R087U0075-03L | Available | 3 | .039 | .6210 | .623 | .8750 | .750 | 5.250 | 6.500 | 1.250 | 17.0 | .75 | LNMU0303ZER-MJ | LNGU0303ZER-MH | with |
| EXN03R100U0100-04 | Available | 4 | .039 | .7460 | .748 | 1.0000 | 1.000 | 3.000 | 5.500 | 2.500 | 17.0 | 1.08 | LNMU0303ZER-MJ | LNGU0303ZER-MH | with |
| EXN03R100U0100-04L | Available | 4 | .039 | .7460 | .748 | 1.0000 | 1.000 | 3.000 | 7.000 | 4.000 | 17.0 | 1.34 | LNMU0303ZER-MJ | LNGU0303ZER-MH | with |
| EXN03R100U0100-05 | Available | 5 | .039 | .7460 | .748 | 1.0000 | 1.000 | 3.000 | 5.500 | 2.500 | 17.0 | 1.08 | LNMU0303ZER-MJ | LNGU0303ZER-MH | with |
| EXN03R112U0100-04 | Available | 4 | .039 | .8710 | .872 | 1.1250 | 1.000 | 3.000 | 5.500 | 2.500 | 17.0 | 1.12 | LNMU0303ZER-MJ | LNGU0303ZER-MH | with |
| EXN03R112U0100-04L | Available | 4 | .039 | .8710 | .872 | 1.1250 | 1.000 | 5.500 | 7.000 | 1.500 | 17.0 | 1.46 | LNMU0303ZER-MJ | LNGU0303ZER-MH | with |
| EXN03R112U0100-05 | Available | 5 | .039 | .8710 | .872 | 1.1250 | 1.000 | 3.000 | 5.500 | 2.500 | 17.0 | 1.12 | LNMU0303ZER-MJ | LNGU0303ZER-MH | with |
| EXN03R125U0125-05 | Available | 5 | .039 | .9970 | .997 | 1.2500 | 1.250 | 3.000 | 6.000 | 3.000 | 17.0 | 1.87 | LNMU0303ZER-MJ | LNGU0303ZER-MH | with |
| EXN03R125U0125-05L | Available | 5 | .039 | .9970 | .997 | 1.2500 | 1.250 | 3.000 | 8.000 | 5.000 | 17.0 | 2.43 | LNMU0303ZER-MJ | LNGU0303ZER-MH | with |
| EXN03R125U0125-06 | Available | 6 | .039 | .9970 | .997 | 1.2500 | 1.250 | 3.000 | 6.000 | 3.000 | 17.0 | 1.85 | LNMU0303ZER-MJ | LNGU0303ZER-MH | with |
